Summary of Contents for Chauvet DJ DMX-RT4
- Page 1 User Manual...
- Page 2 Edition Notes The DMX-RT4 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the DMX-RT4 as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and DMX are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Delete Show....................... Trigger Event...................... Stop TR Event....................Enter Mass Storage ................... Lock Device......................Device Settings ....................Save Configuration..................... Load Configuration..................... Default Setting....................5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................DMX-RT4 User Manual Rev. 1... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. DMX-RT4 User Manual Rev. 1... -
Page 5: Safety Notes
♦ Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. DMX-RT4 User Manual Rev. 1... -

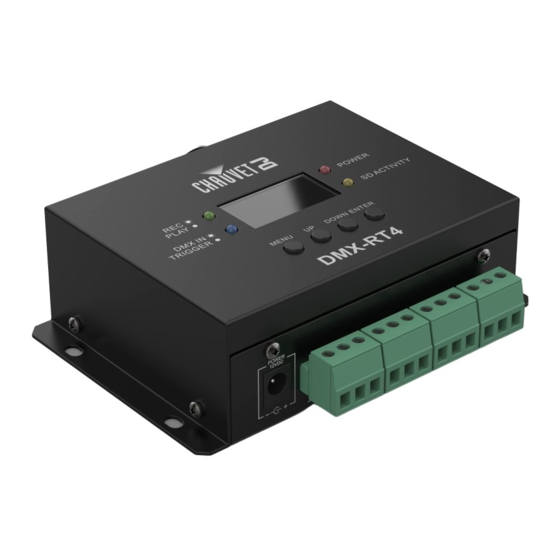

Page 6: Introduction
Blinking DMX input detected USB port Steady Power ON Status indicator lights Blinking N/A Mounting points Steady SD activity in progress Menu buttons Yellow Blinking SD activity in progress OLED Screen DC power in Phoenix connectors/ triggers DMX-RT4 User Manual Rev. 1... -
Page 7: Product Dimensions
Introduction Product Dimensions 4.8 in 122 mm 3.2 in 81 mm 1.5 in 38 mm DMX-RT4 User Manual Rev. 1... -
Page 8: Setup
3. Setup AC Power The DMX-RT4 has an external power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Triggers
Give triggers higher or lower priority over others • Enabled or disable each trigger Trigger Diagram Triggers For further information on how to use/program triggers with the DMX-RT4, see the Standalone Configuration section of this manual. DMX-RT4 User Manual Rev. 1... -
Page 10: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The DMX-RT4 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 11: Operation
Press to scroll down the list of options or to find a lower value <ENTER> Press to activate a menu option or a selected value Menu Map Refer to the DMX-RT4 product page on www.chauvetdj.com for the latest menu map. Main Level... - Page 12 Manually stops trigger 4 (When trigger 4 is playing) – 1. Connect Allows user to transfer audio/ update to PC firmware Return 8. Enter MassStorage Continue 2. Format Format SD card/ return SD Card Return DMX-RT4 User Manual Rev. 1...
- Page 13 (upon successful backup) Restore 12. Load – Selects configuration to be loaded Configuration 13. Default Restores ALL settings to default Setting If the user forgets the preset manual lock PIN, the master unlock PIN is 996. DMX-RT4 User Manual Rev. 1...
-
Page 14: Mass Storage
Operation Mass Storage It is possible to copy, backup, and transfer show files to and from the DMX-RT4 using the USB-C connection. To enter Mass Storage: 1. Connect the DMX-RT4 to a PC with a USB-C cable. 2. Select Enter MassStorage on the device. -
Page 15: Standalone Configuration
DMX signals from the controller. Play Audio To select an audio file to play on the DMX-RT4, follow the instructions below. 1. Press <MENU> repeatedly until Play Audio shows on the display. 2. Press <ENTER>. -
Page 16: Record Show
3. Use <UP> or <DOWN> to select the desired show. 4. Press <ENTER>. 5. Select Delete Show. 6. Press <ENTER>. 7. Use <UP> or <DOWN> to select Continue (to delete the selected show), or Return (to return to the main menu). DMX-RT4 User Manual Rev. 1... -
Page 17: Trigger Event
1. Select a Trigger from the Trigger Event menu. 2. Use <UP> or <DOWN> to select MP3. 3. Press <ENTER>. 4. Use <UP> or <DOWN> to select Once (to play once) or Loop (to play repeatedly). 5. Press <ENTER>. DMX-RT4 User Manual Rev. 1... - Page 18 2. Use <UP> or <DOWN> to select Save. 3. Press <ENTER>. To cancel parameters for a selected trigger: 1. Select a Trigger from the Trigger Event menu. 2. Use <UP> or <DOWN> to select Cancel. 3. Press <ENTER>. DMX-RT4 User Manual Rev. 1...
-
Page 19: Stop Tr Event
5. Use <UP> or <DOWN> to select Continue (to format SD Card) or Return (to return to the previous menu). 6. Press <ENTER>. Lock Device To set a PIN to unlock the DMX-RT4: 1. Press <MENU> repeatedly until Lock Device shows on the display. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to select PIN. -
Page 20: Device Settings
2. Press <ENTER>. 3. Use <UP> or <DOWN> to select Device Label, DMX Trigger Option, Display Option, or Version. 4. Press <ENTER>. To set the device label on the timeout screen of the DMX-RT4: 1. Navigate to the Device Settings menu 2. -
Page 21: Save Configuration
5. Use <UP> or <DOWN> to select Restore or Del. 6. Press <ENTER>. Default Setting To restore all settings on the DMX-RT4 tool their original default settings: 1. Press <MENU> repeatedly until Default Setting shows on the display. 2. Press <ENTER>. -
Page 22: Maintenance
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue. 6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. DMX-RT4 User Manual Rev. 1... -
Page 23: Technical Specifications
Memory Onboard 32 GB Audio 32-320 kps 8 or 16bit Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector 3-pin XLR Ordering Product Name Item Code UPC Number DMX-RT4 09082001 781462223496 DMX-RT4 User Manual Rev. 1... -
Page 24: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. DMX-RT4 User Manual Rev. 1...
