Reliable F3Res44 Manual

UL Listed Residential Sprinkler
Coverage area up to 16 ft. x 20 ft.
(4.9m x 6.1m)
Features
1. Available in Ordinary, 155°F (68°C), or Intermediate,
175°F (79°C), temperature classification.
2. Flush, recessed, and extended installation options.
3. Standard inlet with 1-inch NPT threads. Optional inlets
with 3/4-inch NPT, ISO 7-R1 or ISO 7-R3/4 threads.
4. Standard escutcheon version is available in lengths
from 2" to 24" (51mm to 610mm) in 1/4" (6.35mm)
increments.
5. HB style and F2 recessed versions are available in
lengths from 3-1/2" to 24" (89mm to 610mm) in 1/4"
(6.35mm) increments.
Approvals & Listings
1. Listed by Underwriters Laboratories and Certified for
Canada (cULus) as a Residential sprinkler. UL Guide
Number VKKW, Residential Automatic Sprinklers.
Patents
Model F3Res44 Dry sprinklers may be covered by one or
more of the following patents:
U.S. 7,353,882
Application
The Model F3Res44 Dry sprinkler is a cULus Listed
Residential sprinkler intended for use in accordance with
NFPA 13, NFPA 13R, or NFPA 13D. The Model F3Res44 Dry
sprinkler is cULus Listed for use in residential occupancies
and residential portions of any occupancy, where permitted
by NFPA 13, NFPA 13R, or NFPA 13D. For NFPA 13R and
NFPA 13D applications, the design flow and pressure shall
not be less than the minimum flow and pressure specified
in the Listed Design Criteria table in this Bulletin. For NFPA
13 applications, the design density shall be a minimum of
0.1 gpm/sf (4.1 mm/min), but in no case shall the flow and
pressure be less than the minimum flow and pressure specified
in the Listed Design Criteria table in this Bulletin. See Bulletin
140, Residential Sprinkler Design and Installation Guide, for
additional guidance on hydraulic design requirements.
The Model F3Res44 Dry sprinkler is typically used in
situations where a wet-pipe sprinkler system in a temperature-
controlled space is used to protect an adjacent space that
is subject to freezing temperatures. The sprinkler must be
installed on a wet-pipe sprinkler system.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F3Res44 Dry (SIN RA5231)
K4.4 (63 metric)
Residential Dry
Horizontal Sidewall Sprinkler

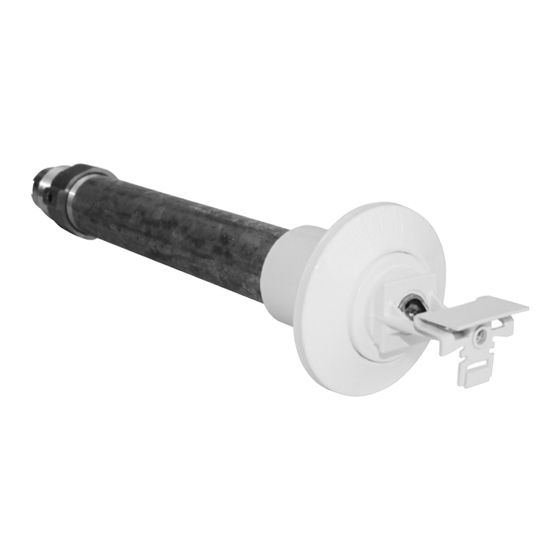

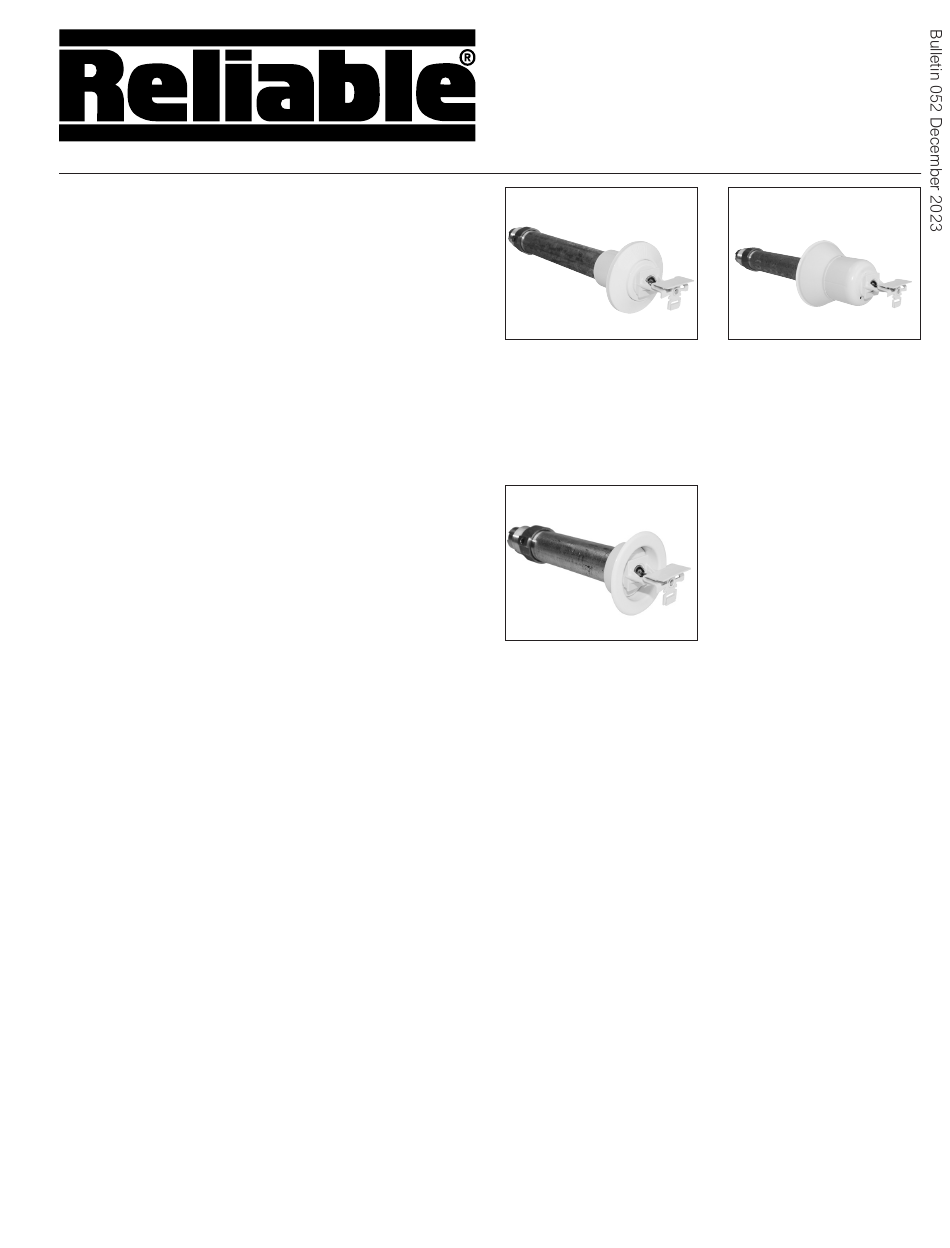

Fig. 1
Model F3Res44 Dry
sprinkler with standard
escutcheon
Fig. 3
Model F3Res44 Dry
sprinkler with Model F2
recessed escutcheon
Product Description
The Reliable Model F3Res44 Dry sprinkler is a Dry Horizontal
Sidewall sprinkler, where the sealing washer is located at
the inlet end of the sprinkler assembly. The position of the
sealing washer is controlled by a fluid-filled glass bulb thermal
element at the opposite end of the sprinkler assembly. The
sprinkler is installed with the thermal element in a protected
space that may be subject to freezing temperatures and the
inlet orifice located in a heated area that is separated from
the protected space. Operation of thermal element allows
the sealing washer to move out of the inlet orifice admitting
water from the supply piping. The sprinkler uses a fast-
response thermal element with an Ordinary, 155°F (69°C), or
Intermediate, 175°F (79°C), temperature classification.
The Model F3Res44 Dry Sprinkler is listed for surface-
mount installation (standard escutcheon), recessed installa-
tion (F2 escutcheon) and extended installation (HB escutch-
eon). The standard escutcheon includes up to 1-1/2-inch (38
mm) of adjustment and extends the base of the wrench boss
of the sprinkler up to 2 inches (51 mm) beyond the surface of
Bulletin 052 December 2023
Fig. 2
Model F3Res44 Dry
sprinkler with Model HB
extended escutcheon
