Features
1. Available in the following configurations:
•
Pendent with standard escutcheon
•
Pendent with Model HB extended escutcheon
•
Pendent with Model FP recessed escutcheon
•
Concealed Pendent with Model CCP cover plate.
•
Horizontal Sidewall with Standard escutcheon
•
Horizontal Sidewall with Model HB extended es-
cutcheon
•
Horizontal Sidewall with Model FP recessed escutch-
eon
2. Available with 1" NPT or ISO7-1R1 inlet fitting.
3. Sprinklers, escutcheons, and cover plates are available
in a wide variety of standard and special application fin-
ishes.
4. White polyester and black polyester finish sprinklers are
cULus Listed as Corrosion Resistant.
Product Description
Model F3QR80 Dry sprinklers are quick-response, standard
coverage sprinklers with a nominal K-Factor of 8.0 (115 metric).
Model F3QR80 Dry sprinklers all use a 3 mm glass bulb operat-
ing element. See the Temperature Ratings table in this Bulletin
for available temperature ratings. Model F3QR80 Dry sprinklers
are intended for installation on wet-pipe, dry-pipe, or preaction
sprinkler systems in accordance with NFPA 13.
Model F3QR80 Dry sprinklers are available with a variety of
escutcheon options as illustrated in Figs. 1 through 3 and Figs.
5 through 7. In addition, Model F3QR80 Dry Pendent sprinklers
are also available with the Model CCP conical concealed cover
plate as illustrated in Fig. 4. Available sprinkler, escutcheon, and
cover plate finishes are identified in the Finishes table in this Bul-
letin. The Model FP escutcheon, and Model CCP cover plate
are the only recessed escutcheons and cover plate listed for
use with Model F3QR80 Dry sprinklers; the use of any other
recessed escutcheon or cover plate with Model F3QR80 Dry
sprinklers will void all guarantees, warranties, listings and ap-
provals.
Inlet fittings are available with 1" NPT or ISO 7-1R1, threads.
See the Available Configurations, Listings, and Approvals
table in this Bulletin for further information on Model F3QR80
Dry sprinklers.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

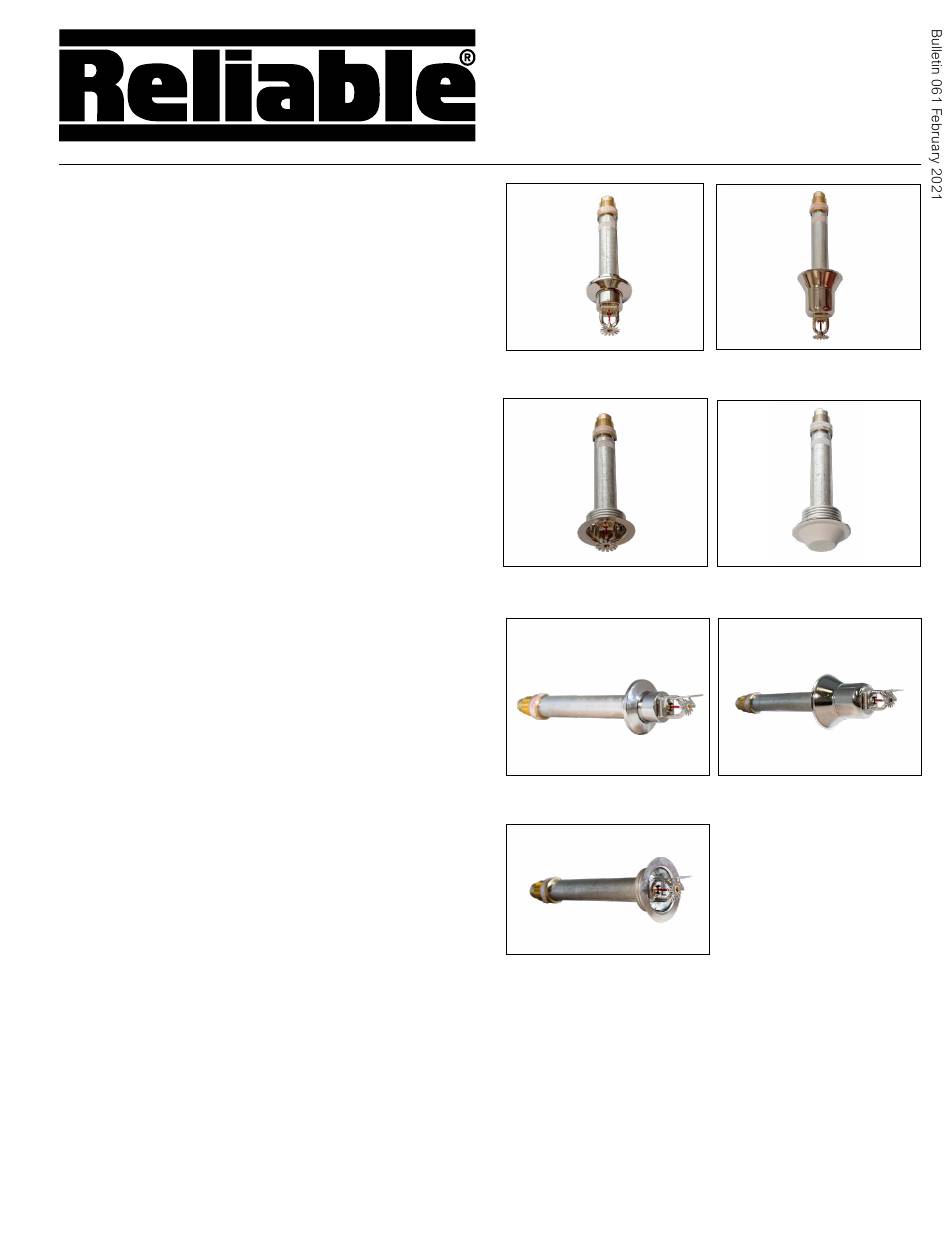

Model F3QR80 Dry
K8.0 (115 metric)
Quick-Response,
Standard Spray Sprinklers
Standard Escutcheon
(See Fig. 1)
FP Recessed Escutcheon
(See Fig. 3)
Horizontal Sidewall
(See Fig. 5)
Recessed FP
Horizontal Sidewall
(See Fig. 7)
Bulletin 061 February 2021
HB Escutcheon
(See Fig. 2)
CCP Cover Plate
(See Fig. 4)
Horizontal Sidewall / HB
(See Fig. 6)
Advertisement
Table of Contents
Related Manuals for Reliable F3QR80 Dry Pendent
Summary of Contents for Reliable F3QR80 Dry Pendent
- Page 1 Inlet fittings are available with 1” NPT or ISO 7-1R1, threads. See the Available Configurations, Listings, and Approvals Recessed FP table in this Bulletin for further information on Model F3QR80 Horizontal Sidewall Dry sprinklers. (See Fig. 7) Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523...
-
Page 2: Technical Data
Available Configurations, Listings, and Approvals Sprinkler Escutcheon or Available Length Listings and Inlet Sprinkler Identification Model Cover Plate (See Figs. 1-7) Approvals Threads Number (SIN) Standard 2” to 36” Escutcheon (50 to 914 mm) 1” NPT F3QR80 Dry HB Extended Escutcheon cULus, NYC RA6112 Pendent... - Page 3 Model F3QR80 Dry Pendent Sprinkler with Standard Escutcheon (SIN RA6112) “A” Dim. 2” to 36” (51mm to 914mm) in 1/4” (6mm) increments Fig. 1 Note: The sprinkler can protrudes ¼” when escutcheon is in nominal position. Escutcheon adjustment provides -¼” (-6mm) to +1¼” (+32mm) “A” dimen-...
- Page 4 Model F3QR80 Dry Pendent Sprinkler with Model HB Extended Escutcheon (SIN RA6112) “A” Dim. 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 2 Note: The sprinkler can protrudes 1¼” when escutcheon is in nominal position. Escutcheon adjustment provides -½” (-12.7mm) to +½” (+12.7mm) “A”...
- Page 5 Model F3QR80 Dry Pendent Sprinkler with Model FP Recessed Escutcheon (SIN RA6112) “A” Dim. ” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 3 Note: Do not install the Model F3QR80 Dry Pendent sprinkler with the Model FP escutcheon in ceilings which have positive pressure in the space above.
- Page 6 “A” Dim. ” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 4 Note: Do not install the Model F3QR80 Dry Pendent sprinkler with the Model CCP cover plate in ceilings which have positive pressure in the space above.
- Page 7 Model F3QR80 Dry Horizontal Sidewall Sprinkler with Standard Escutcheon (SIN RA6132) 2” to 48” (51mm to 1219mm) in 1/4” (6mm) increments for 1” connections or 2” “A” Dim. to 36” (51mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig.
- Page 8 Model F3QR80 Dry Horizontal Sidewall Sprinkler with Model HB Escutcheon (SIN RA6132) ” to 48” (89mm to 1219mm) in 1/4” (6mm) increments for 1” connections or “A” Dim. 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig.
- Page 9 Model F3QR80 Dry Horizontal Sidewall Sprinkler with Model FP Recessed Escutcheon (SIN RA6132) ” to 48” (89mm to 1219mm) in 1/4” (6mm) increments for 1” connections or “A” Dim. 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig.
- Page 10 Fig. 8...
- Page 11 Fig. 9...
- Page 12 Fig. 10 - Model F3R Wrench Fig. 11 - Model XLO2 Wrench...
- Page 13 Fig. 12...
-
Page 14: Installation Instructions
(see Figure 9). 2. Apply pipe joint compound or PTFE tape to the male When used on dry pipe systems, Reliable Model F3QR80 dry threads of the sprinkler’s inlet fitting. pendent sprinklers MUST ONLY BE installed in the outlets of 3. -
Page 15: Installation Data
The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for almost 100 years. Manufactured by Reliable Automatic Sprinkler Co., Inc.
