Reliable F3-80 Dry Manual

Features
1. Available in the following configurations:
• Pendent with standard escutcheon
• Pendent with Model HB extended escutcheon
• Pendent with Model FP recessed escutcheon
• Concealed Pendent with Model CCP cover plate
• Horizontal Sidewall with Standard escutcheon
• Horizontal Sidewall with Model HB extended es-
cutcheon
• Horizontal Sidewall with Model FP recessed es-
cutcheon
2. Available with 1" NPT or ISO7-1R1 inlet fitting.
3. Sprinklers, escutcheons, and cover plates are avail-
able in a wide variety of standard and special appli-
cation finishes.
4. White polyester and black polyester finish sprinklers
are cULus Listed as Corrosion Resistant.
Product Description

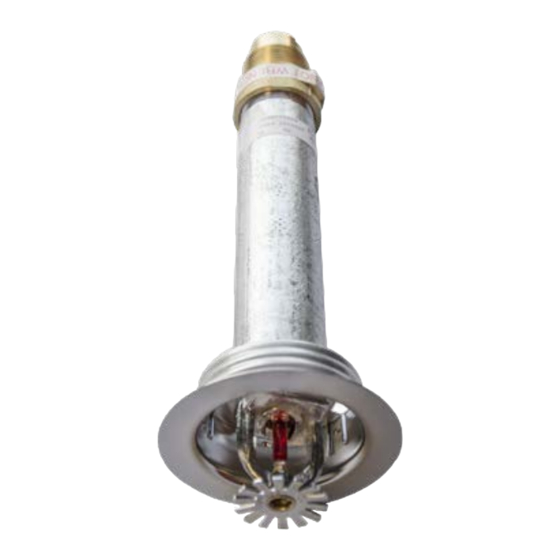

Model F3-80 Dry sprinklers are standard-response,
standard coverage sprinklers with a nominal K-Factor of
8.0 (115 metric). Model F3-80 Dry sprinklers all use a 5
mm glass bulb operating element. See the Temperature
Ratings table in this Bulletin for available temperature rat-
ings. Model F3-80 Dry sprinklers are intended for installa-
tion on wet-pipe, dry-pipe, or preaction sprinkler systems
in accordance with NFPA 13.
Model F3-80 Dry sprinklers are available with a variety
of escutcheon options as illustrated in Figs. 1 through
3 and Figs. 5 through 7. In addition, Model F3-80 Dry
Pendent sprinklers are also available with the Model CCP
conical concealed cover plate as illustrated in Fig. 4.
Available sprinkler, escutcheon, and cover plate finishes
are identified in the Finishes table in this Bulletin. The
Model FP escutcheon, and Model CCP cover plate are
the only recessed escutcheons and cover plate listed for
use with Model F3-80 Dry sprinklers; the use of any other
recessed escutcheon or cover plate with Model F3-80
Dry sprinklers will void all guarantees, warranties, listings
and approvals.
Inlet fittings are available with 1" NPT or ISO 7-1R1
threads.
See the Available Configurations, Listings, and Approv-
als table in this Bulletin for further information on Model
F3-80 Dry sprinklers.
