Features
1. Available in the following configurations:
•
Pendent with standard escutcheon
•
Pendent with Model HB extended escutcheon
•
Pendent with Model FP recessed escutcheon
•
Concealed Pendent with Model CCP cover plate
•
Horizontal Sidewall with Standard escutcheon
•
Horizontal Sidewall with Model HB extended escutch-
eon
•
Horizontal Sidewall with Model FP recessed escutch-
eon
2. Available with 1" NPT or ISO7-1R1 inlet fitting.
3. Sprinklers, escutcheons, and cover plates are available
in a wide variety of standard and special application fin-
ishes.
4. White polyester and black polyester finish sprinklers are
cULus Listed as Corrosion Resistant.
Product Description

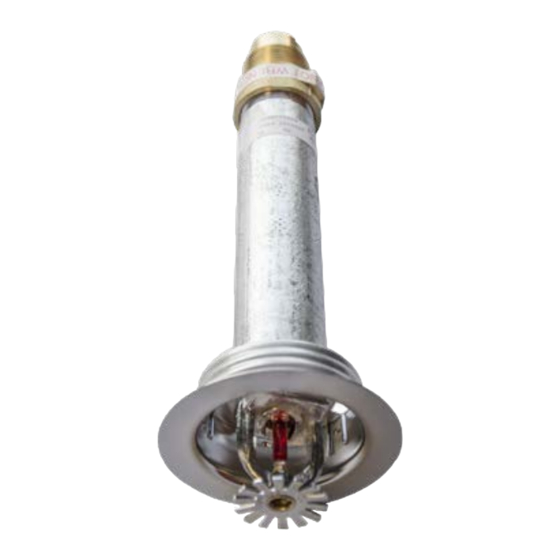

Model F3-80 Dry sprinklers are standard-response, stan-
dard coverage sprinklers with a nominal K-Factor of 8.0
(115 metric). Model F3-80 Dry sprinklers all use a 5 mm
glass bulb operating element. See the Temperature Rat-
ings table in this Bulletin for available temperature ratings.
Model F3-80 Dry sprinklers are intended for installation on
wet-pipe, dry-pipe, or preaction sprinkler systems in accor-
dance with NFPA 13.
Model F3-80 Dry sprinklers are available with a variety
of escutcheon options as illustrated in Figs. 1 through 3
and Figs. 5 through 7. In addition, Model F3-80 Dry Pen-
dent sprinklers are also available with the Model CCP coni-
cal concealed cover plate as illustrated in Fig. 4. Available
sprinkler, escutcheon, and cover plate finishes are identified
in the Finishes table in this Bulletin. The Model FP escutch-
eon, and Model CCP cover plate are the only recessed es-
cutcheons and cover plate listed for use with Model F3-80
Dry sprinklers; the use of any other recessed escutcheon
or cover plate with Model F3-80 Dry sprinklers will void all
guarantees, warranties, listings and approvals.
Inlet fittings are available with 1" NPT or ISO 7-1R1
threads.
See the Available Configurations, Listings, and Approvals
table in this Bulletin for further information on Model F3-80
Dry sprinklers.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

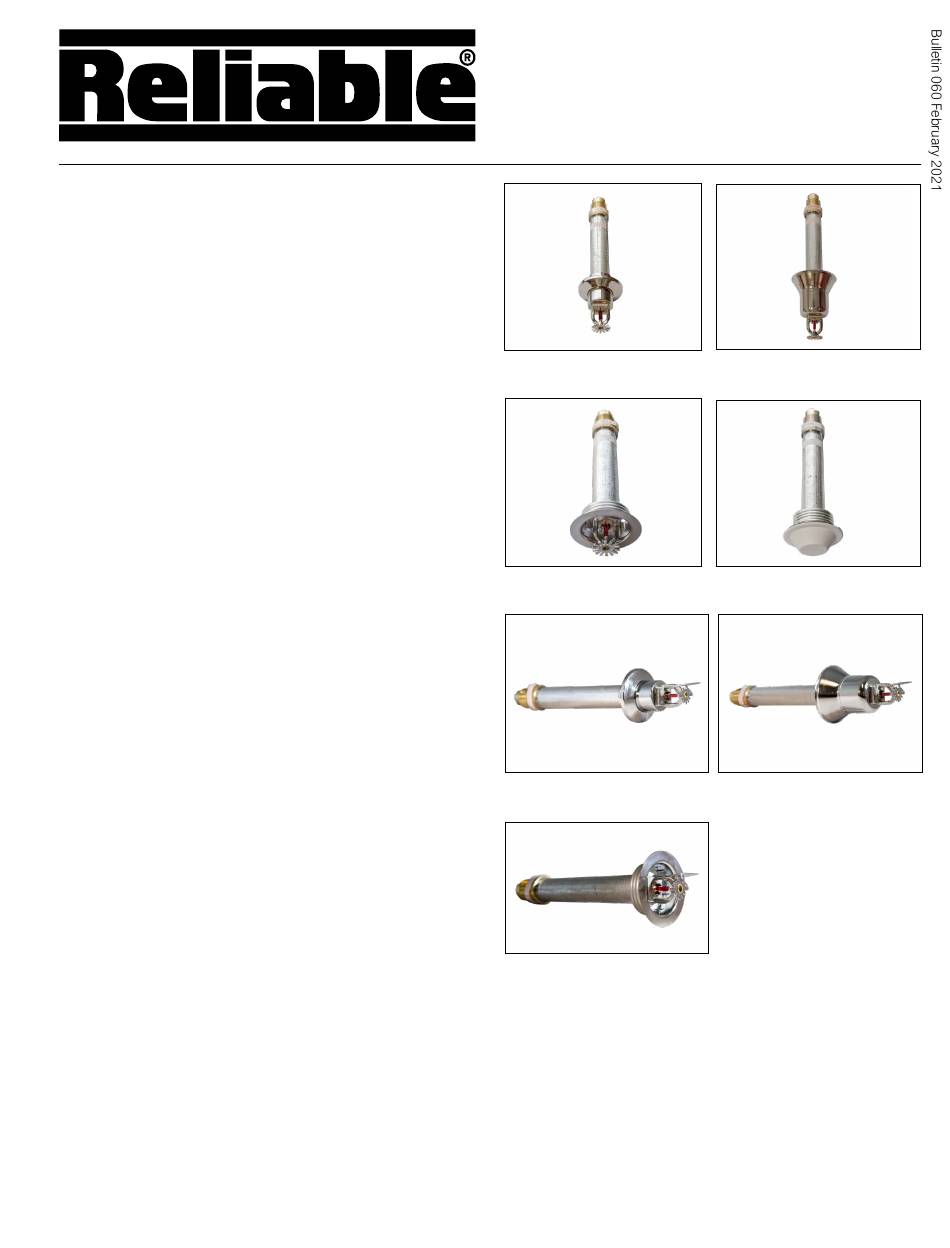

Model F3-80 Dry
K8.0 (115 metric)
Standard-Response,
Standard Spray Sprinklers
Standard Escutcheon
(See Fig. 1)
FP Recessed Escutcheon
(See Fig. 3)
Horizontal Sidewall
(See Fig. 5)
Recessed FP
Horizontal Sidewall
(See Fig. 7)
Bulletin 060 February 2021
HB Escutcheon
(See Fig. 2)
CCP Cover Plate
(See Fig. 4)
Horizontal Sidewall / HB
(See Fig. 6)
Advertisement
Table of Contents
Related Manuals for Reliable F3-80 Dry
Summary of Contents for Reliable F3-80 Dry
- Page 1 Recessed FP threads. Horizontal Sidewall See the Available Configurations, Listings, and Approvals (See Fig. 7) table in this Bulletin for further information on Model F3-80 Dry sprinklers. Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523...
-
Page 2: Technical Data
(See Figs. 1 - 7) Approvals Threads Number (SIN) Standard 2” to 36” Escutcheon (50 to 914 mm) 1” NPT F3-80 Dry HB Extended Escutcheon cULus, NYC RA6012 Pendent 3-1/2” to 36” ISO7-1R1 FP Recessed Escutcheon (90 to 914 mm) CCP Cover Plate 2”... - Page 3 Model F3-80 Dry Pendent Sprinkler with Standard Escutcheon (SIN RA6012) “A” Dim. 2” to 36” (51mm to 914mm) in 1/4” (6mm) increments Fig. 1 Note: The sprinkler can protrudes ¼” when escutcheon is in nominal position. Escutcheon adjustment provides -¼” (-6mm) to +1¼” (+32mm) “A” dimen-...
- Page 4 Model F3-80 Dry Pendent Sprinkler with Model HB Extended Escutcheon (SIN RA6012) “A” Dim. 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 2 Note: The sprinkler can protrudes 1¼” when escutcheon is in nominal position. Escutcheon adjustment provides -½” (-12.7mm) to +½” (+12.7mm) “A”...
- Page 5 Model F3-80 Dry Pendent Sprinkler with Model FP Recessed Escutcheon (SIN RA6012) “A” Dim. ” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 3 Note: Do not install the Model F3-80 Dry Pendent sprinkler with the Model FP escutcheon in ceilings which have positive pressure in the space above.
- Page 6 “A” Dim. ” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 4 Note: Do not install the Model F3-80 Dry Pendent sprinkler with the Model CCP cover plate in ceilings which have positive pressure in the space above.
- Page 7 Model F3-80 Dry Horizontal Sidewall Sprinkler with Standard Escutcheon (SIN RA6032) 2” to 48” (51mm to 1219mm) in 1/4” (6mm) increments for 1” connections or 2” “A” Dim. to 36” (51mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig.
- Page 8 Model F3-80 Dry Horizontal Sidewall Sprinkler with Model HB Escutcheon (SIN RA6032) ” to 48” (89mm to 1219mm) in 1/4” (6mm) increments for 1” connections or “A” Dim. 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig.
- Page 9 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig. 7 Note: Do not install the Model F3-80 Dry Horizontal Sidewall sprinkler with the Model FP escutcheon in walls which are positively pressurized with respect to the protected space.
- Page 10 Fig. 8...
- Page 11 Fig. 9...
- Page 12 Fig. 10 - Model F3R Wrench Fig. 11 - Model XLO2 Wrench...
- Page 13 Fig. 12...
-
Page 14: Installation Instructions
(see Figure 9). (Item #8 in Fig. 12). Do NOT wrench any other por- When used on dry pipe systems, Reliable Model F3-80 dry tion of the sprinkler assembly. A pipe wrench can in- pendent sprinklers MUST ONLY BE installed in the outlets of... -
Page 15: Installation Data
The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for almost 100 years. Manufactured by Reliable Automatic Sprinkler Co., Inc.
