Quick-response, standard spray sprinklers
Hide thumbs Also See for F3QR80 Dry Pendent:

Advertisement

Quick Links

Features
1. Available in the following configurations:
• Pendent with standard escutcheon
• Pendent with Model HB extended escutcheon
• Pendent with Model FP recessed escutcheon
• Concealed Pendent with Model CCP cover plate.
• Horizontal Sidewall with Standard escutcheon
• Horizontal Sidewall with Model HB extended es-
cutcheon
• Horizontal Sidewall with Model FP recessed es-
cutcheon
2. Available with 1" NPT or ISO7-1R1 inlet fitting.
3. Sprinklers, escutcheons, and cover plates are avail-
able in a wide variety of standard and special appli-
cation finishes.
4. White polyester and black polyester finish sprinklers
are cULus Listed as Corrosion Resistant.
Product Description

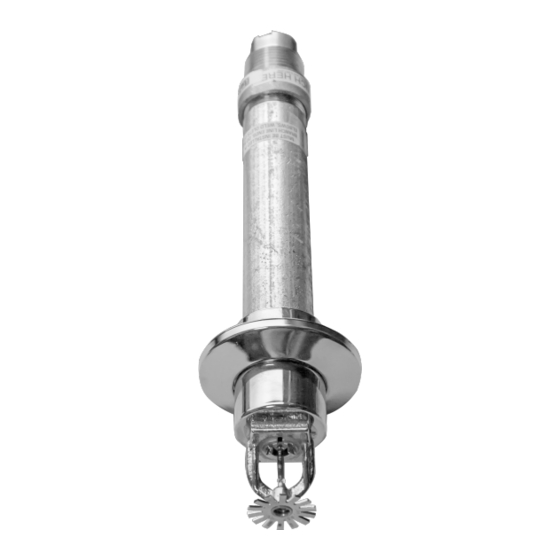

Model F3QR80 Dry sprinklers are quick-response, stan-
dard coverage sprinklers with a nominal K-Factor of 8.0
(115 metric). Model F3QR80 Dry sprinklers all use a 3 mm
glass bulb operating element. See the Temperature Rat-
ings table in this Bulletin for available temperature ratings.
Model F3QR80 Dry sprinklers are intended for installation
on wet-pipe, dry-pipe, or preaction sprinkler systems in ac-
cordance with NFPA 13.
Model F3QR80 Dry sprinklers are available with a vari-
ety of escutcheon options as illustrated in Figs. 1 through 3
and Figs. 5 through 7. In addition, Model F3QR80 Dry Pen-
dent sprinklers are also available with the Model CCP coni-
cal concealed cover plate as illustrated in Fig. 4. Available
sprinkler, escutcheon, and cover plate finishes are identified
in the Finishes table in this Bulletin. The Model FP escutch-
eon, and Model CCP cover plate are the only recessed es-
cutcheons and cover plate listed for use with Model F3QR80
Dry sprinklers; the use of any other recessed escutcheon or
cover plate with Model F3QR80 Dry sprinklers will void all
guarantees, warranties, listings and approvals.
Inlet fittings are available with 1" NPT or ISO 7-1R1, threads.
See the Available Configurations, Listings, and Approvals
table in this Bulletin for further information on Model F3QR80
Dry sprinklers.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

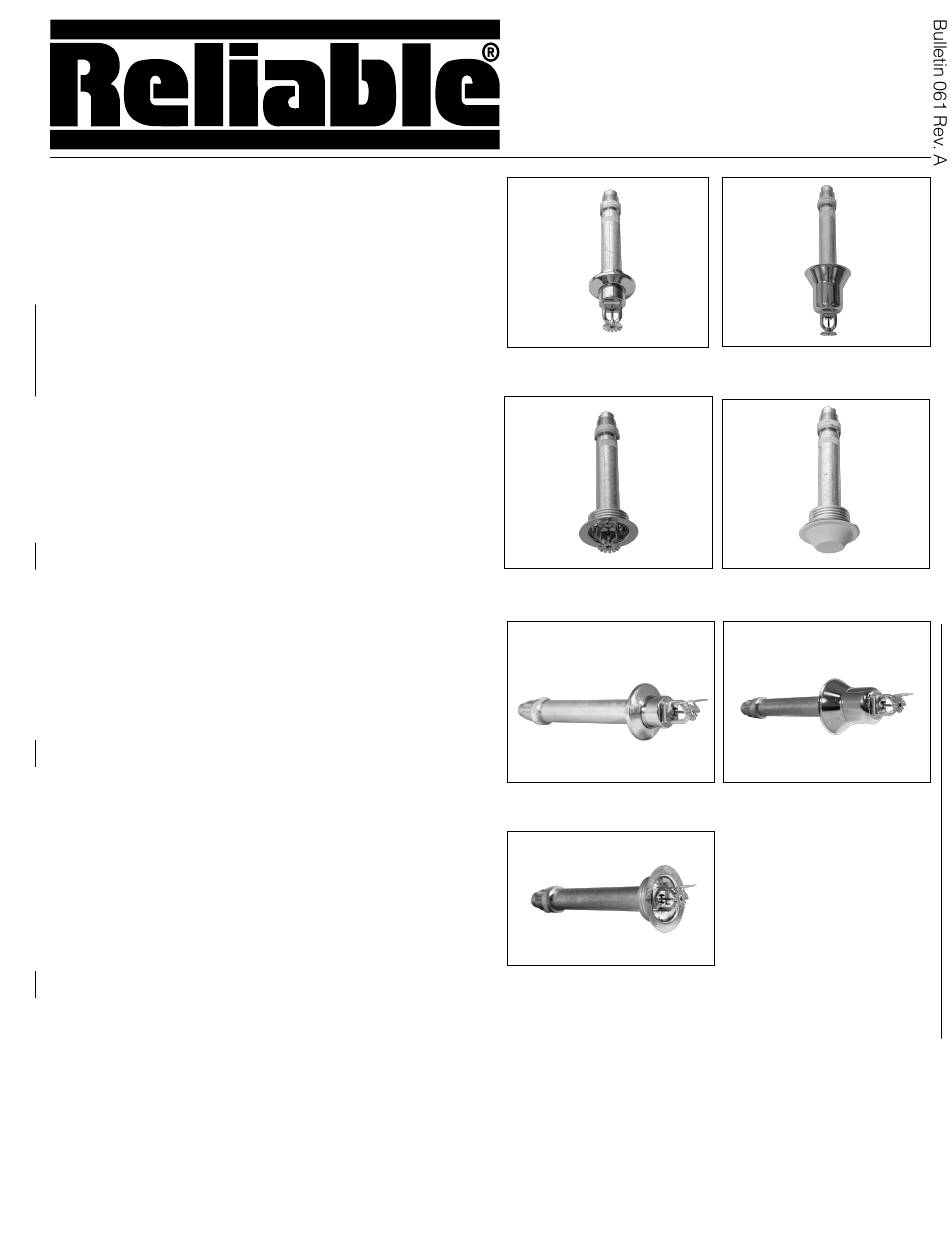

Model F3QR80 Dry
K8.0 (115 metric)
Quick-Response,
Standard Spray Sprinklers
Standard Escutcheon
(See Fig. 1)
FP Recessed Escutcheon
(See Fig. 3)
Horizontal Sidewall
(See Fig. 5)
Recessed FP
Horizontal Sidewall
(See Fig. 7)
Bulletin 061 Rev. A
HB Escutcheon
(See Fig. 2)
CCP Cover Plate
(See Fig. 4)
Horizontal Sidewall / HB
(See Fig. 6)

Advertisement

loading
Need help?

Need help?

Do you have a question about the F3QR80 Dry Pendent and is the answer not in the manual?

Questions and answers

Summary of Contents for Reliable F3QR80 Dry Pendent

  • Page 1 Inlet fittings are available with 1” NPT or ISO 7-1R1, threads. Recessed FP See the Available Configurations, Listings, and Approvals Horizontal Sidewall table in this Bulletin for further information on Model F3QR80 (See Fig. 7) Dry sprinklers. Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523...
  • Page 2: Technical Data

    Available Configurations, Listings, and Approvals Sprinkler Escutcheon or Available Length Listings and Inlet Sprinkler Identification Model Cover Plate (See Figs. 1-7) Approvals Threads Number (SIN) Standard 2” to 36” Escutcheon (50 to 914 mm) 1” NPT F3QR80 Dry HB Extended Escutcheon cULus, NYC RA6112 Pendent...
  • Page 3 Model F3QR80 Dry Pendent Sprinkler with Standard Escutcheon (SIN RA6112) “A” Dim. 2” to 36” (51mm to 914mm) in 1/4” (6mm) increments Fig. 1 Note: The sprinkler can protrudes ¼” when escutcheon is in nominal position. Escutcheon adjustment provides -¼” (-6mm) to +1¼” (+32mm) “A”...
  • Page 4 Model F3QR80 Dry Pendent Sprinkler with Model HB Extended Escutcheon (SIN RA6112) “A” Dim. 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 2 Note: The sprinkler can protrudes 1¼” when escutcheon is in nominal position. Escutcheon adjustment provides -½” (-12.7mm) to +½” (+12.7mm)
  • Page 5 Model F3QR80 Dry Pendent Sprinkler with Model FP Recessed Escutcheon (SIN RA6112) “A” Dim. ” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 3 Note: Do not install the Model F3QR80 Dry Pendent sprinkler with the Model FP escutcheon in ceilings which have positive pressure in the space above.
  • Page 6 “A” Dim. ” to 36” (89mm to 914mm) in 1/4” (6mm) increments Fig. 4 Note: Do not install the Model F3QR80 Dry Pendent sprinkler with the Model CCP cover plate in ceilings which have positive pressure in the space above.
  • Page 7 Model F3QR80 Dry Horizontal Sidewall Sprinkler with Standard Escutcheon (SIN RA6132) 2” to 48” (51mm to 1219mm) in 1/4” (6mm) increments for 1” connections or “A” Dim. 2” to 36” (51mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig.
  • Page 8 Model F3QR80 Dry Horizontal Sidewall Sprinkler with Model HB Escutcheon (SIN RA6132) ” to 48” (89mm to 1219mm) in 1/4” (6mm) increments for 1” connections or “A” Dim. 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig.
  • Page 9 Model F3QR80 Dry Horizontal Sidewall Sprinkler with Model FP Recessed Escutcheon (SIN RA6132) ” to 48” (89mm to 1219mm) in 1/4” (6mm) increments for 1” connections or “A” Dim. 3½” to 36” (89mm to 914mm) in 1/4” (6mm) increments for 3/4” connections Fig.
  • Page 10 Fig. 8...
  • Page 11 Fig. 9...
  • Page 12 Fig. 10 - Model F3 or Model F3R Wrench Fig. 11 - Model XLO2 Wrench...
  • Page 13 ITEM # DESCRIPTION MATERIAL SPECIFICATION FRAME BRASS PER UNS C83600 DEFLECTOR BRONZE PER UNS C51000 LOAD SCREW BRASS PER UNS C22000 SEAT ADAPTOR BRASS ALLOY PER UNS C36000 BULB INSERT COPPER ALLOY PER UNS C31400 GLASS BULB GLASS W/GLYCERIN SOLUTION ORIFICE ADAPTOR BRASS ALLOY PER UNS C36000 OUTER TUBE...
  • Page 14: Installation Instructions

    Installation Instructions care should be taken to prevent damage to the sprin- Model F3QR80 Dry sprinklers must only be installed in the kler. The sprinkler is then tightened into the pipe fitting following fittings: to achieve a leak free connection. The recommended 1.
  • Page 15: Installation Data

    The Model F3QR80 Dry Sprinklers should be inspected Specify: and the sprinkler system maintained in accordance with 1. Sprinkler: [Model F3QR80 Dry Pendent SIN RA6112] NFPA 25. Do not remove the factory applied thermally sen- [Model F3QR80 Dry Horizontal Sidewall SIN RA6132] sitive wax fillet between the bulb supporting cup and the 2.
  • Page 16 The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for almost 100 years. Manufactured by Reliable Automatic Sprinkler Co., Inc.
