SPL1204 User Manual
V1.4
Updated by 2023-18-07
1 / 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPL1204 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skypatrol SPL1204

Summary of Contents for Skypatrol SPL1204

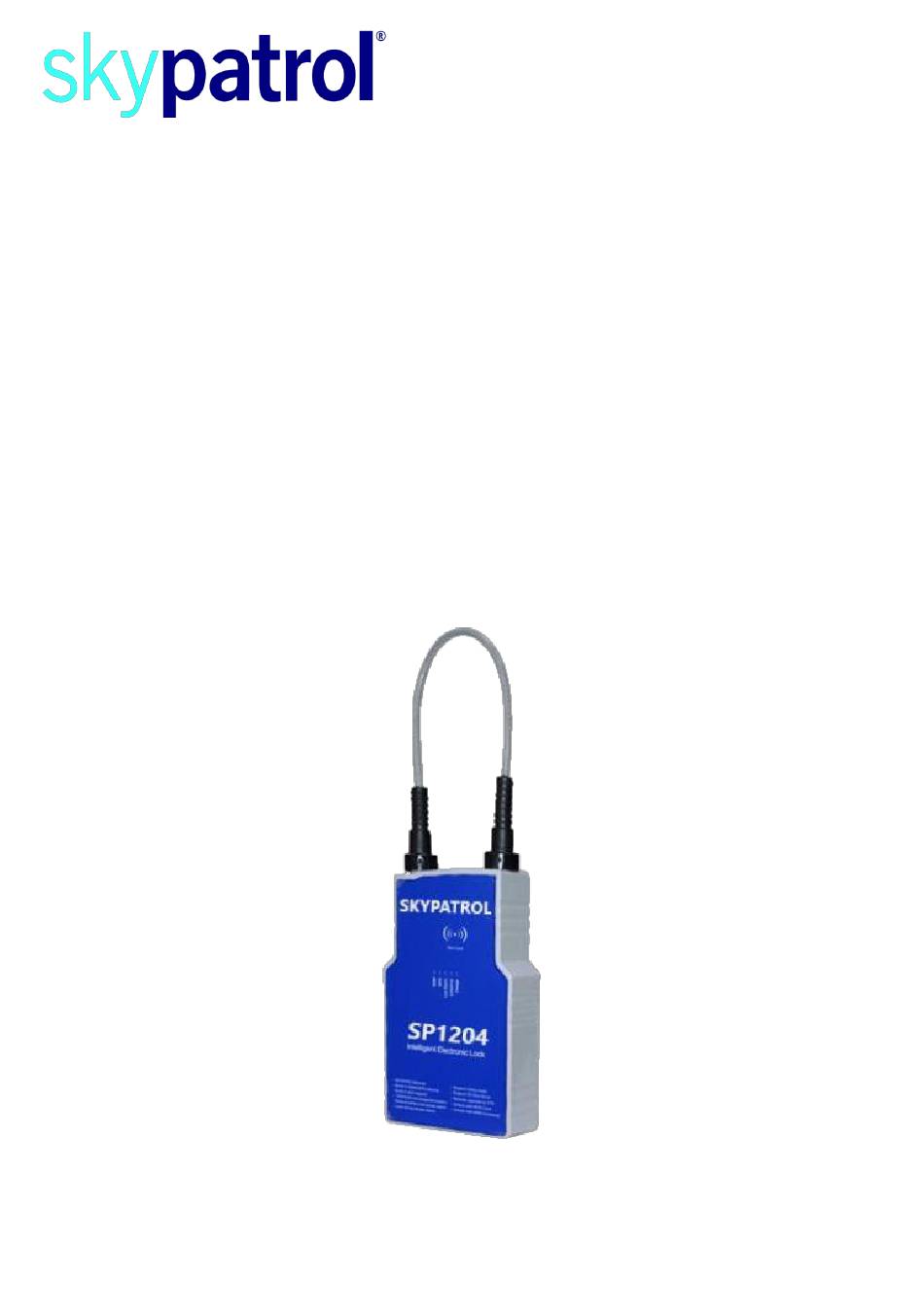

  • Page 1 SPL1204 User Manual V1.4 Updated by 2023-18-07 1 / 14...

  • Page 2: Table Of Contents

    Content Preface ....................... 3 1. Product Introduction ....................4 2. Packing List ......................5 4. LED definition ......................6 5.1 Prepare works ....................6 5.2 SIM Card Installation ..................6 5.3 Power on switch..................... 7 5.4 RFID No. White List ..................7 5.5 Lock ON ......................

  • Page 3: Preface

    Preface Thank you for choosing the company's SPL1204 (4G/2G) Lock tracker, please carefully read the instructions before operating. Please check the items in package with packing list, contact with the distributor when you found something leave out. Disclaimer：  Read this user manual carefully please. When you start use this product, then you are deemed to have read this user’s manual.

  • Page 4: Product Introduction

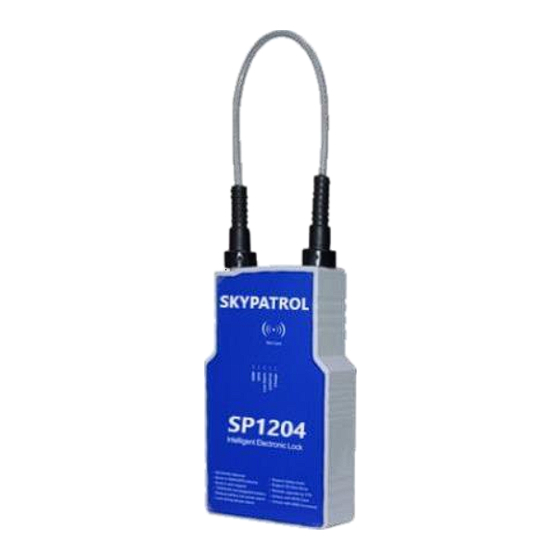

    Product Introduction SPL1204 4/2G Lock tracker combined with positioning, monitor and observe, themain applies to container, trucks and other transportation object location andtracking services. Product Features:  Support battery low power alarm.  Build-in GSM/GPS antenna.  Support GPRS network data transmission.

  • Page 5: Packing List

    Packing List Name Count SPL1204 Lock device Lock string wire RFID card Optional Charger Optional Technical Parameters Name Parameters Communicate module 2G(M25): 850/900/1800/1900 MHz 2/4G optional 4G CAT1(Optional) EC200N-CN LTE-FDD: B1/B3/B5/B8/B28/B66 LTE-TDD: B34/B38/B39/B40/B41 GSM:B3/B8 Color Black GPS Performance AT6558R Acquisition sensitivity: -148dBm Tracking sensitivity: -162dBm GPS frequency: L1, 1575.42MHz...

  • Page 6: Led Definition

    Before you start install the device, Please check the product you get with the packing list, if you have any problem please contact us or distributor in time. 5.1 Prepare works  SPL1204 lock tracker  Local GPRS SIM card  RFID card 5.2 SIM Card Installation...

  • Page 7: Power On Switch

    data flow, please select suitable package. Note: Do not install SIM Card in opposite way.  SIM Card must open GPRS data transmission function  Confirm the SIM Card have enough balance inside.  Test SIM card by cellphone to check if it can connect network ...

  • Page 8: Lock On

    4. USB Driver: <CH340 USB-SER> or <CP210x_Universal_Windows_Driver> 5. Set by command(Please check at command list for details). 5.5 Lock ON Just insert the rope in, will be lock on by AUTO, and motor will run 1.5s for double lock after 3s rope insert. 5.6 Unlock a.

  • Page 9: Setting Commands

    After you send the command, when you hear the beep sound, means unlocking, after the sound end, then you can pull the lock wire out. Setting Commands To make the device work on GPRS mode together the control center software system, we have to set some parameters to make the device know where and how to connect the server.

  • Page 10: Serial Command List

    7. Serial command list Name Command Reply AS1234*269#1,120.24.225.253, SMS Set IP,PORT IP:120.24.225.253,5577,1 OK 5577,1# AS1234*269#1,tracking.net,5577, Set domain SMS SET ID AS1234*269#2,12007845# IDDO:00012345 OK Set APN AS1234*269#3,CMNET,,,# APN:cmnet;OK SMS restart AS1234*269#B# Restart;OK SMS set back to factory AS1234*269#F# PASSWORD:1234;OK Check IP,ID,APN AS1234*269#C# IP:120.24.225.253,2008,1,cmnet,,,ID:610 00640,M:6,GPS:A,5,CSQ:28,CGR:1,ACC...
  • Page 11 Max: 50 ID card support. x=1-5, each time can set 10 RFID numbers,the RFID number need follow set RFID card white list AS1234*269#6,B,x,ID1,ID2,...ID with ","; With group 10,# Example: Set 2 ID cards: AS1234*269#6,B,1,0002346789,000702 2058,# Query RFID card number AS1234*269#6,Q,x# x=1-5 by group Clear RFID number by...

  • Page 12: Faq

    M3: close GPS, sleep GSM(can receive SMS) enable sleep with unlock and lock; x1=wake up working time; Sleep mode No.3 AS1234*269#9,M3,x1,x2,# x2=sleep mode wake up time, need larger than 5min; x3=reserved Unit is minute. M5: upload by moving or static. X1=moving upload interval(need speed);...

  • Page 13: Upgrade Steps

    8.3 Device do not get correct position First time get position will take longer time (around 1~2 min), please put the LED side face to sky with no cover to get position. If it takes long time and do not get correct location, please check if the device install position is correct and no metal shield above it.
  • Page 14 14 / 14...
