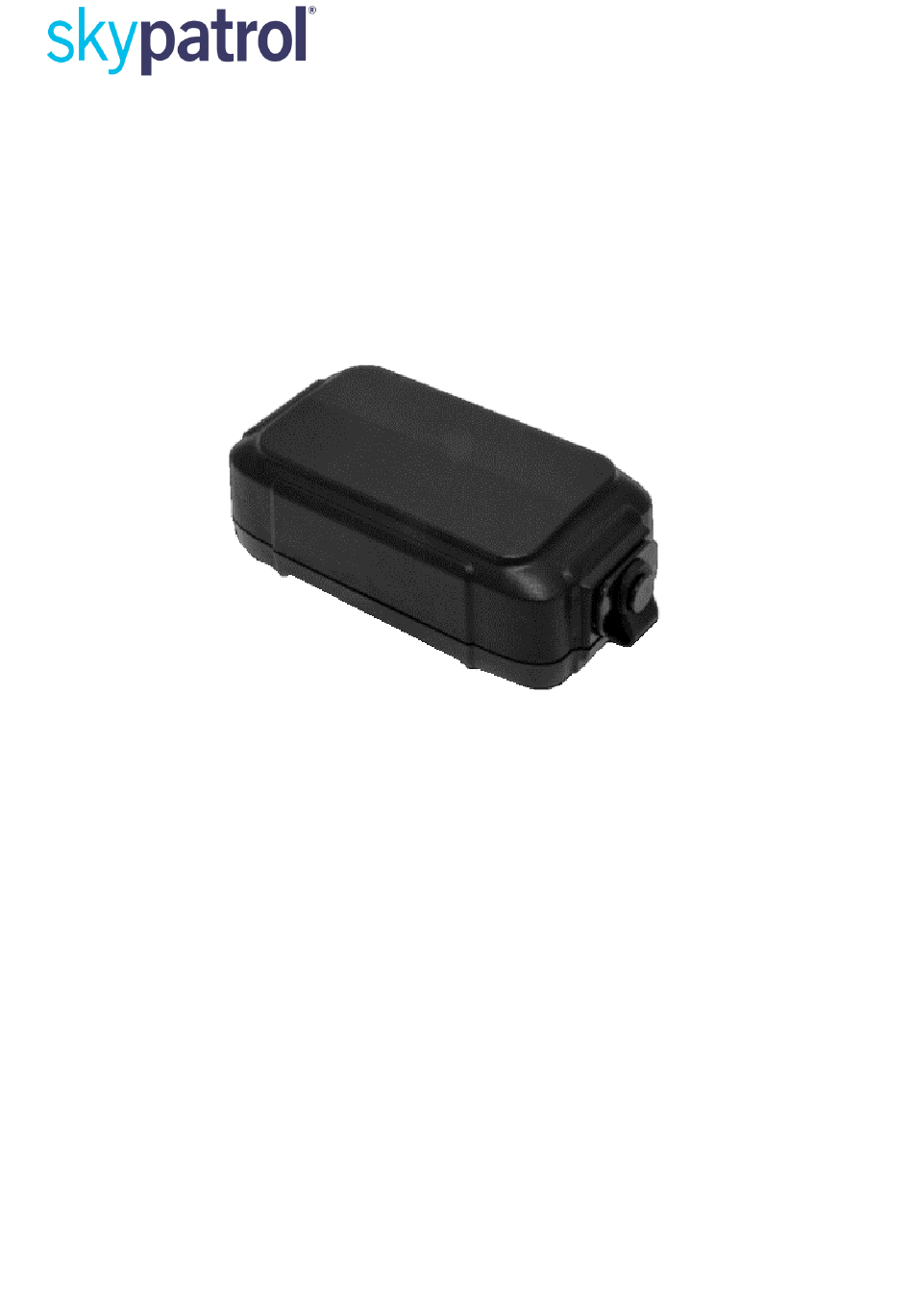

- Page 1 SP9700 User Manual Skypatrol SP9700 User Manual v1.0 Copyright © 2019 Skypatrol...
- Page 2 Copyright and Disclaimer The User Manual may be changed without notice. Without prior written approval of Skypatrol LLC., this User Manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.
-
Page 3: Table Of Contents
SP9700 User Manual CONTENTS 1 . SP9700 Introduction .................. 4 2 . SP9700 Specification .................. 5 3 . Product overview ..................7 3.1 Check package ................7 3.2 Interface definition ................ 8 3.3 DMD working mode ..............9 4 . Installation ....................10 4.1 Dismantle .................. -
Page 4: Sp9700 Introduction
SP9700 User Manual 1. SP9700 Introduction SP9700 is a richly functional GPS tracker, which is mainly used for asset management. It features low power-consumption, high-grade waterproof. Product can choose the built- in high capacity rechargeable lithium battery or 4XCRA battery or Boston battery, free choice as your requirement. -
Page 5: Sp9700 Specification
SP9700 User Manual 2. SP9700 Specification Dimensions 103.5 (L)*93 (W)*37 (H)mm (with consolidated shell) 100 (L)*55 (W)*32 (H)mm Physical Weight 319.5g (with consolidated shell and battery) 260.5g (with battery only) Working -10 ~ +50°C (CR123A dry temperature battery) American Boston battery: Changing: -20℃～... - Page 6 SP9700 User Manual consumption Low-power- consumption <100 µA mode (only power by lithium battery) SMS, TCP, UDP Data support GSM/GPRS Quad Band 850/900/1800/1900 MHz 3G Dual Band (US) 850/1900 MHz (optional) Communication 3G dual band (Europe) 900/2100 MHz (optional) GSM/GPRS output power...
-
Page 7: Product Overview
SP9700 User Manual 3. Product Overview 3.1 Check package Before using, please check out the package and make sure the following items have been included with your device. If anything is missing, please contact your supplier. ①Standard Part List Main unit... -
Page 8: Interface Definition
SP9700 User Manual ②Optional Part List IO cable 3.2 Interface definition The definition of interface as following shown: PIN Name Color Definition White IN1can be configured as ACC DC 12V Black Ground Blue Output port Green TTL UART(Rx/Tx) TTL UART(Rx/Tx) -
Page 9: Dmd Working Mode
SP9700 User Manual 3.3 DMD working mode SMS+GP RS SMS+GP internal SMS+GP SMS+GP SMS+GP Time for SMS+GP while working working TCP while TCP while stop Extend set battery low while DMD mode name RS move search search move to moving if TCP... -
Page 10: Installation
SP9700 User Manual working time without data (Awake Interval) and search time (unfixed threshold): 4. GSM delay when start moving: When device start moving - wake up only GPS, but GSM wake up after 600 sec to upload position data and be on-line till device goes in parking mode. This setting ake device invisible for GSM-detectors from start and protect device from detection. - Page 11 SP9700 User Manual 3) Open card slot and insert SIM card, notice the card direction 4) Close card slot, it should connect the power connector when First time using. 5) Connect USB cable and use configuration tool to configure device.
-
Page 12: Configure Device
SP9700 User Manual 6) Close device cap and screw all screws 4.2 Configure device a) Open the configuration tool By double click “Configuration Tool” Note: if there is an error or you are unable to open the file, please install “Microsoft .NET Framework”4.0 or latest version in your computer. -
Page 13: Install Magnet
SP9700 User Manual b) Connect the device to your computer. Choose the correct serial port and device mode, and then click ‘connect’. c) Input your desired parameters and click ‘write’ to write all of the data to device. 4.3 Install magnet... -
Page 14: Io Port Configure
Digital input port can be configured as engine detect mode. 5.2 Output port configure SP9700 possess one default output port, the port can be configured as digital output port. Configure the output way and parameter of OUT1 by using DOM command: Example: DOM;4;1;3;10;0;1... -
Page 15: Common Words
SP9700 User Manual Enable output port working as preset mode by using DOO command. Example: DOO; 5 response：DOO:5 It will immediately output as DOM; 5 setup. 6. Common words Set your cell phone number as User0 or User1. This will allow you to send SMS commands to control and receive messages from the device. -
Page 16: Set Ack
SP9700 User Manual suggested. Command format: 1. Set user0 password: < User0 Password>, UPW0 ;< New Password> 2. Set user1 password: < User1 Password>, UPW1 ;< New Password> Parameter description: < New Password>: Fix 4 digits, range is “0000 to 9999”... -
Page 17: Set Sim Card Apn
SP9700 User Manual Parameter description: <Mode>: “0”: Represents static upload mode “1”: Represents dynamic upload mode. It is valid only when DNU command enabled. <Interval>: Report interval, range is “30 to 900 seconds”, “15 to 59 minutes”, “1 to 720 hours”. The... -
Page 18: Set Gprs Main Server
SP9700 User Manual Note: The device already contains many APNs. It will automatically identify APN information after inserting SIM card. Example: Set APN, user name, and password 1234,APN;CMNET;USR;PW Query setting: 1234, APN 6.6 Set GPRS main server Command: SVR command is to set GPRS main server. Command format: <User Password>,SVR;<IP address>;<TCP Port>;<UDP Port>;<Mode>;<Enable ACK>... -
Page 19: Set Gprs Backup Server
SP9700 User Manual 6.7 Set GPRS backup server Command: BSV command is to set GPRS backup server. The device connects with the main server as priority. When the connection between device and main server is overtime, it will switch to the backup server. After the device is connected with the backup server reach setting time, it will try to connect with the GPRS main server automatically. -
Page 20: Set Position Report Interval To Grps Server
SP9700 User Manual 6.8 Set position Report Interval to GRPS Server Command: SVP command is to set mode0 (static mode) and mode1 (dynamic mode) report interval to GRPS Server, upload data and data format. Command format: <User Password>, SVP; <Mode> ;< Interval> ;< Report mode> ;< Data format> Parameter description: <Mode>:... -
Page 21: User Combine Command
SP9700 User Manual Example: 1234, FWU SMS Reply: SP9700 V1.00 FWU BAT=3.30V FOTA upgrade will take about 10 minutes and you will receive a confirming message. SMS reply: SP9700 V1.10 Upgrade Success! Ext_BAT=3.95V BAT=3.30V 7. User combine command The device supports combining multiple commands through an SMS message sent to the device. - Page 22 SP9700 User Manual Content of message Explanation SP9700 V1.00 Device name, Firmware version UPW:1234 Command Setting Ext_Pwr=11.94V External power voltage BAT=3.90V Built-in battery voltage Consumed messages...
