Summary of Contents for Skypatrol SP2600

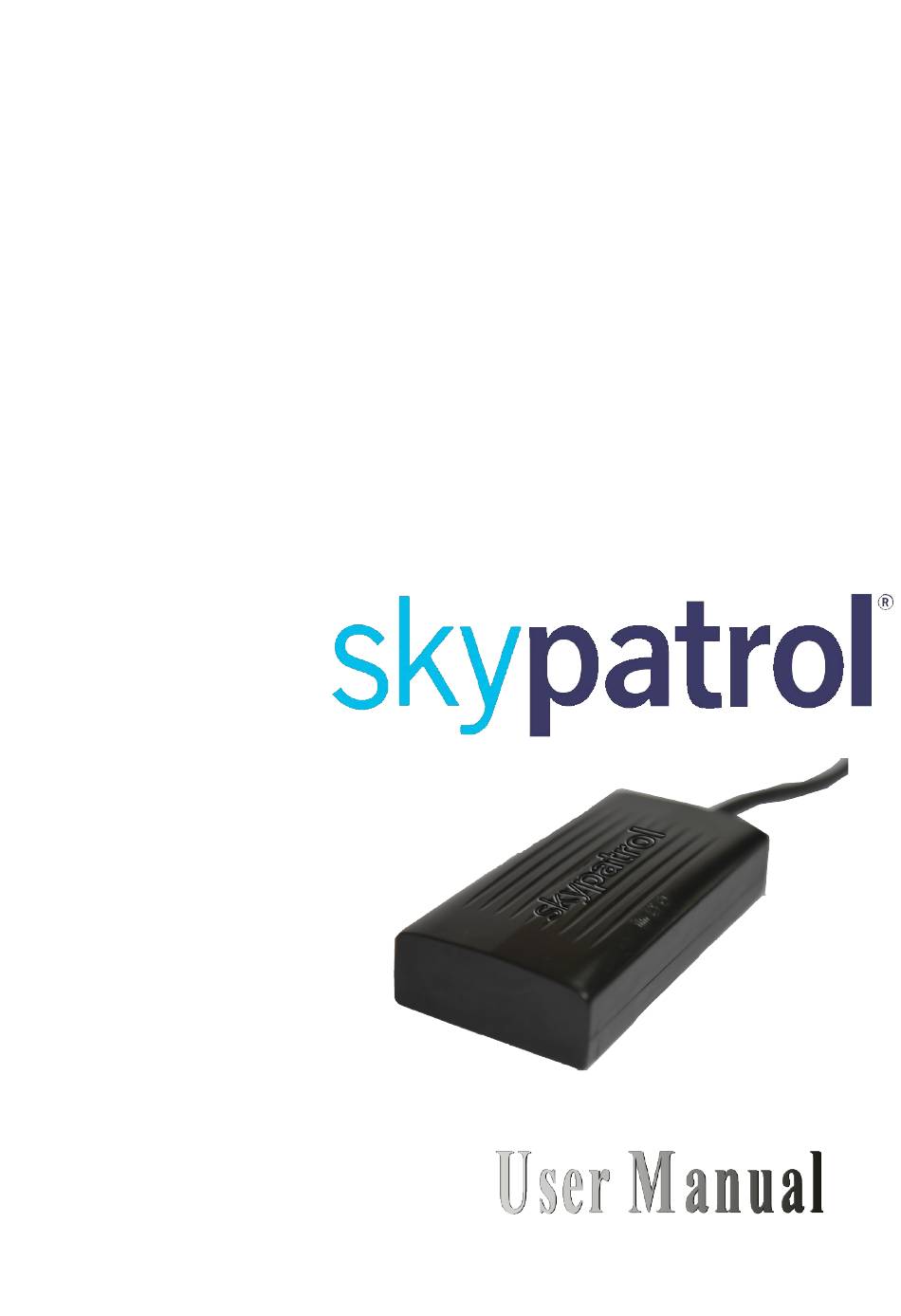

  • Page 1 SP2600...
  • Page 2 Copyright and Disclaimer The user manual may be changed without notice. Without prior written consent of Skypatrol Company Ltd., this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.
  • Page 3 SP2602 User Manual INSTRUCTIONS OF SAFETY This chapter contains information on how to operate “SP2602” safely. By following these requirements and recommendations you will avoid dangerous situations. You must read these instructions carefully and follow the strictly before operating the device! Device with internal battery in long-time storage need regular charged to avoid over-discharge and need store in the dry and cool place if the storage time is longer than three months.

  • Page 4: Table Of Contents

    SP2602 User Manual Contents SP2602 Introduction..................6 SP2602 Specifications..................7 Product overview..................8 Check Part List.....................8 Standard Part List..................8 Optional Part List..................9 Getting Started....................11 The Backup Battery Switch................11 Open The Case...................12 Insert SIM Card..................13 Lock SIM Card Slot...................14 Close The Case...................15 Install Direction ..................16 Installing the External GPS Antenna(Optional)..........17 Interface Definition &...
  • Page 5 SP2602 User Manual Digital/Analog Multiplex Inputs..............24 Digital Outputs....................25 Serial Port / UART Interface................27 Picture Upload to Remote Server..............28 MDT......................29 Fuel Level Detection..................30 Remoter Control Idatalink Device..............31 Voice Interface....................32 1-Wire Bus.....................33 User Combine Command................34 SMS Report Explanation................35 Common commands..................38 Set User Phone Number................38 Set User Password..................39 Set Report Interval Mode Switching Condition..........40 Set Position Report Interval To User.............41...

  • Page 6: Sp2602 Introduction

    SP2602 User Manual SP2602 Introduction The SP2602 is a new generation vehicle or asset tracking and telemetry device designed for maximum autonomy and ease of use. It is intended for use to protect and trace items such as containers-caravans-fixed plant-construction equipment-in shore boats and truck trailers.

  • Page 7: Sp2602 Specifications

    SP2602 User Manual SP2602 Speci ications Dimension 90(L)x46(W)x20(H)mm Physical Weight ~83g (With battery) Operating -40°C ~+80°C (without backup battery) Environment temperature -10°C ~+50°C (with backup battery) ACC input 1 channel I/O connector Digital output 1 channel Mini USB STM32F103 UcOS LED indicator 3 LED indicators GSM &...

  • Page 8: Product Overview

    SP2602 User Manual Product overview Check Part List Before starting, check all the following items have been included with your device. If anything is missing, please contact your supplier. Standard Part List...

  • Page 9: Optional Part List

    SP2602 User Manual Optional Part List USB Cable Relay Fuse Fastening Tape...

  • Page 10: Getting Started

    SP2602 User Manual Getting Started Open The Case Forced open up via the gap.
  • Page 11 SP2602 User Manual Open The Sim Card Cover Disconnect the battery and device first, and then open the cover.

  • Page 12: Insert Sim Card

    SP2602 User Manual Insert SIM Card Insert the SIM card into the holder and please notice the cut mark position. Device use 1.8V or 3.3V Micro-SIM card, SIM card size 12*15mm.

  • Page 13: Lock Sim Card Slot

    SP2602 User Manual Lock SIM Card Slot Close the SIM card slot and lock it. Connect the battery connection.

  • Page 14: Close The Case

    SP2602 User Manual Close The Case Place the cover on the bottom in the position as shown in the photo and close until it snapped.
  • Page 15 SP2602 User Manual Installation Direction Device have built-in GSM and GPS antenna, the signal of GSM and GPS will be affected by installation direction of device. The recommended installation direction is as follows: Face Up...
  • Page 16 SP2602 User Manual The number of I/O connectors can be customized by the customer, the following is the definition of the 4 I/O connectors device. Colour Name Definition Remark/Default Black Negative (-) Positive (+) 8V-32V DC White ACC/Ignition signal input High level active Blue OUT1...

  • Page 17: Power Connection

    SP2602 User Manual Power Connection VCC and GND are the power input pins. The input voltage range for this device is from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V systems without the need for external transformers. Fuse VCC 8V-32V 50 CM...

  • Page 18: Digital Outputs

    SP2602 User Manual Digital Outputs There are three digital outputs on device. All are of open drain type and the maximum drain current is 200 mA. Each output has the built-in over current and recovery PTC fuse. Logical State Electrical Characteristics Enable 1.5~20V@Ids<200mA Disable...
  • Page 19 SP2602 User Manual Out1 connect to relay. 50 CM 85(-) 86(+)

  • Page 20: User Combine Command

    SP2602 User Manual User Combine Command Device support to combine multiple commands through a SMS message sent to the device. The commands are separated by a comma, the maximum length of the combined command is 256 bytes. Formats as below: User Separated Command...

  • Page 21: Sms Report Explanation

    SP2602 User Manual SMS Report Explanation There are two kind of SMS report: interval report and event report, SMS format have "W" and "T" two mode types, GPS and LBS two kinds of positioning data. “W” Mode Report Content of message Explanation G3C V1.00 Device name/Firmware version...
  • Page 22 SP2602 User Manual “T” Mode GPS Report Content of message Explanation G3C V1.00 Device name/Firmware version LTM 2013-02-28 23:51:09 Date/Time GPS 1.55/0.50/3/4 HDOP/ALTITUDE in meter/Fixed satellite N23.164302 number/Time of first fixed E113.428456 N means north/S means south SPD:0km/h 0 E means east/W means west ETD:28/ACC ON Speed/Heading GSM -52dBm...
  • Page 23 SP2602 User Manual “T” Mode LBS Report Content of message Explanation G3C V1.00 Device name/Firmware version LTM 2013-02-28 23:51:09 Date/Time MCC/MNC/LAC/CID/RSSI Base station information type 460/0/2503/962C/-53dBm Main station(MCC/MNC/Local area code/ 460/0/2731/40F4/-60dBm Station ID/Signal strength) 460/0/2703/4050/-70dBm Neighbor station 1 ETD:28/ACC ON Neighbor station 2 GSM -52dBm Event ID/User defined event name/Data...

  • Page 24: Common Commands

    SP2602 User Manual Common commands To set your cell phone number as User0 or User1,send SMS command to control and receive messages from device . Set User Phone Number Command: UNO command is set up 2 users phone number, user1 and user2 have the same authorization.

  • Page 25: Set User Password

    SP2602 User Manual Set User Password Command: UPW command is set user command password. User0’s factory default password is “1234”, User1’s factory default password is “1234”. Changing the factory password at the first usage is highly suggested. Command format: 1.Set user0 password: <...

  • Page 26: Set Report Interval Mode Switching Condition

    SP2602 User Manual Set Report Interval Mode Switching Condition Command: DNU command is to set conditions to switch between mode0(dynamic mode) and mode1(static mode). Set DNU command will affect the GPRS, SMS administrator, user report interval. Command format: < User Password>,DNU;<Parameter> Parameter description: <Parameter>:HEX, Range is “0 to FF”...

  • Page 27: Set Position Report Interval To User

    SP2602 User Manual Set Position Report Interval To User Command: USP command is to set mode0(dynamic mode) and mode1(static mode) report interval to user0 and user1. Command format: 1.Set position report interval to user0: <User Password>,USP0; <Mode>;<Interval>;<Report mode>;<Data format> 2.Set position report interval to user1: <User Password>,USP1;...
  • Page 28 SP2602 User Manual Example: Set User0 dynamic report interval: 1234,USP0;0;1H;G;W Disable User0 static report interval: 1234,USP0;1;24H;O;W...

  • Page 29: Set Sim Card Apn

    SP2602 User Manual Set SIM Card APN Command: APN command is a must for GPRS connectivity. Command format: < User Password>,APN;< APN >;< user name >;< password > Parameter description: <APN>: 1 to 64 characters <user name>: 0 to 32 characters <password>: 0 to 32 characters If there is not user name and password for APN, command could be: APN;<APN>...

  • Page 30: Set Gprs Main Server

    SP2602 User Manual Set GPRS Main Server Command: SVR command is to set GPRS main server. Command format: <User Password>,SVR;<IP address>;<TCP Port>;<UDP Port>;<Mode>;<Enable ACK> Parameter description: <IP address>:IP or domain name, 64 characters maximum. <TCP Port>:TCP port <UDP Port>:UDP port <Mode>: “0”:TCP mode “1”:UDP mode...
  • Page 31 SP2602 User Manual Example: Set as TCP socket: 1234,SVR;114.142.154.28;3032;;0;0 1234,SVR;www.anytracking.net;3032;;0;0 Set as UDP socket: 1234,SVR;114.142.154.28;;3032;1;1 1234,SVR;www.anytracking.net;;3032;1;1 Delete main server: 1234,SVR; Query setting: 1234,SVR...

  • Page 32: Set Gprs Backup Server

    SP2602 User Manual Set GPRS Backup Server Command: BSV command is to set GPRS backup server. The device connected with main server priority. When the connection between device and main server is overtime abnormally, it will switch to backup server. After the device is connected with the backup server in fixed time, it will try to connect with the GPRS main server automatically.
  • Page 33 SP2602 User Manual Example: Set as TCP socket: 1234,BSV;114.142.154.28;3032;;0;0 1234,BSV;www.anytracking.net;3032;;0;0 Set as UDP socket: 1234,BSV;114.142.154.28;;3032;1;1 1234,BSV;www.anytracking.net;;3032;1;1 Delete main server: 1234,BSV; Query setting: 1234,BSV...

  • Page 34: Set Position Report Interval To Grps Server

    SP2602 User Manual Set Position Report Interval To GRPS Server Command: SVP command is to set mode0(dynamic mode) and mode1(static mode) report interval to GRPS Server. Command format: <User Password>,SVP; <Mode>;<Interval>;<Report mode>;<Data format> Parameter description: <Mode>: “0”: Report mode0, It’s called dynamic mode. “1”: Report mode1, It’s static mode .Valid only when command DNU is enabled.
  • Page 35 SP2602 User Manual Example: Set dynamic report interval: 1234,SVP;0;30S;G;H Disable static report interval: 1234,SVP;1;1H;G;H...

  • Page 36: Led Indicator Behavior

    SP2602 User Manual LED Indicator Behavior...
