Skypatrol SP8600
User Manual V1.0
Copyright © 2017 Skypatrol

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP8600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Skypatrol SP8600

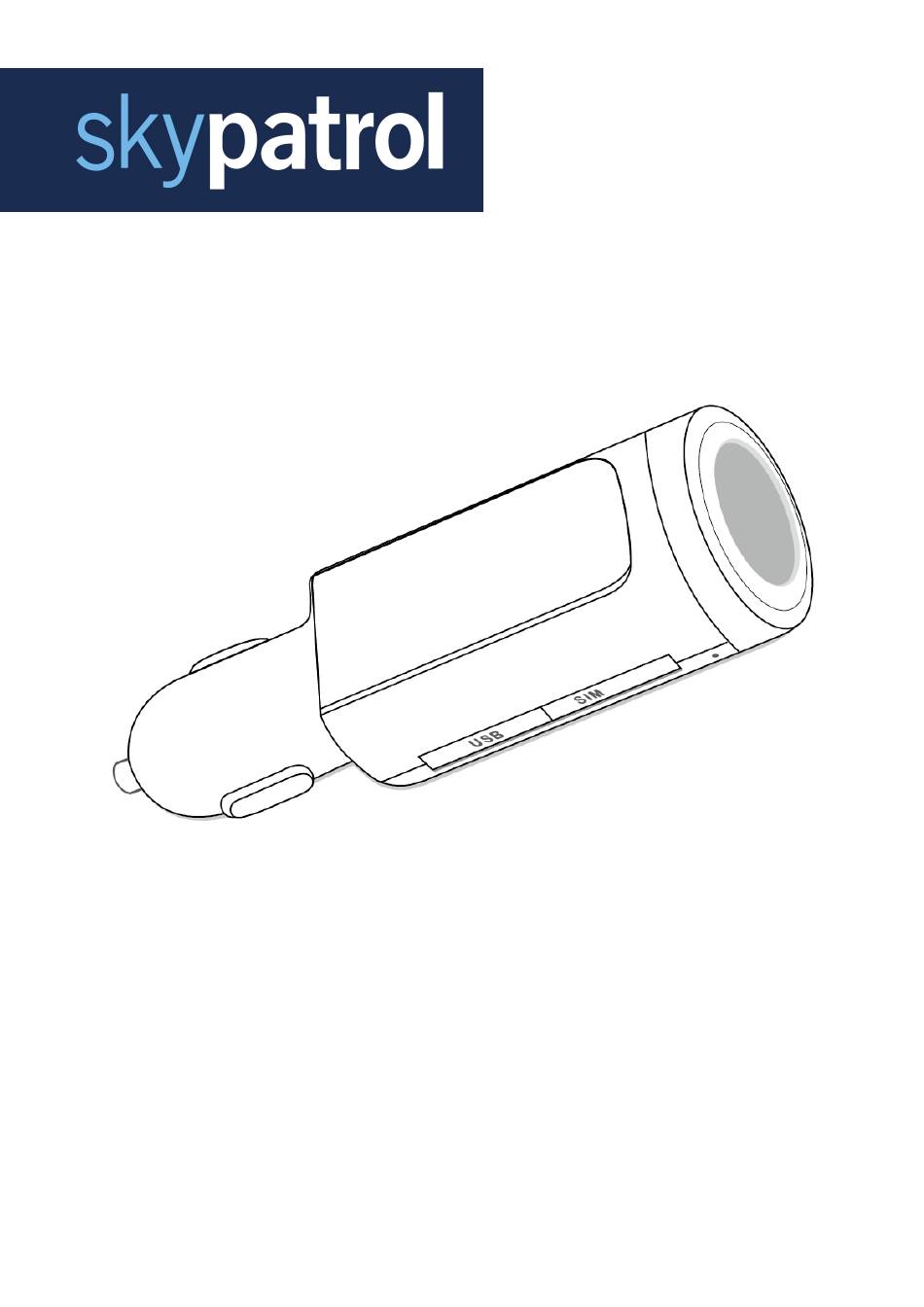

  • Page 1 Skypatrol SP8600 User Manual V1.0 Copyright © 2017 Skypatrol...
  • Page 2 All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Skypatrol is prohibited. u Other products and company names mentioned herein may be trademarks or trade names of their respective owners.
  • Page 3: Table Of Contents

    Skypatrol SP8600 User Manual V1.0 Contents 1. Packing list ................4 2. Specifications ................4 3. Features and event ..............5 4. Overview ................. 6 5. Installation ................6 5.1. SIM card ................6 5.2. Sensor calibration ............... 6 6. LED behavior ................7 7.
  • Page 4: Packing List

    Skypatrol SP8600 User Manual V1.0 1. Packing list 2. Specifications Dimension 108(L)*32(W)*32(H)mm Physical Weight ~60g (With backup battery) -40℃ to +80℃ (without backup battery) Environment Operating temperature -10℃ to +50℃ (with backup battery) Interface Cigarette lighter Nominal 12VDC Mini USB...
  • Page 5: Features And Event

    Skypatrol SP8600 User Manual V1.0 3. Features and event  Features  Built-in 3 axis acceleration sensor  A-GPS supported  GSM jamming detection  Private activity hour mode  Multiple user profiles switching automatically on preset conditions  Dynamic report interval on preset conditions ...
  • Page 6: Overview

    Skypatrol SP8600 User Manual V1.0 4. Overview GPS antenna side, facing to open sky as possible SOS button & External power supply - LED indicator Microphone Mini USB interface & SIM card holder External power supply + 5. Installation  5.1. SIM card Please remove rubber cover for SIM card holder at first.
  • Page 7: Led Behavior

    Skypatrol SP8600 User Manual V1.0 6. LED behavior  Below shown how a LED “cycle” works: 1. At the beginning of each cycle, Red LED will blink first quickly to indicate current power status. 2. Then all LED OFF for 3 seconds, Blue LED starts to blink quickly to indicate current GSM status.
  • Page 8: User Command

    Skypatrol SP8600 User Manual V1.0 7. User command  Command UNO0 This command is to set user phone number#1 that has authority to interact with tracker. Example: Phone number: 13800138000, country code: +86 1234,UNO0;+8613800138000 Tracker SP8600 V1.00 User SMS UNO0:+8613800138000 EXT_PWR=11.94V...
  • Page 9 Skypatrol SP8600 User Manual V1.0 1234,MEI Tracker SP8600 V1.00 User SMS MEI:351535053999389 EXT_PWR=11.94V BAT=3.90V  Command BLS This command is to set low balance notification/Query current balance of tracker SIM card. 1234,BLS;*125 Tracker SP8600 V1.00 User SMS BLS:*125 EXT_PWR=11.94V BAT=3.90V ...
  • Page 10 Skypatrol SP8600 User Manual V1.0  Command CAL This command is to ask tracker to call specific phone number, it will call back after receiving command. 1234,CAL;+8613800138000 Tracker SP8600 V1.00 User SMS CAL:+8613800138000 EXT_PWR=11.94V BAT=3.90V  Command VER This command is to query current hardware and firmware version of tracker.
  • Page 11: Message Sample

    Skypatrol SP8600 User Manual V1.0 8. Message sample Content of message Explanation SP8600 V1.00 Device name/Firmware version LTM 2013-06-06 14:17:12 Date/Time http://maps.google.com/maps?q=%n(,%e&t=m&z=16 Google map hyper link GSM -52dBm GSM network signal strength EXT_PWR=12.08V External power voltage BAT=3.86V Built-in battery voltage...
