- Page 1 SKYPATROL highly recommends that a certified professional technician install the unit into your asset. BE SURE TO REGISTER YOUR DEVICE ON LINE PRIOR TO HAVING IT INSTALLED Call 800-369-5007 for more details. copyright Ó 2006 Skypatrol, LLC. All rights reserved.
-
Page 2: Table Of Contents
Installing Antennas .............................. 9 About the Antennas ............................. 9 Tests & Troubleshooting ............................ 10 Technical questions ............................10 Preface There are three primary aspects to the installation of the Skypatrol TT8750 vehicle tracking device: · Power connections · Antennas installation ·... -
Page 3: Mounting Of The Device
Before installation is completed, it s strongly recommended you verify (with the service provider) that the readings are correct for the device and the server is receiving all the information. copyright Ó 2006 Skypatrol, LLC. All rights reserved. www.skypatrol.com 3/10... -
Page 4: Wire Connection Methods
If these are used the wrong way or the wrong size is used it is copyright Ó 2006 Skypatrol, LLC. All rights reserved. www.skypatrol.com... -
Page 5: Power Connection
Power for the device is supplied via the red wire of the power wiring harness. Connect this wire to the appropriate connection point in the vehicle as described below. The Skypatrol TT8750 device requires a power source with a voltage between 9 and 30 volts DC and a current capability of up to 1 Amp. -
Page 6: Grounding
OFF. If you do decide to use the ignition sense feature, the Skypatrol device is smart enough to know when the ignition is ON or OFF. If the ignition is ON, then a 12 volt potential will appear in the ignition sense pin. If the ignition is OFF, then a 0 volt potential will appear in the ignition sense pin. - Page 7 Power (red) and ground (black) wires of the TT8750. Device in Low Power Mode when Ignition Turned Off · Connect the ignition wire (white) of the TT8750 to an auxiliary power source, i.e. ignition sense. · Device goes through a reset upon ignition on.
-
Page 8: Disable/Enable Starter / Unlock The Door
The SkyPatrol device includes 2 sets of harness, one to connect to the unit and one for the relay. The device is able to operate with an N/O or N/C automotive-grade relay switch. The correct relay wiring connection will depend on the particular of the vehicle and service contracted. -
Page 9: Installing Antennas

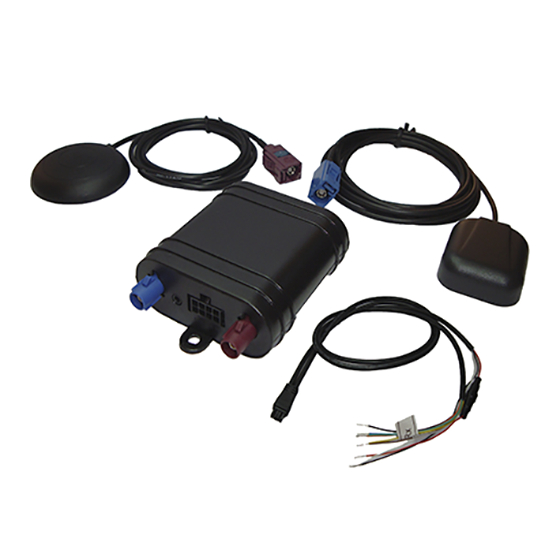

TT8750 Installer Guide Installing Antennas There is one GPS and one GSM antenna to install for the TT8750 device; these antennas cover the required frequencies for the GPS / GSM portions. The antennas have a magnetic side and also an adhesive side, so it is possible to affix it in position by placing it on any surface. -
Page 10: Tests & Troubleshooting
On = Register USR1 GREEN Network Off = Not Register Blinking = Searching Technical questions For further information contact us at: Skypatrol LLC 3055 NW 84th Ave. Doral, Florida 33122 1-800-369-5007 copyright Ó 2006 Skypatrol, LLC. All rights reserved. www.skypatrol.com 10/10...
