Summary of Contents for Skypatrol SP4700

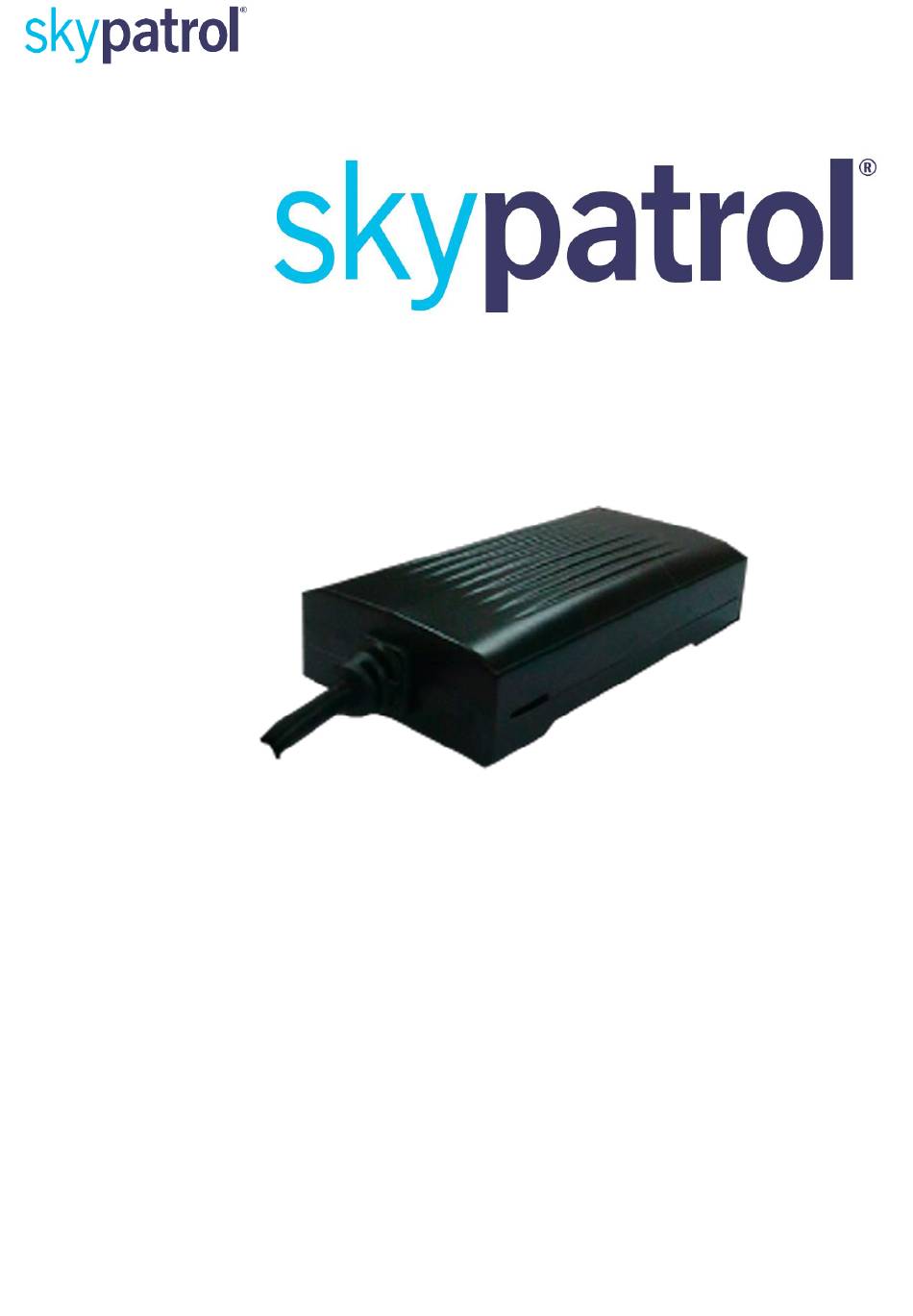

  • Page 1 SP4700s s products user manua erie SP4700 User manual...
  • Page 2 Copyright and Disclaimer The user manual may be changed without notice. Without prior written consent of Skypatrol LLC Company Ltd., this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.
  • Page 3 INSTRUCTIONS OF SAFETY This chapter contains information on how to operate “SP4700 series product” safely. By following these requirements and recommendations you will avoid dangerous situations. You must read these instructions carefully and ollow them strictly before operating the device! The built‐in battery of device need...
  • Page 4: Table Of Contents

    CONTENTS 1. SP4700 Series Introduction..................5 2. SP4700 series products specifications ............... 6 3. Product overview ....................... 7 3.1 Check Part List ....................7 3.2 Open the device cap ..................9 3.3 Install SIM card....................10 3.4 Connect USB data line ...................
  • Page 5: Sp4700 Series Introduction

    1. SP4700 Series Introduction The SP4700 series products are new generation vehicle or asset trackers and telemetry device designed for maximum autonomy and ease for use. It is intended for use to protect and trace items such as containers‐caravan ‐fixed plant‐construction equipment‐in shore boats and truck trailers.
  • Page 6: Sp4700 Series Products Specifications

    SP4700s s products user manua erie 2. SP4700 series products specifications Dimension 94(L)X47(W)X20.5(H)mm Specification Weight ~83g (With battery) Operating ‐40°C ~+80°C (without backup battery) Environment temperature ‐10°C ~+50°C (with backup battery) Mini USB STM32F103 LED indicator 3 LED indicators GSM & GPS & POWER...
  • Page 7: Product Overview

    SP4700s s products user manua erie Model 1 U‐Blox NEO 6M Channel 50 Parallel Channels Accuracy Autonomous<2.5M Sensitivity ‐162dBm Sensor Accelerate sensor Built‐In, 3‐axis Flash storage 16Mbits Built‐In 3. Product overview 3.1 Check Part List Before starting, check all the following items have been included.
  • Page 8 SP4700s s products user manua erie ②Optional Part List Fuse Relay Fasten tape USB cable...
  • Page 9: Open The Device Cap

    SP4700s s products user manua erie 3.2 Open the device cap (Take G3C US‐3G product for example) Remove screws in the back of device first. Then force to open the device cap as the arrow direction. Remove the device cap carefully.
  • Page 10: Install Sim Card

    SP4700s s products user manua erie 3.3 Install SIM card Please note the installation direction of the SIM card. 3.4 Connect USB data line The USB cable is optional not for standard part, only for se ial interface using.
  • Page 11: Close The Case

    SP4700s s products user manua erie 3.5 Close the case Put the power connector to corresponding socket and close the case carefully. Close as the arrow direction and put screws on.
  • Page 12: Installation Direction

    SP4700s s products user manua erie 3.6 Installation Direction Device has built‐in GSM and GPS antenna, the signal of GSM and GPS will be affected by installation direction of device. The recommended installation direction as follows:...
  • Page 13: Interface Definition & Cable Color

    SP4700s s products user manua erie 4. Interface Definition & Cable Color Different interface definitions of SP4700 series product explain: Color I function PIN definition Level d finition SP2600 SP4700 8V‐32V √ √ POWER 8V‐32V Black √ √ High level:>5.7V;...
  • Page 14 SP4700s s products user manua erie User Separated Command Separated Command Separated ... Command name Comma Comma Comma...
  • Page 15: Command Error Sms

    SP4700s s products user manua erie UNO;139 UPW; ... USP0; 1;24 1234 12345678 4567 H;0;W Command Reply Explanation: After device received the user's command will immediately process and reply to the user with SMS, reply SMS has two kinds: command error, command success. 5.1 Command Error SMS Content Explanation...
  • Page 16: Sms Report Explanation

    SP4700s s products user manua erie 6. SMS Report Explanation There are two kinds of SMS report: interval report and event report, SMS format have "W" and "T" mode types, GPS and LBS two kinds of p sitioning data. 6.1 “W” Mode Report Content Explanation G3C V1.00...
  • Page 17: T" Mode Gps Report

    SP4700s s products user manua erie 6.2 “T” Mode GPS Report Content Explanation G3C V1.00 Device name/Firmwar version LTM 2013‐02‐28 23:51:09 Date/Time GPS 1.55/0.50/3/4 HDOP/ALTITUDE in meter/Fixed satellite number/Time of first fixed N23.164302 N means north/S means south E113.428456 E means east/W means west SPD:0km/h 0 Speed/Heading ETD:28/ACC ON...
  • Page 18: T" Mode Lbs Report

    SP4700s s products user manua erie 6.3 “T” Mode LBS Report Content Explanation G3C V1.00 Device name/Firmwar version LTM 2013‐02‐28 23:51:09 Date/Time MCC/MNC/LAC/CID/RSSI Base station informati n type 460/0/2503/962C/‐53dBm Main station(MCC/MNC/Local area code/ Station ID/Signal strength) 460/0/2731/40F4/‐60dBm Neighbor station 1 460/0/2703/4050/‐70dBm Neighbor station 2 ETD:28/ACC ON...
  • Page 19: Common Commands

    SP4700s s products user manua erie 7. Common comm nds To set your cell phone number as User0 or User1, send SMS command to control and receive messages from device. 7.1 Set User Cell Phone Number Command: UNO command is set up 2 users’ phone numbers; user1 and user2 have the same authorization.
  • Page 20: Set User Password

    SP4700s s products user manua erie 7.2 Set User Password Command: UPW command is set user command password. User0’s factory default password is “1234”; User1’s factory default password is “1234”. Changing the default password at the first time is highly suggested. Command format: 1.
  • Page 21: Set Report Interval Mode Switching Condition

    SP4700s s products user manua erie 7.3 Set Report Interval Mode Switching Condition Command: DNU command is to set conditions to switch between mode0 (dynamic mode) and mode1 (static mode). Set DNU command will affect the GPRS, SMS administrator, user report interval. Command format: <...
  • Page 22: Set Timing Report Interval To User

    SP4700s s products user manua erie 7.4 Set timing Report Interval to User Command: USP command is to set the device in the mode 0(dynamic mode) and mode 1 (static mode) timing report interval to user0 and user1, upload data and data format. Command format: 1.
  • Page 23: Set Sim Card Apn

    SP4700s s products user manua erie 7.5 Set SIM Card APN Command: Uninstall SIM card can’t use APN command, APN command is a must for GPRS connectivity. Command format: < User Password>,APN;< APN >;< user name >;< password > Parameter description: <APN>: 1 to 64 bytes <user name>: 0 to 32 bytes <password>: 0 to 32 bytes...
  • Page 24: Set Gprs Main Erver

    SP4700s s products user manua erie 7.6 Set GPRS Main Server Command: SVR command is to set GPRS main server. Command format: <User Password>,SVR;<IP address>;<TCP Port>;<UDP Port>;<Mode>;<Enable ACK> Parameter description: <IP address>:IP or domain name, 64 bytes maximum. <TCP Port>:TCP port <UDP Port>:UDP port <Mode>: “0”:TCP mode “1”:UDP mode...
  • Page 25 SP4700s s products user manua erie Query setting: 1234,SVR...
  • Page 26: Set Gprs Backup Server

    SP4700s s products user manua erie 7.7 Set GPRS Backup Server Command: BSV command is to set GPRS backup server. The device connected with main server priority. When the connection between device and main server is overtime abnormally it will switch to backup server. After the device is connected with the backup server in fixed time, it will try to connect with the GPRS main server automatically.
  • Page 27 SP4700s s products user manua erie Example: Set as TCP socket: 1234,BSV;114.142.154.28;3032;;0;0 1234,BSV;www.anytracking.net;3032;;0;0 Set as UDP socket: 1234,BSV;114.142.154.28;;3032;1;1 1234,BSV;www.anytracking.net;;3032;1;1 Delete main server: 1234,BSV; Query setting: 1234,BSV...
  • Page 28: Set Timing Report Interval To Grps Server

    SP4700s s products user manua erie 7.8 Set Timing Report Interval to GRPS Server Command: SVP command is to set mode0 (static mode) and mode1 (dynamic mode) report interval to GRPS Server. Command format: <User Password>, SVP; < ode> ;< Interval> ;< Report mode> ;< Data format> Parameter description: <Mode>: “0”: Report mode0, it’s called static mode.
  • Page 29: Led Indicator Behavior

    SP4700s s products user manua erie 8. LED Indicator Behavior...
