Skypatrol SP1824 User
Manual V2.0
Updated by 2022-9-10
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP1824 and is the answer not in the manual?

Questions and answers

Related Manuals for Skypatrol SP1824

Summary of Contents for Skypatrol SP1824

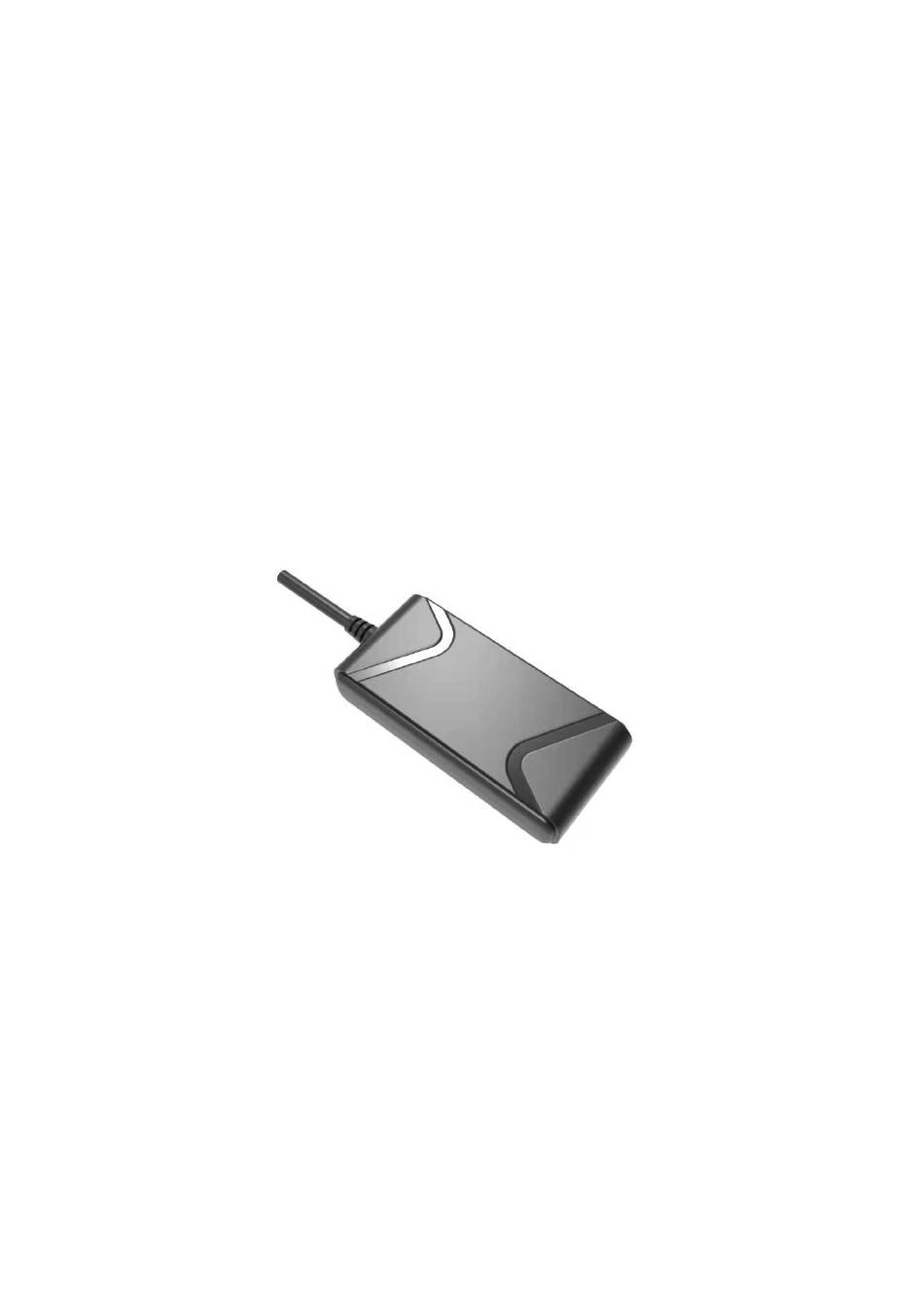

  • Page 1 Skypatrol SP1824 User Manual V2.0 Updated by 2022-9-10 1 / 12...

  • Page 2: Table Of Contents

    Content Preface ..................... 3 1. Product Introduction ................4 2. Technical Parameters ................5 3. Define of LED indicator ................6 4. Device Installation ................. 6 4.1 Prepare works ....................6 4.2 SIM Card Installation ..................6 4.3 Device Connection Description..............7 4.4 Device Install Position ..................

  • Page 3: Preface

    Preface Thank you for choosing the company's AT100 GPS tracking products, please carefully read the instructions before operating. Please check the items in package with packing list, contact with the distributor when you found something leave out. Disclaimer： Read this user manual carefully please. When you start use this product, then you are ➢...

  • Page 4: Product Introduction

    1. Product Introduction AT100 is 4G CAT1 tracking device, which combined with positioning, monitor, alarm and tracking functions, with small size it’s easy to use and operate, main applies to vehicles and other mobile object location and tracking service, with widely voltage support, it can used with motorcycle and Electric vehicles.

  • Page 5: Technical Parameters

    2. Technical Parameters Name Parameters 4G CAT1 (SIMCOM) Optional: SIMCOM A7670C LTE-FDD:B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 GSM:900/1800 MHz A7670E LTE-FDD: B1/B3/B5/B7/B8/B20 GSM: B3/B8 A7670SA LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM: B2/B3/B5/B8 A7670(OPEN) LTE-FDD:B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 Color Black GPS module XM1010/AT6558D Working Voltage 9V~95V Working Current Around 50mA@12V Standby current Around 10mA@12V Back-up Battery...

  • Page 6: Define Of Led Indicator

    3. Define of LED indicator LED Color Status Status describe Yellow/orange Light static GPRS communicate normal, status Online Fast blinking (2s blink once) initializing LED OFF GSM in sleep/device OFF Blue Light static GPS Located status Fast blinking (2s blink once) Finding GPS signal LED OFF GPS in sleep...

  • Page 7: Device Connection Description

    4.3 Device Connection Description Color Describe 4PIN Power(9-95V) Black Orange Yellow OUTPUT(relay) 2PIN(Optional) White SOS+ White SOS- 4.4 Device Install Position To install this device you need have some necessary knowledge about Car Electronics. So please make sure you have right person to make the first installation. In the installation process, do not power on device.

  • Page 8: Common Fault Analysis

    Enable log AT%TEST=*1234,280*1# Reply content is “IP” Set server IP/Port AS1234*269#1,120.24.225.253,55 120.24.225.253;5577,1; “Port”, connection type: 77,1# 0: UDP; 1: TCP AS1234*269#1,tracking.skypatrol. Set URL/domain com,5577,1# X=0: close IP2; Set IP2 AS1234*269#I2,120.24.225.253,5 X=1: 2 IP work same; 577,1,x# X=2: IP2 only work as backup server(IP1 can’t...
  • Page 9 Factory set AS1234*269#F# Reset OK; All parameters recover to factory, beside IP/Port/ID/APN Check connection AS1234*269#C# *U:122.114.126.6,6666, *N: device ID; info 1*A:cmnet,,*N:3423180 M6: Online; 1,M6,N1,60,3600,Q25 G1,8: G1 locate, G0 not ,G1,8,Z+0,AT08FV1.0 locate, 8 located satellite; Z+0: Timezone, GMT+0. Change SMS AS1234*269#4,5678# PWD:5678,OK password Angle:30, OK...
  • Page 10 ON/OFF),and cut oil totally after 30s. X is 0-12. Example: Set TIMEZONE AS1234*269#I,Ex/Wx# set GMT+8 Command: AS1234*269#I,E8# x=ACC ON upload SMS set ACC interval， ON/OFF upload AS1234*269#7,x,y# y=ACC OFF upload interval interval unit：km/h；x is speed； SMS set over SET SPEED:30(Km/h), speed AS1234SPEED:x,y# Y: duration time trigger...
  • Page 11 acc/brake parameters AS1234*269#W,120.24.225.253,2 OTA CMD 002;# D:200m; sp:50,3s; D:upload by distance; idl:8,3; mv:500; sleep:0; Sp: over speed; ack:0; acc:0; sos:0; idl: idle; power:0 Mv: ACC OFF moving alarm distance; Check alarm Sleep: 1 sleep mode on; parameters Ack: 1 enable position ack;...

  • Page 12: Serial Port Configuration

    7. Serial Port configuration Default Baud rate:115200; Tool: SSCOM; Via: USB port. Enable log cmd: AT%TEST=*1234,280*3# 12 / 12...
