SP9600 User Manual

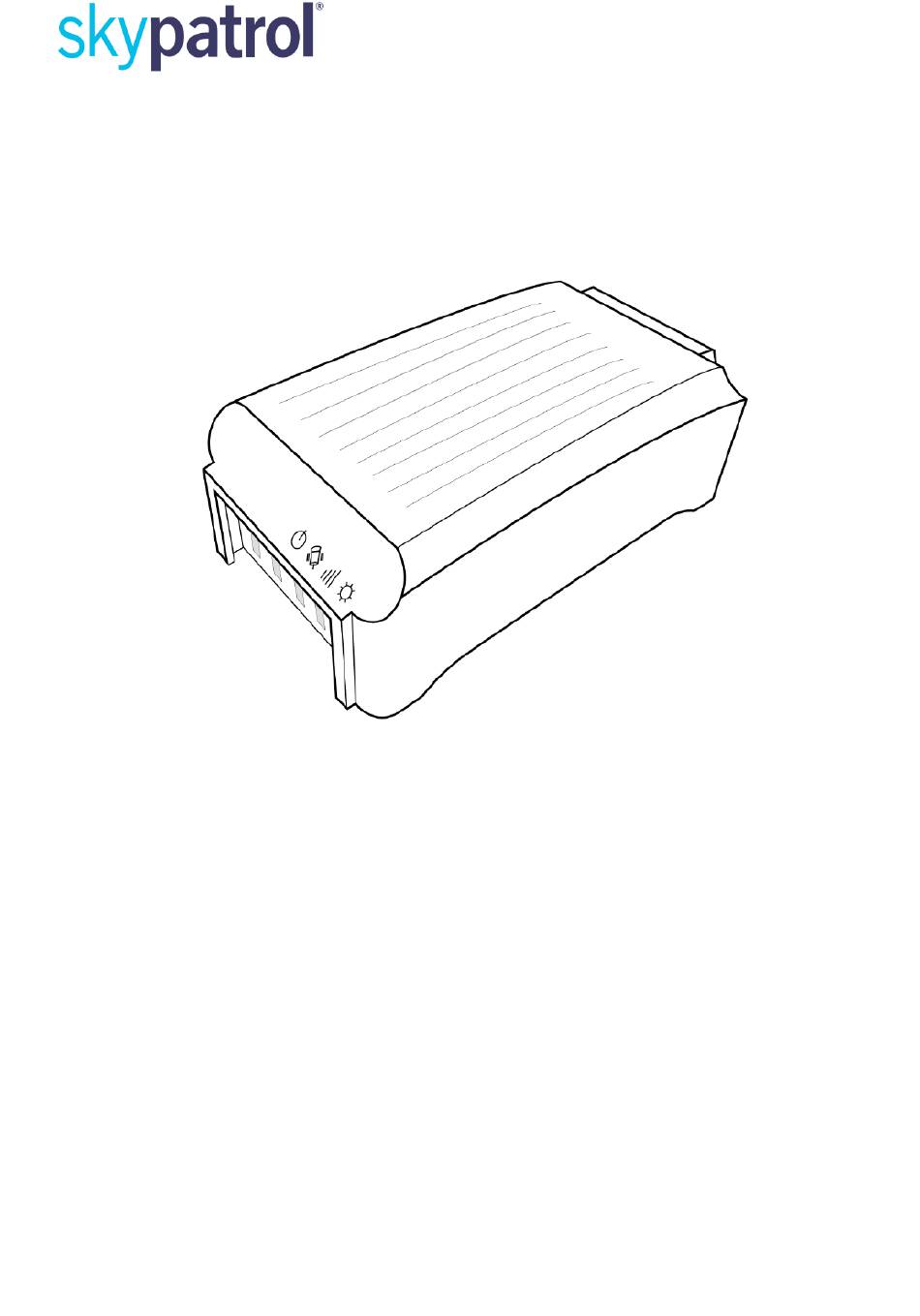

Skypatrol SP9600
User Manual v2.0
Copyright © 2017 Skypatrol
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP9600 and is the answer not in the manual?

Questions and answers

Related Manuals for Skypatrol SP9600

Summary of Contents for Skypatrol SP9600

  • Page 1 SP9600 User Manual Skypatrol SP9600 User Manual v2.0 Copyright © 2017 Skypatrol...
  • Page 2 SP9600 User Manual Document History File name SP9600 user manual Created By Hanson Product SP9600 Creation date 2016-01-15 Version V2.0 Update date 2016-02-24 Status Release Reviewed By Update History Updates content...
  • Page 3 Copyright and Disclaimer The User Manual may be changed without notice. Without prior written approval of Skypatrol LLC., this User Manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.

  • Page 4: Table Of Contents

    SP9600 User Manual CONTENTS 1. SP9600 introduction ....................5 2. SP9600 Specifications ....................6 3. Product overview ....................... 7 3.1 Check Part List ....................7 3.2 Product indicator diagram ................9 3.3 Interface Definition ..................10 3.4 LED indicator behavior ................... 10 4.
  • Page 5 SP9600 User Manual 5.7 Set GPRS Backup Server ................. 25 5.8 Set Position Report Interval To GRPS Server ..........27 5.9 Set device dismantled alarm ................28 5.10 Set product firmware upgrade ..............29 6. User Combine Command ..................30 6.1 Command Error SMS ..................

  • Page 6: Sp9600 Introduction

    SP9600 User Manual 1. SP9600 introduction SP9600 is a GPS tracker with powerful function, which is used for assets management mainly. It‟s a low power consumption, high level of waterproof products. It has build-in high capacity rechargeable lithium battery, allowing to use external multilevel extension battery packet.

  • Page 7: Sp9600 Specifications

    SP9600 User Manual 2. SP9600 Specifications 96（L）*50（W）*31.5（H）mm Dimensions Physical Weight 140g (include Lithium battery ) Operating -20℃～+50℃(include battery) temperature Storage temperature -40℃～+85℃ Relative humidity 95% RH @ +30°C humidity Dustproof: prevent outside thing intrusion, and can completely Environment prevent dust. IP6...

  • Page 8: Product Overview

    SP9600 User Manual 3. Product overview 3.1 Check Part List Before starting, check and make sure the following items have been included with your device. If anything is missing, please contact your supplier. ①Standard Part List Main unit Battery waterproof of port...
  • Page 9 SP9600 User Manual ②Optional Part List USB cable IO cable Charger Magnet Screw battery packet Bluetooth adapter...

  • Page 10: Product Indicator Diagram

    SP9600 User Manual 3.2 Product indicator diagram Charging LED indicator GPS LED indicator System LED indicator GSM LED indicator Battery packet connector or IO data connector Light sensation area...

  • Page 11: Interface Definition

    SP9600 User Manual 3.3 Interface Definition Interface definitions are as below. Pin Name Definition DC5V input, battery packet supply or charger Battery packet detection to input IN/OUT1 General bidirectional input/output Ground LED indicator behavior...
  • Page 12 SP9600 User Manual 3.5 Features  IP67 rating which provides protection against temperature/dust/water spray  Bluetooth connectivity, for wireless configuration and periodical report.  Endurablebattery lifefor long term deployment, and external battery pack supported  Built-in 3 axis G-sensorfor motion detection ...

  • Page 13: Device Installing Way

    SP9600 User Manual 3.6 Supported event list Tracker is capable to report below specific events instantly via GPRS/SMS channel according to setting. Note: Above events by default are disabled please enable them by configuration tool if necessary or contact your distributor forfurther information regarding this topic.
  • Page 14 SP9600 User Manual c) Open Card slot d) Install SIM card f) Be sure to plug in the power e) Close card slot line at first time use. g) Connect USB cable and use h) Screw cap on. configuration tool to configure...

  • Page 15: Configure Device

    SP9600 User Manual Configure device a) Install device driver Device driver file Gosafe-Cdc b) Open the configuration tool by double click “Configuration Tool” Note: if there is an error or you are unable to open the file, please install “Microsoft .NET Framework ”4.0 or latest version in your computer.

  • Page 16: Install Magnet

    SP9600 User Manual c) Connect the device to your computer. Choose the correct serial port and device mode, then click „connect‟. d) Input your desired parameters and click „write‟ to write all of the data to device. Install magnet Use two screw to fix magnet.

  • Page 17: Connect Battery Packet

    SP9600 User Manual Connect battery packet a) Connect b) Close c) Fasten Dismantle battery packet Use tweezers or other tools to insert and press down the point showed on the picture, at the same time open the buckle to dismantle the battery packet.

  • Page 18: Charging Device

    SP9600 User Manual Charging device e) Charging.

  • Page 19: Common Commands

    SP9600 User Manual Common commands To set your cell phone number as User0 or User1. This will allow you to send SMS commands to control and receive messages from the device. Set User Phone Number Command: UNO command is set up to utilize 2 users phone numbers. Both users have the same authorization.

  • Page 20: Set User Password

    SP9600 User Manual Set User Password Command: UPW command is used to set user command password. User0‟s factory default password is “1234”. User1‟s factory default password is “1234”. Changing the factory password upon first use is highly suggested. Command format: 1.Set user0 password:...

  • Page 21: Set Position Report Interval To User

    SP9600 User Manual Set Position Report Interval To User Command: USP command is to set mode0(static mode) and mode1(dynamic mode) report interval to user0 and user1. Command format: 1.Set position report interval to user0: <User Password>,USP0; <Mode>;<Interval>;<Report mode>;<Data format> 2.Set position report interval to user1: <User Password>,USP1;...

  • Page 22: Set Sim Card Apn

    SP9600 User Manual Set SIM Card APN Command: APN command is required for GPRS connectivity. Command format: < User Password>,APN;< APN >;< user name >;< password > Parameter description: <APN>: 1 to 64 characters <user name>: 0 to 32 characters <password>: 0 to 32 characters...

  • Page 23: Set Gprs Backup Server

    SP9600 User Manual Note: <Enable ACK>: “1”: data is sent via UDP channel from the device. The server must respond with any data in ACK waiting time, otherwise the device will consider the UDP connection dead and save data to its internal flash storage.

  • Page 24: Set Position Report Interval To Grps Server

    SP9600 User Manual <Enable ACK>: “0”:Disable “1”:Enabled for UDP, this is default setting. “2”:Enabled for UDP and TCP both. Note: <Enable ACK>: “1”: data is sent via UDP channel from device. The server must respond with any data in ACK waiting time, otherwise the device will consider the UDP connection dead and save data to its internal flash storage.

  • Page 25: Set Device Dismantled Alarm

    SP9600 User Manual <Report mode>: “O”: Disable “G”: GPS information prior, otherwise use GSM tower position instead, GSM tower uses HEX format. “A”: GPS and GSM information <Data format>: “O”: Do not generate data. “B”: HEX “T”: text Example: Set static report interval: 1234,SVP;0;30S;G;H...

  • Page 26: Set Product Firmware Upgrade

    SP9600 User Manual 5.10 Set product firmware upgrade Command: FWU command is to active OTA firmware upgrade by user phone. Format: <user password>,FWU Example: 1234,FWU SMS Reply: SP9600 V1.00 FWU BAT=3.30V OTA upgrade will take about 10 minutes and you will receive a confirming message.

  • Page 27: Command Success Sms

    SP9600 User Manual Command Success SMS Content of message Explanation SP9600 V1.00 Device name, Firmware version UPW:1234 Command Setting Ext_Pwr=11.94V External power voltage BAT=3.90V Built-in battery voltage Consumed messages SMS Report Explanation There are two types of SMS reports: interval report and event report. SMS format has "W"...

  • Page 28: T" Mode Lbs Report

    SP9600 User Manual “T” Mode LBS Report Content of message Explanation SP9600 V1.00 Device name/Firmware LTM 2015-02-28 23:51:09 version Date/Time Base station information type MCC/MNC/LAC/CID/RSSI Main station(MCC/MNC/Local area code/ 460/0/2503/962C/-53dBm Station ID/Signal strength) 460/0/2731/40F4/-60dBm Neighbor station 1 460/0/2703/4050/-70dBm Neighbor station 2...
