Summary of Contents for Orban OPTIMOD XPN-AM

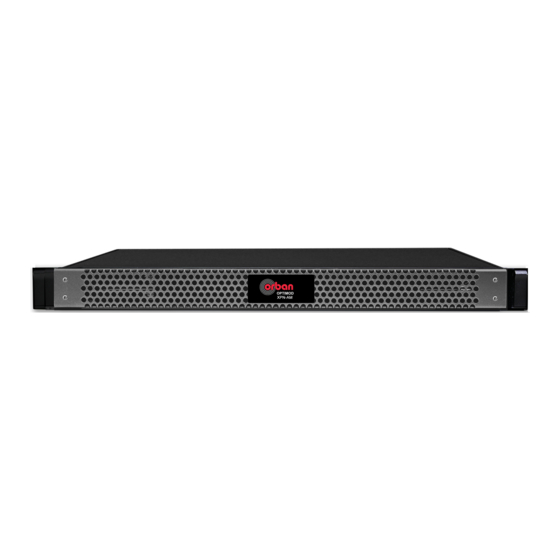

- Page 1 QUICK START GUIDE OPTIMOD XPN-AM Server Based Audio Processing...
-
Page 2: Hardware And Software Requirements
Orban XPN ENTERPRISE QUICK START GUIDE XPN AM brings to life all of the latest Orban technology in AM, Shortwave and Longwave processing in one powerful unit. Take a little time now to familiarize yourself with OPTIMOD-AM. A small investment of your time now will yield large dividends in audio quality. -
Page 3: Hardware Installation
Orban XPN ENTERPRISE QUICK START GUIDE recommended configuration. It facilitates locating XPN-AM hardware in a machine room without being connected to a keyboard, mouse, or monitor. Regardless of whether operation is “local” or “network,” a server that accepts TCP/IP communications runs in the background as part of the XPN-AM Service. - Page 4 Orban XPN ENTERPRISE QUICK START GUIDE Depending on how they are ordered, some host computers are equipped with dual- redundant power supplies with automatic failover. Each power supply has a dedicated connection to the AC line. For maximum reliability, connect the two supplies to two AC circuits.
- Page 5 Orban XPN ENTERPRISE QUICK START GUIDE 4) Switching input source (Analog – AES) and line mixer levels Installations with an AES source will need to switch the XPN-AM input source from Analog to AES in the XPN service settings. default, the input source is set to Analog. If you intend to use analog, skip to Section 5 on Page 6.
- Page 6 Orban XPN ENTERPRISE QUICK START GUIDE Adjusting the sound card mixer is performed thru Windows. The sound card does not have a dedicated control application. To do this, open WINDOWS DEVICE MANAGER by clicking on the Windows start button and typing ‘DEVICE MANAGER’ and selecting •...
- Page 7 Service, connect to Processors via CONNECT > LOCAL. Questions? Contact Orban Technical Support at: support@orban.com or by phone at 1-856-719-9900 The full user manual for the OPTIMOD XPN-AM can be found here: http://www.orban-europe.com/downloads/XPN-...
- Page 8 Orban XPN ENTERPRISE QUICK START GUIDE NOTES...
- Page 9 Orban XPN ENTERPRISE QUICK START GUIDE...
- Page 10 All trademarks are property of their respective companies. This guide was published September 2023. © Copyright Orban. This document may be freely printed and distributed by Orban’s customers, but its text may not be incorporated into derivative works. Orban Labs Inc., 7209 Browning Road, Pennsauken NJ 08110 USA...
