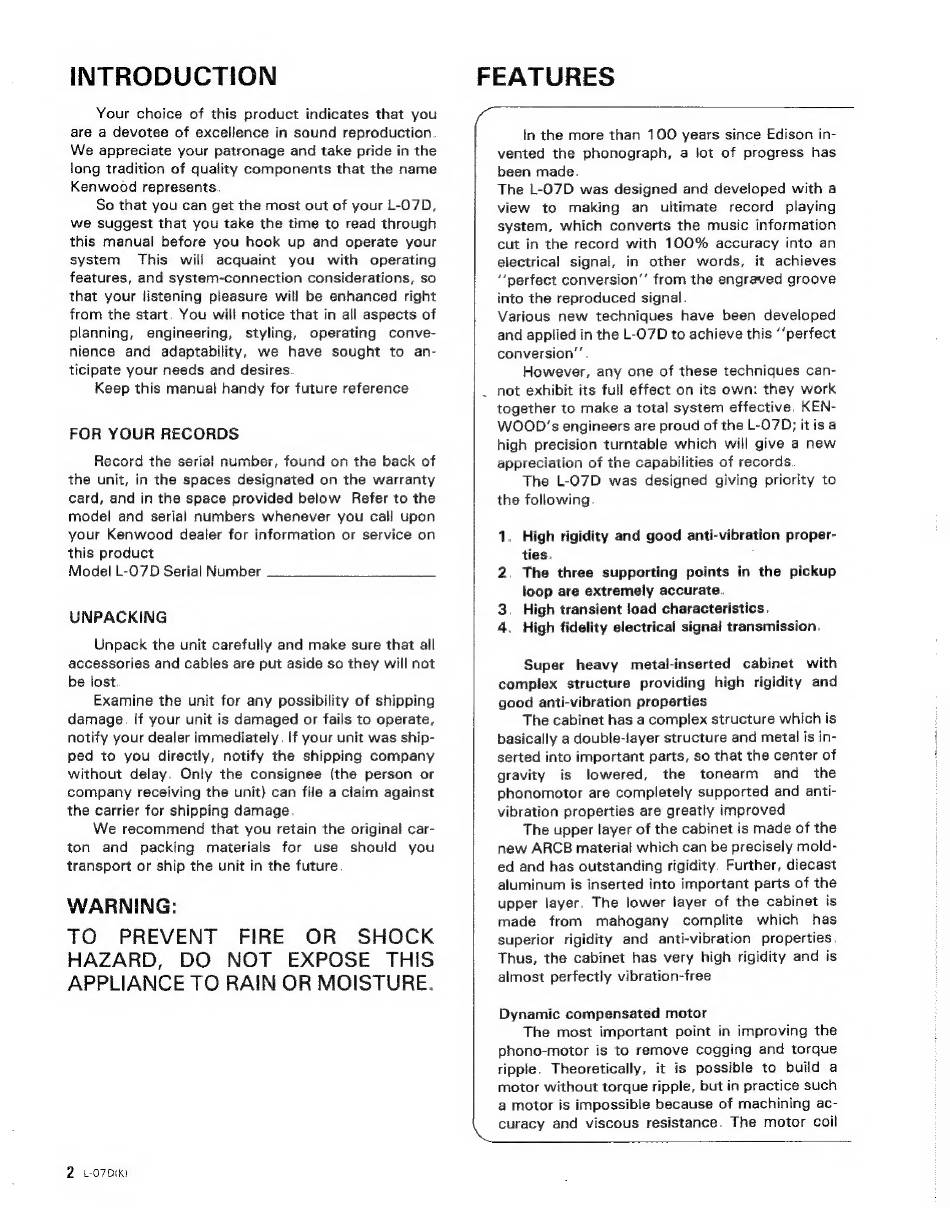

INTRODUCTION
Your choice of this product indicates that you
are a devotee of excellence in sound reproduction.
We appreciate your patronage and take pride in the
long tradition of quality components that the name
Kenwood represents
So that you can get the most out of your L-O7D,
we suggest that you take the time to read through
this manual before you hook up and operate your
system This will acquaint you with operating
features, and system-connection considerations, so
that your listening pleasure will be enhanced right
from the start. You will notice that in all aspects of
planning, engineering, styling, operating conve-
nience and adaptability, we have sought to an-
ticipate your needs and desires
Keep this manual handy for future reference
FOR YOUR RECORDS
Record the serial number, found on the back of
the unit, in the spaces designated on the warranty
card, and in the space provided below Refer to the
model and serial numbers whenever you call upon
your Kenwood dealer for information or service on
this product
Model L-O7D Serial Number
UNPACKING
Unpack the unit carefully and make sure that all
accessories and cables are put aside so they will not
be lost.
Examine the unit for any possibility of shipping
damage. If your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was ship-
ped to you directly, notify the shipping company
without delay. Only the consignee (the person or
company receiving the unit) can file a claim against
the carrier for shipping damage.
We recommend that you retain the original car-
ton and packing materials for use should you
transport or ship the unit in the future.
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
2 L-0701K)
FEATURES
In the more than 100 years since Edison in-
vented the phonograph, a lot of progress has
been made.
The L-O7D was designed and developed with a
view to making an ultimate record playing
system, which converts the music information
cut in the record with 100% accuracy into an
electrical signal, in other words, it achieves
"perfect conversion' from the engraved groove
into the reproduced signal.
Various new techniques have been developed
and applied in the L-O7D to achieve this ''perfect
conversion'.
However, any one of these techniques can-
not exhibit its full effect on its own: they work
together to make a total system effective, KEN-
WOOD's engineers are proud of the L-O7D; itis a
high precision turntable which will give a new
appreciation of the capabilities of records
The L-O7D was designed giving priority to
the following
1. High rigidity and good anti-vibration proper-
ties.
2. The three supporting points in the pickup
loop are extremely accurate
3. High transient load characteristics.
4. High fidelity electrical signal transmission.
Super heavy metal-inserted cabinet with
complex structure providing high rigidity and
good anti-vibration properties
The cabinet has a complex structure which is
basically a double-layer structure and metal is in-
serted into important parts, so that the center of
gravity is lowered, the tonearm and the
phonomotor are completely supported and anti-
vibration properties are greatly improved
The upper layer of the cabinet is made of the
new ARCB material which can be precisely mold-
ed and has outstanding rigidity. Further, diecast
aluminum is inserted into important parts of the
upper layer. The lower layer of the cabinet is
made from mahogany complite which has
superior rigidity and anti-vibration properties.
Thus, the cabinet has very high rigidity and is
almost perfectly vibration-free
Dynamic compensated motor
The most important point in improving the
phono-motor is to remove cogging and torque
ripple. Theoretically, it is possible to build a
motor without torque ripple, but in practice such
a motor is impossible because of machining ac-
curacy and viscous resistance. The motor coil
