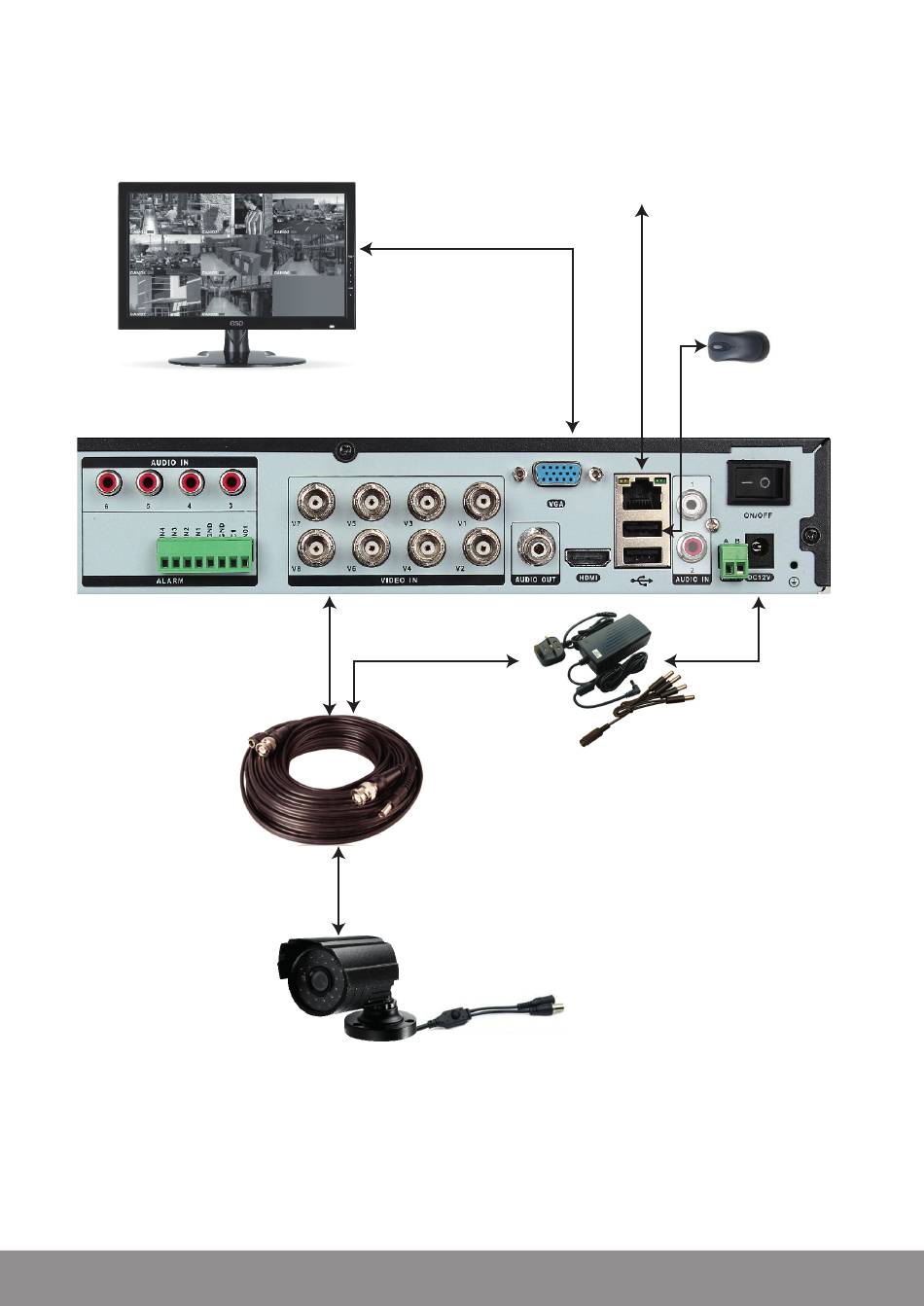

DVR CONNECTION DIAGRAM
Monitor
Local Area Network
VGA / HDMI
Connection
Mouse Controller
DVR
Rear Panel
Video Input
(BNC Female)
Power Supply / Splitter Lead
Video / Power Cable
Camera
BNC Video (female) / Power Jack (female)
Notes on Camera Connection:
The DVR is specifically designed for High Definition cameras using AHD technology.
The DVR can also support standard definition cameras.
