System Connection Diagram - ESP HDview FHDV16RX User Manual

16 channel true hd digital video recorder
Hide thumbs

Advertisement

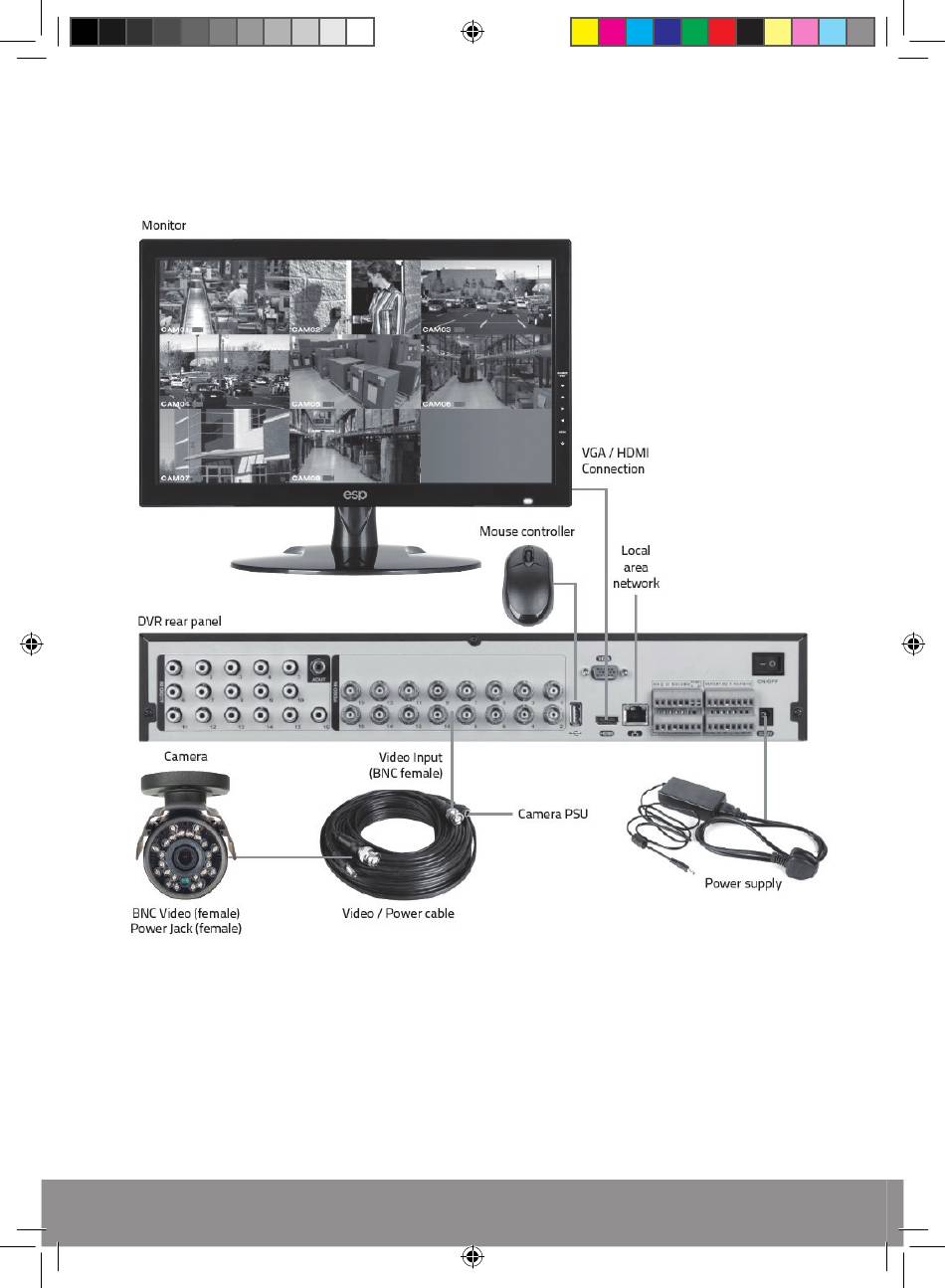

DVR CONNECTION DIAGRAM
Notes on Camera Connection:
The DVR is specifically designed for High Definition cameras using AHD technology.
The DVR can also support standard definition cameras.
4
FHDV16RX.indd 4
28/03/2017 16:10:49
