- Page 1 JANUARY 2024 GEN.S.24.314 MR5502 MR Conditional Adjustable Height Patient Trolley OPERATORS MANUAL...
- Page 2 Thank you for purchasing this MR Conditional product. Manufactured and tested to the highest standards it is guaranteed MR Conditional to 7.0T. Our products are manufactured by Wardray Premise Ltd to BS EN ISO 13485 and are CE marked. Manufacturing address:...
- Page 3 Safety Definitions for MRI as Defined by International Standard F2503 MR SAFE: An item that poses no known hazards resulting from exposure to any MR environment. MR SAFE items are composed of materials that are electrically non-conductive, non-metallic, and non-magnetic. MR CONDITIONAL: An item with demonstrated safety in the MR environment within defined conditions.
-
Page 4: Specification

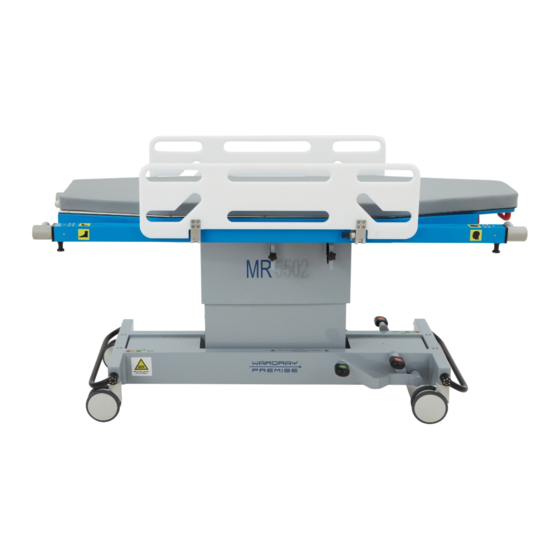

Specification The MR5502 Trolley is designed to be MR Conditional and is manufactured and tested to the highest standards. The MR5502 is constructed from 3 main materials, these being aluminium, brass and 316 stainless steel. The Top Frame, Pivot Sections, Columns and Base Frame are all manufactured from aluminium, which whilst being MR compatible is also lightweight, this aids the easy movement of the trolley. - Page 5 MR5502 Trolley parts reference Cot sides Push handles O2 Cylinder Holder Head end Plunger Foot end Raise height pedal Brake bar Lower height Castor (Optional Directional pedal Locking Castor - see page 9) Backrest Lever to Trendelenburg operate handle cylinder...
- Page 6 Operating Instructions Raising and Lowering Trolley There is two pedals located each side of the trolley. The green pedal (Figure 1) is the pedal that raises the height, and the red pedal decreases the height. To raise the trolley place your foot on the black and green rubber (Figure 1) and push down until you feel it stop, lift foot and allow the pedal to raise until it stops, repeat until desired height is reached, or top height is achieved.
- Page 7 Operating Instructions Trendelenburg The Trendelenburg can be operated easily by placing your hands on the push bar, at the head end, and pulling the handle up towards you with your fingers as shown (Fig 1). Push the top down to the desired angle (Maximum of 13 degrees - Fig 2) and release handle. To bring the top to a horizontal position, pull the handle which will then return the top to the horizontal position.
- Page 8 Operating Instructions Cot Sides Cot sides The trolley is fitted with raise and lower cot sides (Fig 1) these protect the patient during transportation to and from the ward. The cot sides should not be used to steer/ push the trolley. When lowering cot sides ensure nothing can become trapped between the cot sides and or the bed.
- Page 9 To release the brake place your foot underneath the break bar (Fig 2) and lift it into the middle position. The MR5502 has 1 directional locking castor to aid transportation and improve manoeuvrability. To enable the directional locking castor, place your foot underneath the break bar and lift it to...
-
Page 10: Oxygen Cylinder Holder
Operating Instructions Oxygen Cylinder Holder An Oxygen Cylinder holder is also optional, suitable for a size E cylinder, it is usually fitted underneath the blue top frame (shown in Fig 1). Oxygen Cylinder Holder Fig 1 WARNING: THE OPERATOR MUST ENSURE THE OXYGEN CYLINDER IS SAFE TO USE IN YOUR MR ENVIRONMENT. - Page 11 Operating Instructions IV Pole The trolley is fitted with 4 locations for the IV pole,1 located at each corner of the trolley. The black handle tightens and loosens the pivot section of the pole, allowing the pole to be locked vertically for use, and horizontally for storage as shown (Fig 1 and Fig 4).
- Page 12 Place a weight of over the equivalent of 34 Stone (220Kg/485lbs) onto the trolley. • Spill oil or other liquids/chemicals on the mattress • Attempt to rectify any faults on the trolley without contacting Wardray Premise Ltd • Use the trolley without a mattress •...
-
Page 13: General Maintenance
If the unit is damaged please do not attempt to repair as this could invalidate your warranty and could compromise its MR integrity and therefore safety, please call or email Wardray Premise Limited: T: +44 (0) 20 8398 9911 F: +44 (0) 20 8398 8032 E-MAIL: sales@wardray-premise.com... - Page 14 1% or 10000 parts per million chlorine combined with a detergent. Alternatively, follow your local guidelines or instructions. If any of the above give cause for concern, please contact your Wardray Premise service provider. EU Declarations of Conformity and Magnetic Testing...
