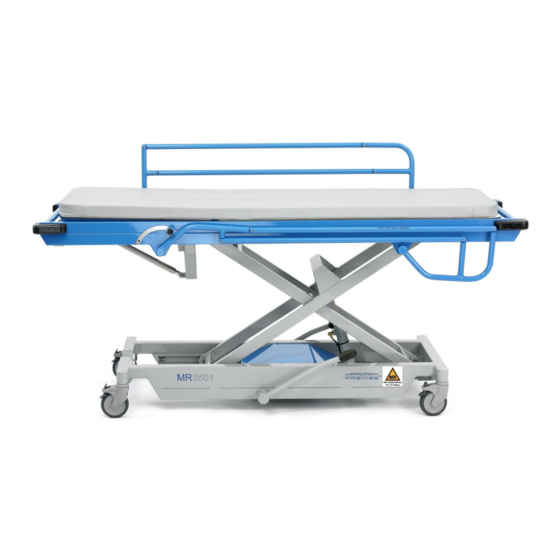

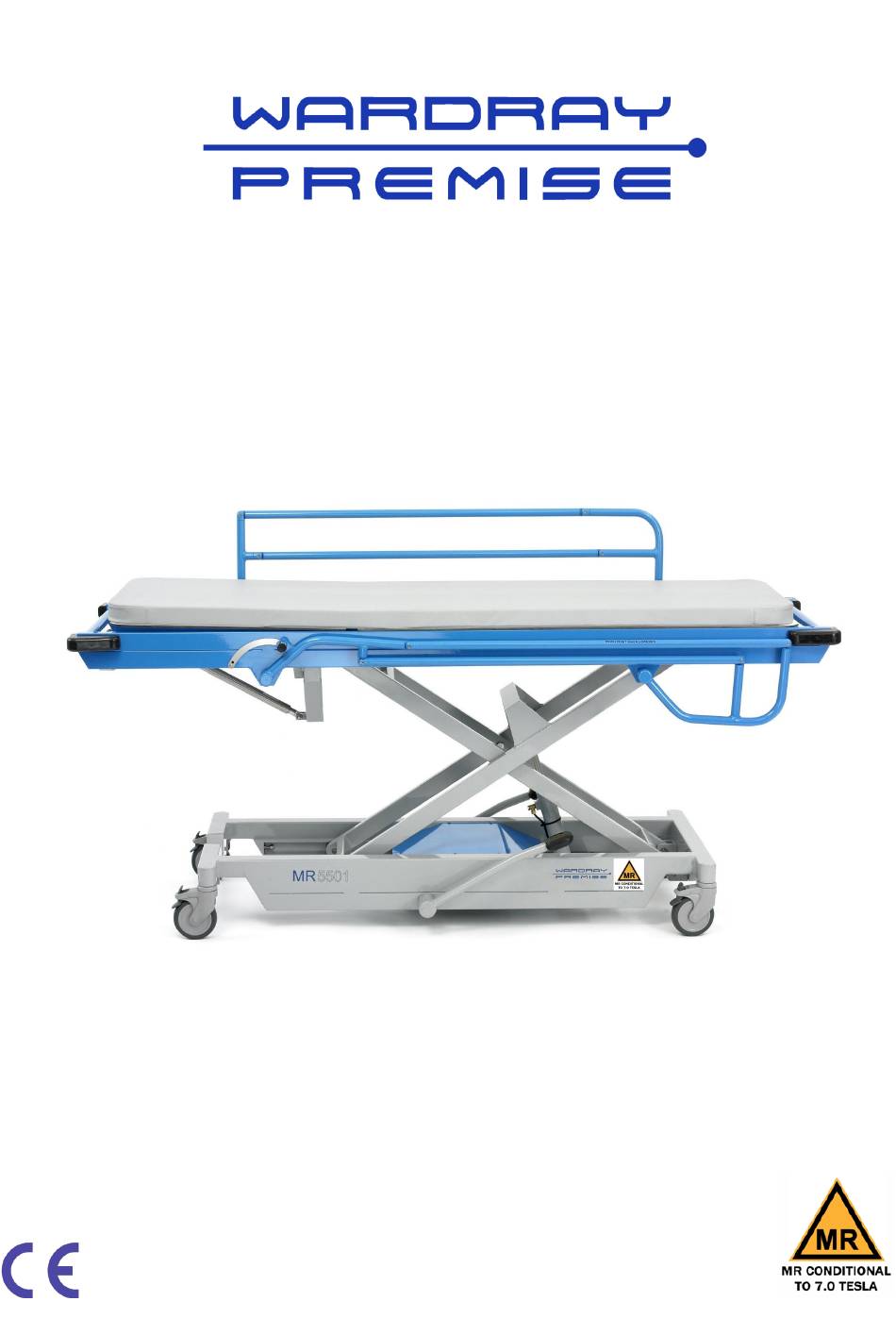

- Page 1 DECEMBER 2019 GEN.S.19/167e MR5501 MR Conditional Adjustable Height Patient Trolley OPERATORS MANUAL...
- Page 2 Thank you for purchasing this MR Conditional product. Manufactured and tested to the highest standards it is guaranteed MR Conditional to 7.0T. Our products are manufactured by Wardray Premise Ltd to BS EN ISO 13485:2016 and are CE marked. Manufacturing address:...
- Page 3 Safety Definitions for MRI as Defined by International Standard F2503-13 MR SAFE: An item that poses no known hazards resulting from exposure to any MR environment. MR SAFE items are composed of materials that are electrically non-conductive, non-metallic, and non-magnetic. MR CONDITIONAL: An item with demonstrated safety in the MR environment within defined conditions.
-
Page 4: Specification
Specification The MR5501 Trolley is designed to be MR Conditional and is manufactured and tested to the highest standards. The MR5501 is constructed from 3 main materials, these being aluminium, brass and 316 stainless steel. The Top Frame, Pivot Sections, X Frames and Base Frame are all manufactured from aluminium, which whilst being MR compatible is also lightweight, this aids the easy movement of the trolley. - Page 5 MR5501 Trolley parts reference Backrest Serial Number under backrest Backrest gas Handle to cylinder Trendelenburg position operate backrest Cot sides Corner Push bar buffers Plunger Head end Pinch points Foot end Pedal IV Pole (stored on left of head) Brake Lever...
- Page 6 Operating Instructions Raising and Lowering Trolley There is a pedal located each side of the trolley. To raise the trolley place your foot on the black rubber (Fig.1) and push down until you feel it stop, lift foot and allow the pedal to raise until it stops, repeat until desired height is reached, or top height is achieved (Fig 2).
- Page 7 Operating Instructions Trendelenburg The Trendelenburg can be operated easily by placing your hands on the push bar, at the head end, and pulling the handle up towards you with your fingers as shown (Fig 1) Push the top down to the desired angle (Maximum of 13 degrees - Fig 2) and release handle. To bring the top to a horizontal position, pull the handle which will then return the top to the horizontal position.
- Page 8 Operating Instructions Cot Sides Fig 1 The trolley is fitted with raise and lower cot sides (Fig 1) these protect the patient during transportation to and from the ward. The cot sides should not be used to steer/ push the trolley. When lowering cot sides ensure nothing can become trapped between the cot sides and or the bed.
- Page 9 Operating Instructions Castors Press down firmly to lock Press down firmly to release Fig 2 Fig 1 The trolley is fitted with four 150mm diameter, individually braked castors. To engage the brakes, place your foot on the front part of the brake lever (Fig 1) and push down firmly, the brake will lock in place and stop the castor from moving.
-
Page 10: Oxygen Cylinder Holder
Operating Instructions Oxygen Cylinder Holder An Oxygen Cylinder holder is also optional, suitable for a size E cylinder, it is usually fitted on the right hand side of the base (Fig 1). Fig 1 WARNING: THE OPERATOR MUST ENSURE THE OXYGEN CYLINDER IS SAFE TO USE IN YOUR MR ENVIRONMENT... - Page 11 Operating Instructions IV Pole The trolley is fitted with 4 locations for the IV pole,1 located at each corner of the trolley. A thumb screw allows the pole, both to be locked vertically for use, and horizontally for storage as shown (Fig 1 and Fig 2). Fig 1 Fig 2 The IV Pole is manufactured from 316 stainless steel, and is stamped with the serial No.
- Page 12 Place a weight of over the equivalent of 34 Stone (220Kg/485lbs) onto the trolley. Spill oil or other liquids/chemicals on the mattress Attempt to rectify any faults on the trolley without contacting Wardray Premise Ltd Use the trolley without a mattress ...
-
Page 13: General Maintenance
If the unit is damaged please do not attempt to repair as this could invalidate your warranty and could compromise its MR integrity and therefore safety, please call or email Wardray Premise Limited: T: +44 (0) 20 8398 9911 F: +44 (0) 20 8398 8032 E-MAIL: sales@wardray-premise.com... - Page 14 1% or 10000 parts per million chlorine combined with a detergent. Alternatively, follow your local guidelines or instructions. If any of the above give cause for concern, please contact your Wardray Premise service provider. EU Declarations of Conformity and Magnetic Testing...
