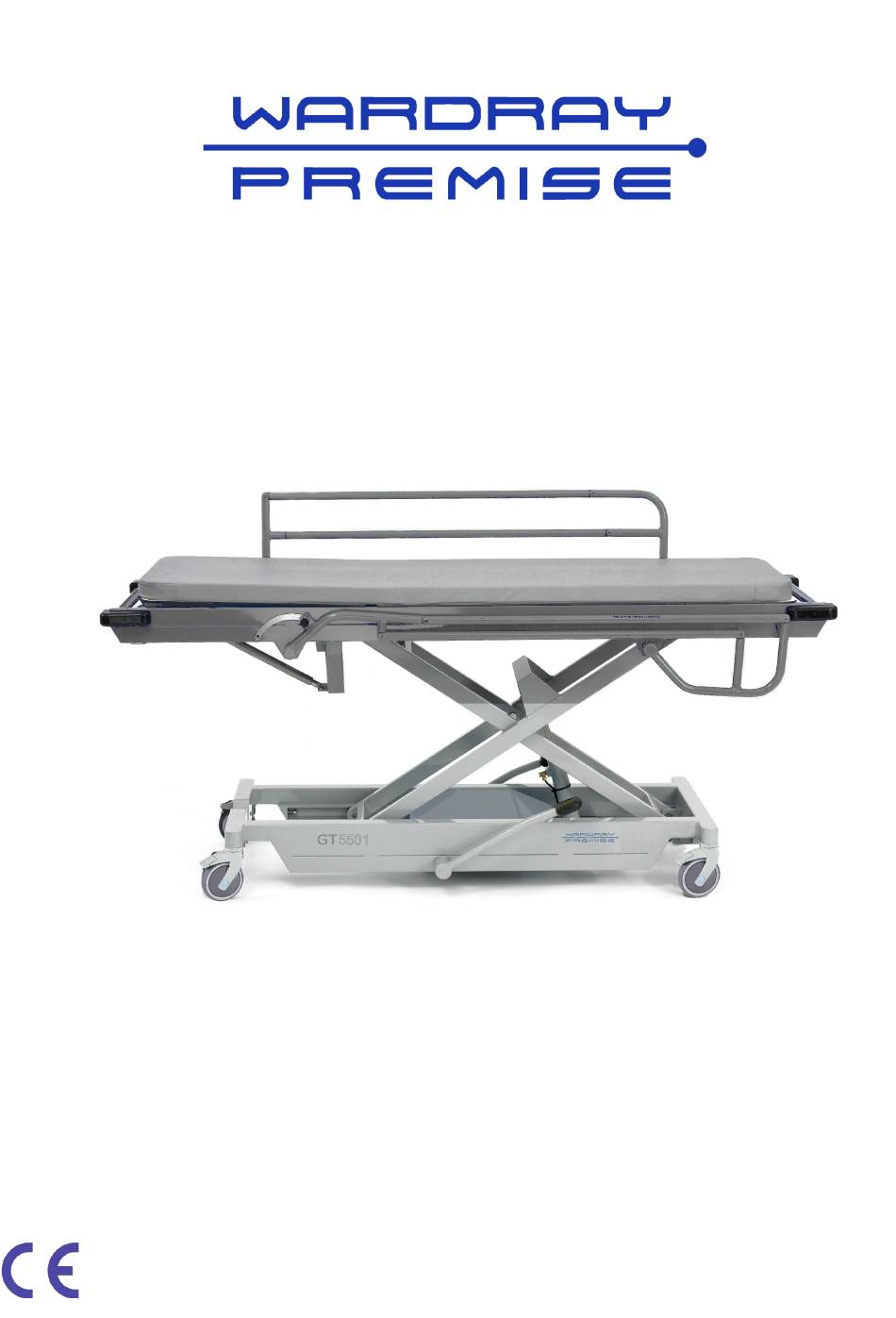

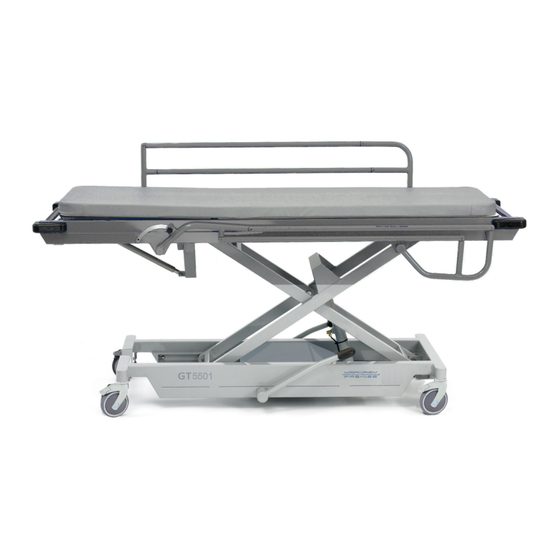

- Page 1 NOVEMBER 2019 GEN.S.19/264 GT5501 General Transport Adjustable Height Patient Trolley OPERATORS MANUAL...
- Page 2 Introduction Thank you for purchasing this X-ray product. Manufactured and tested to the highest standards. Our products are manufactured by Wardray Premise Ltd at our UK based factory to BS EN ISO 13485:2016 and are CE marked. To ensure that you obtain maximum benefit from your product, please take a few minutes to read the enclosed information regarding operation, service and maintenance.
-
Page 3: Specification
Brass and stainless steel materials are used in the manufacture of the Pivot Bolts and parts within the Hydraulic Pump and Cylinder. It is advisable that the product is inspected and serviced every 12 months by a Wardray Premise trained engineer. - Page 4 XRT5501 Trolley parts reference Backrest Serial Number under backrest Backrest gas Handle to cylinder Trendelenburg position operate backrest Cot sides Corner Push bar buffers Plunger Pinch points Head end Foot end Pedal IV Pole (stored on left of head) Brake Lever Castor (Optional Directional Locking Castor - see page 8)
- Page 5 Operating Instructions Raising and Lowering Trolley There is a pedal located each side of the trolley. To raise the trolley place your foot on the black rubber (Fig.1) and push down until you feel it stop, lift foot and allow the pedal to raise until it stops, repeat until desired height is reached, or top height is achieved (Fig 2).
- Page 6 Operating Instructions Trendelenburg The Trendelenburg can be operated easily by placing your hands on the push bar, at the head end, and pulling the handle up towards you with your fingers as shown (Fig 1) Push the top down to the desired angle (Maximum of 13 degrees - Fig 2) and release handle. To bring the top to a horizontal position, pull the handle which will then return the top to the horizontal position.
- Page 7 Operating Instructions Cot Sides Fig 1 The trolley is fitted with raise and lower cot sides (Fig 1) these protect the patient during transportation to and from the ward. The cot sides should not be used to steer/ push the trolley. When lowering cot sides ensure nothing can become trapped between the cot sides and or the bed.
- Page 8 Operating Instructions Castors Press down firmly to lock Press down firmly to release Fig 2 Fig 1 The trolley is fitted with four 150mm diameter, individually braked castors. To engage the brakes, place your foot on the front part of the brake lever (Fig 1) and push down firmly, the brake will lock in place and stop the castor from moving.
-
Page 9: Oxygen Cylinder Holder
Operating Instructions Oxygen Cylinder Holder An Oxygen Cylinder holder is also optional, suitable for a size E cylinder, it is usually fitted on the right hand side of the base (Fig 1). Fig 1 IV Pole The trolley is fitted with 4 locations for the IV pole,1 located at each corner of the trolley. A thumb screw allows the pole, both to be locked vertically for use, and horizontally for storage as shown (Fig 1 and Fig 2). - Page 10 Place a weight of over the equivalent of 34 Stone (220Kg/485lbs) onto the trolley. Spill oil or other liquids/chemicals on the mattress. Attempt to rectify any faults on the trolley without contacting Wardray Premise Ltd. Use the trolley without a mattress. ...
-
Page 11: General Maintenance
If the unit is damaged please do not attempt to repair as this could invalidate your warranty and could compromise its safety, please call or email Wardray Premise Limited: T: +44 (0) 20 8398 9911 F: +44 (0) 20 8398 8032 E-MAIL: sales@wardray-premise.com... -
Page 12: Eu Declarations Of Conformity
If required the product can be washed down with hand hot sodium hypochlorite solution up to 1% or 10000 parts per million chlorine combined with a detergent. Alternatively, follow your local guidelines or instructions. If any of the above give cause for concern, please contact your Wardray Premise service provider. EU Declarations of Conformity...
