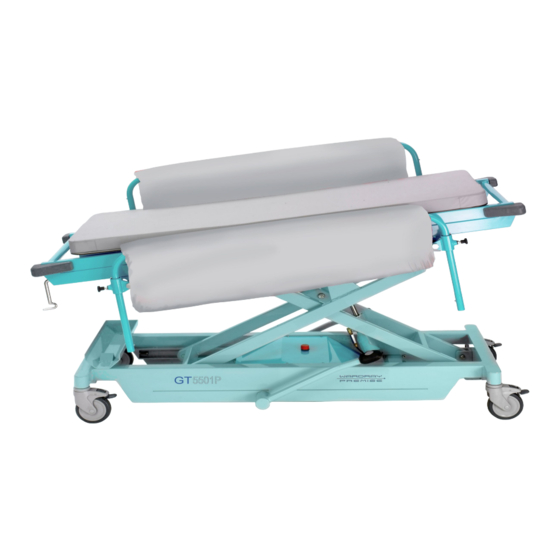

GEN.S.16/221 May 2016 GT5501P Adjustable Height Patient Trolley Paediatric Version OPERATORS MANUAL...
Page 2
Thank you for purchasing the GT5501P Paediatric Version Adjustable Height Patient Trolley. This product is manufactured and tested to the highest standards. To ensure that you obtain maximum benefit from the GT5501P trolley, please take a few minutes to read the enclosed information regarding operation, service and maintenance. After reading this manual, store in a safe place for future reference.
Page 3
Adjustment of this valve must only be carried out by Wardray Premise trained engineers. It is advisable that this product is inspected and serviced every six months by a Wardray Premise trained engineer. A service contract package is available, and details are available upon request from our Service Department on +44(0)20 8398 9911.
Page 4
Operating Instructions Trendelenburg The Trendelenburg can be operated easily by placing your hands on the push bar and pulling the handle up with your fingers as shown on fig 1.0. Push the top down to the desired angle (Max of 13 degrees) and release handle. To bring the top to a horizontal position, pull the handle which will then return the top to the horizontal position.
Page 5
Operating Instructions Raising and Lowering The top is raised and lowered by using the pedals located on either side of the trolley, by plac- ing your foot on one of the pedals as seen in Fig 3.0, push down until you feel the pedal stop (Fig 3.1), raise your foot allowing the pedal to return to its upright position, repeat process until required height is achieved.
Page 6
Operating Instructions Intravenous Pole There are 4 locations for the IV pole, 1 located at each corner of the trolley. A thumb screw allows the pole, both to be locked vertically for use and horizontally for stowage as shown in fig 5.0 &...
Page 7
Maintenance It is strongly recommended that the following checks be carried out on a weekly basis by hospital personnel to ensure trouble free operation of the trolley. Check the table top for cracks or other obvious signs of damage or contamination. Report ...
Page 8
Please be aware of all labels and warning signs on the trolley The trolley should be serviced regularly, but only by Wardray Premise trained engineers, as they will carry the correct spares to guarantee the continued safety of the trolley. Failure to comply with this will invalidate your warranty and safety of this product.
