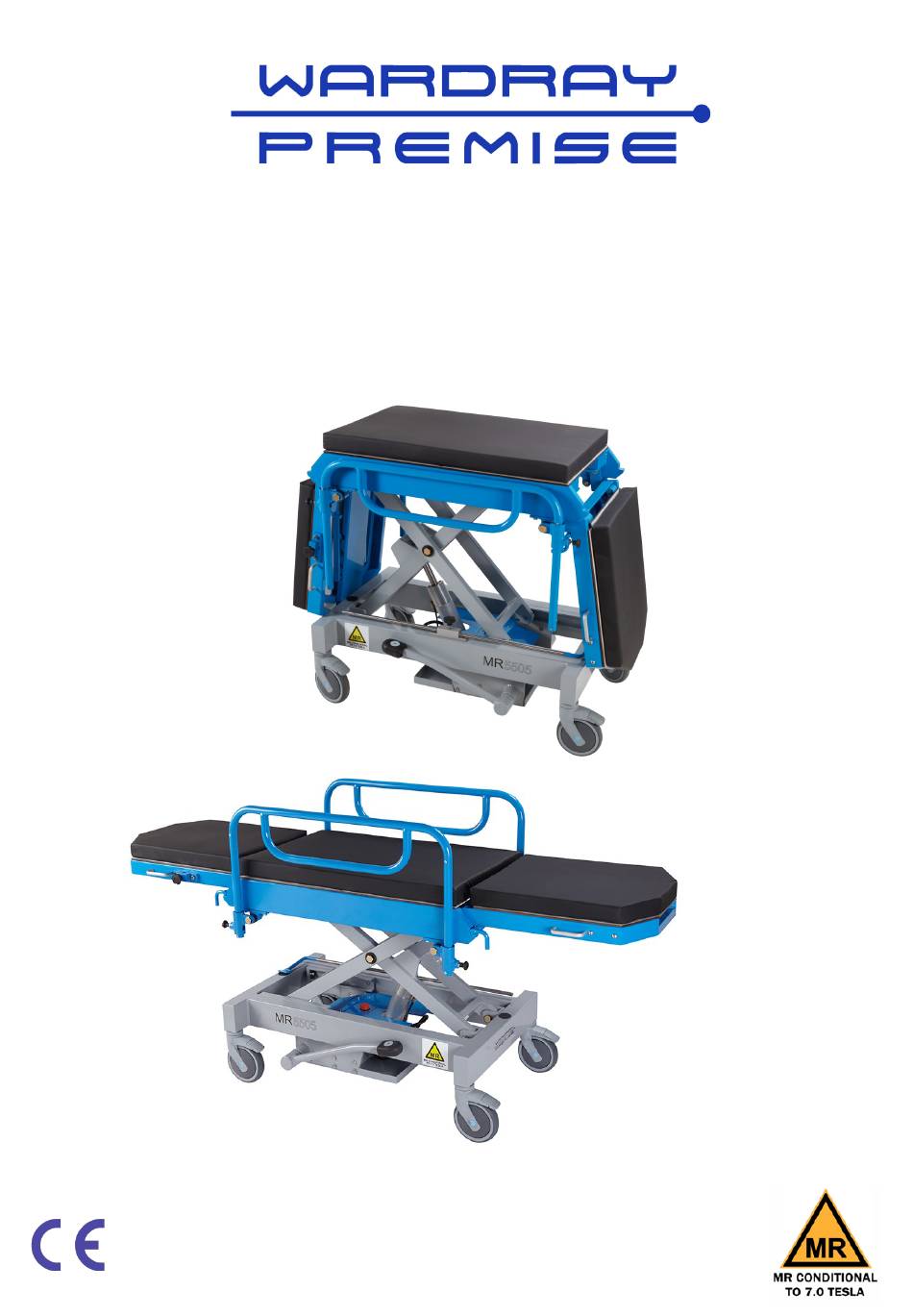

- Page 1 JANAURY 2020 GEN.S.20/301 MR5505 MR Conditional Adjustable Height Cube Trolley and Fixed Top Trolley OPERATORS MANUAL...
- Page 2 Thank you for purchasing this MR Conditional product. Manufactured and tested to the highest standards it is guaranteed MR Conditional to 7.0T. Our products are manufactured by Wardray Premise Ltd to BS EN ISO 13485:2016 and are CE marked. Manufacturing address:...
- Page 3 Safety Definitions for MRI as Defined by International Standard F2503-20 MR SAFE: An item that poses no known hazards resulting from exposure to any MR environment. MR SAFE items are composed of materials that are electrically non-conductive, non-metallic, and non-magnetic. MR CONDITIONAL: An item with demonstrated safety in the MR environment within defined conditions including conditions for the static magnetic field, the time-varying...
-
Page 4: Specification

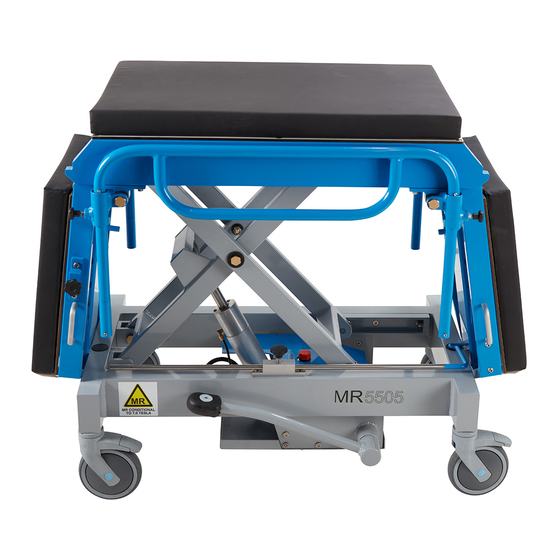

Specification The MR5505 Trolley is designed to be MR Conditional and is manufactured and tested to the highest standards. The MR5505 is constructed from 3 main materials, these being aluminium, brass and 316 stainless steel. The Top Frame, Pivot Sections, X Frames and Base frame are all manufactured from aluminium, which whilst being MR Compatible is also lightweight, this aids the easy movement of the trolley. - Page 5 MR5505 Cube Trolley parts reference Serial Number under backrest Backrest support Backrest Handle on pivot View behind backrest section Lobe knob Plunger for IV pole Pivot section Pivot section Pull handle Cot sides Plunger IV Pole (stored) Castor Pedal Brake Lever...
- Page 6 MR5505 Fixed Top Trolley parts reference Serial Number under backrest Backrest support Backrest View behind backrest Lobe knob for IV pole Cot sides Plunger Plunger IV Pole (stored) Brake Lever Castor Pedal IV Pole stored on left hand side of trolley...
- Page 7 Operating Instructions Raising and Lowering Trolley There is a pedal located each side of the trolley. To raise the trolley place your foot on the black rubber (Fig.1) and push down until you feel it stop, lift foot and allow the pedal to raise until it stops, repeat until desired height is reached, or top height is achieved.
- Page 8 Operating Instructions - Cube Trolley Pivot Sections When the Cube Trolley is not in use it folds away into a handy size; 1040mm (L) x 575mm (W) x 630mm (H). This is particularly convenient when space is at a premium. The Cube Trolley has two pivot sections one on each end (Fig 1).
- Page 9 Operating Instructions - Cube Trolley and Fixed Top Trolley Backrest Both ends of the trolley have a manual backrest. (Fig 1) Fig 1 To raise the backrest place your hand into the pocket (Fig 2) at the end of the pivot section and lift, positioning backrest support into one of the 3 set heights (Fig 3).
- Page 10 Operating Instructions Fig 1 Cot Sides The trolley is fitted with raise and lower cot sides (Fig 1) these protect the patient during transportation to and from the ward. The cot sides should not be used to steer/push the trolley. Depending on the design of the trolley, it will be fitted with one or other of the plungers indicated below;...
- Page 11 Operating Instructions Raising and Lowering Trolley There is a pedal located each side of the trolley (Fig.1). To raise the trolley place your foot on the black rubber (Fig.2) and push down until you feel it stop, lift foot and allow the pedal to raise until it stops, repeat until desired height is reached, or top height is achieved (Fig 3).
- Page 12 Operating Instructions Castors Press down firmly to lock Press down firmly to release Fig 2 Fig 1 The trolley is fitted with four 150mm diameter, individually braked castors. To engage the brakes, place your foot on the front part of the brake lever (Fig 1) and push down firmly, the brake will lock in place and stop the castor from moving.
- Page 13 Operating Instructions IV Pole The trolley is fitted with a single hook IV Pole. (Fig 1) There are two brackets, one on each pivot section that the IV Pole can locate into. The IV Pole can be raised and lowered to any height and locked into position by means of a lobe knob.
-
Page 14: Do's And Don'ts
Sections. Spill oil or other liquids/chemicals on the mattress. Attempt to rectify any faults on the trolley without contacting Wardray Premise Ltd. Use the trolley without a mattress. Do not allow staff or patients to fix or store any items on the trolley unless you have verified ... -
Page 15: General Maintenance
If the unit is damaged please do not attempt to repair as this could invalidate your warranty and could compromise its MR integrity and therefore safety, please call or email Wardray Premise Limited: T: +44 (0) 20 8398 9911 F: +44 (0) 20 8398 8032 E-MAIL: sales@wardray-premise.com... - Page 16 10000 parts per million chlorine combined with a detergent. Alternatively, follow your local guidelines or instructions. If any of the above give cause for concern, please contact your Wardray Premise service provider. EU Declarations of Conformity and Magnetic Testing...
