- Page 1 Eclipse Ultra E L E C T R I C S C O O T E R USER MANUAL...
- Page 4 This user manual will help you assemble and operate your new electric scooter. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s very important that you get parental permission before riding your electric scooter.
- Page 5 Don’t ride until you read this electric scooter ALWAYS wear a helmet when riding your Make sure your hoverboard has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not rider the scooter under the influence of drugs or alcohol. Always respect pedestrians.
-
Page 6: Warning Message
Abuse - We do not cover physical damage due to negligent care and extreme riding. Whenever you ride the GOTRAX electric scooter, you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk. - Page 7 10. Never exceed the 264lbs (120kg) maximum load rating. 11. The electric scooter should never be used by children under the age of 13. 11. Maximum Speed - Your electric scooter goes the maximum speed of 20mph (32km/h).
- Page 8 You should find each of these item in your box: Electric scooter Console & Handlebars Approved Power Adapter/Charging Unit 4mm Allen Wrench Tire Gauge Pipe Screwa(x6) Remove all packaging material, then inspect each item for any accidental damage that may have occurred during shipping.

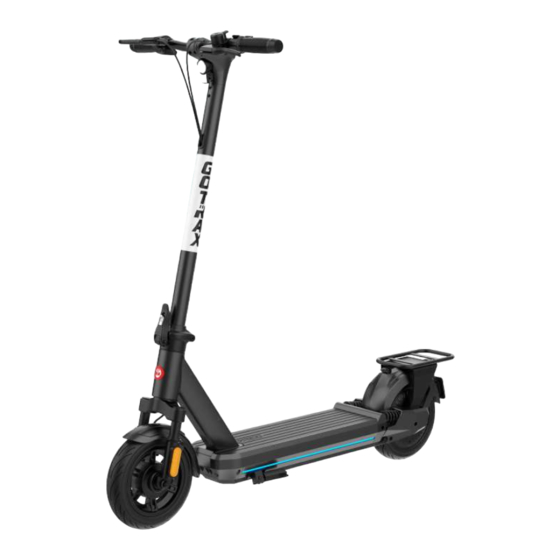

- Page 9 Console Bell Accelerator Handle bar Handle Brake Headlight Tiller Rear light/ Brake light Safety latch Folding mechanism Rear basket Kickstand Pedal Motor Rear double Rear double shock absorber shock absorber Built-in battery Charger port The electric scooter comes partially assembled.
- Page 10 Top Speed: 20 mph Distance per Charge: 28-32 miles Weight Range up to: 264lbs Battery Type: 48V 15Ah Battery Charger: DC 54.6V 2.5A Charge Time: 6.5 hours Motor Power: Rated Power 500W Peak Power 750W Power Requirements: AC 100~240V 50/60Hz 2.5A...
- Page 11 Assemble Your Scooter TOOL REQUIREMENTS: 4mm Allen Wrench(in the package). Take out the scooter, console, and assembly Lift the tiller upright (as shown in the figure). tools (wrench and screws) from the box. Once the scooter is locked in the upright Check the parts list to confirm that the parts position, verify by gently trying to fold.
-
Page 12: Charge Your Scooter
Charge Your Scooter Before using the scooter, you must fully charge the battery. Open the rubber charging port cover. Insert the charging plug into the port. The charger box will have a green light when fully charged and a red light when charging. When you are done charging be sure cover the charging port to keep it clear of dust and debris. - Page 13 Scooter Console Funtions On/OFF machine: Long press 3 seconds the power button to turn on/o , the buzzer will “di” sound, and the scooter will shut down automatically after 5 minutes without any oration. Shift gears: Press the power button to change gears. The speed is 0-3 MPH in pedestrian mode in 1st gear ( ), 0-15.5 MPH in icon speed in 2nd gear (D), and 0-20 MPH in icon speed in 3rd gear (S).
- Page 14 2. Turn it on again with password status, enter the correct password and press the power button 4 times within 10 seconds to enter the password change mode , on the change password mode even 4 times the power button, or 1 minutes without any operation , the new password will not saved and exit the mode , even in cipher amending mode according to the power button twice, save the modified password and exit the mode.
-
Page 15: Riding Tips
Riding Tips You will want to start riding your electric scooter with one foot on the platfrom and one foot on the ground. Use your foot on ground to push o and at the same time, press the throttle button to begin movement. Press the handbrake to slow down or stop. - Page 16 Putting Your Scooter Away/Folding Before folding the scooter, make sure that the scooter is powered o . Folding: Ensure the electric scooter is powered o , press the lock buckle as figure shows and pull down the lever. Fold the tiller down towards the rear fender and lock the tiller hook to the fender hook buckle.
-
Page 17: Maintenance And Repair
Maintenance & Repair If you regularly clean and maintain your electric scooter, it will extend its life. Cleaning and storage: If the scooter is dirty, wipe it clean with a soft damp cloth. Brake Adjustments & Service: If you notice you need brake adjustments or any service on your scooter, contact our customer service team and we will adjust and repair your scooter. - Page 18 Tightening the Tiller: If you notice that the tiller is loose or wiggles while riding, you can tighten the screws. Open the plastic cover, and use the Allen wrench to tighten the screws as shown in the figure below. (Figure 1) Brake adjustment: If the brake is too tight against the brake, turn the brake cable nut counterclockwise to loosen the brake cable, if the brake is too loose, turn the brake wcable nut clockwise to tighten the brake cable.
-
Page 19: Battery Information
Battery Information Only use the approved GOTRAX power adapter to charge your scooter, others may cause risk of fire & equipment may be damaged. Improper disposal of used batteries may seriously pollute the environment. Please comply with local disposal regulations. -
Page 20: Warranty
Warranty Please contact our customer service team if you are experiencing problems or need more detailed information. US team after-sales email: support@gotrax.com CA team after-sales email: canada@gotrax.com Users should operate in accordance with the product manual. In case of any performance fault caused by production quality, the company shall perform the obligations of the three guarantees in accordance with the provisions of relevant laws and regulations of the state. - Page 22 (US) GOLABS, INC GOTRAX.com 2201 Luna Rd. Carrollton, TX 75006 (CA) Tao Motor Canada Inc. 170 Bartor Road, Unit 1 North York, Ontario M9M 2W6, Canada.
