LEGRAND Arteor 5 742 62 Quick Start Manual

Arteor with Netatmo
TM
Connected wireless control for roller shutters
and orientable sun shades

1. USE

Zone or centralised control for wired roller shutters and orientable sun
shades switches.
• Fixes directly on the wall or screws onto a flush-mounting box.
Multi-gang versions can be combined with other wiring accessories.
• Fits on a piece of furniture (movable).
Can control up to 20 roller shutters switches.

2. RANGE

Description

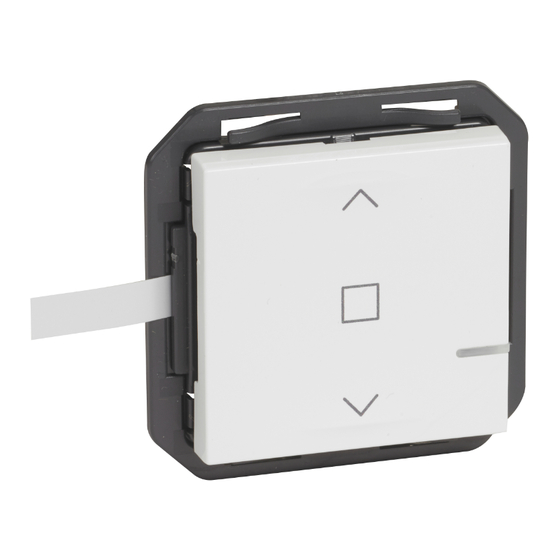

Connected wireless control for roller shutters and orientable sun
shades (OSS).
Supplied with battery.
Equipped with an LED indicator (configuration) and a RESET button
(hidden) used to return to factory settings.
Support frame and repositionable self-adhesive fixings supplied.
To be equipped with plate.

3. DIMENSIONS (mm)

B
A
56 56
Technical data sheet: F03675EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: 33 (0)5 55 06 87 87 - Fax: 33 (0)5 55 06 88 88
www.legrand.com
White Magnesium
5 742 62 5 742 82
C
B C
10.5

5. OPERATION

Integrated time delay for up/down inversion: 500 ms
STOP
Updated:
Cat. Nos: 5 742 62/82
Up when pressed at the top:
- short press raises to the top
- long press raises until released
- OSS mode: long press tilts slats
LED indicator:
- useful during installation
- locator function can be activated
frome the Home + Control app
Down when pressed at the bottom:
- short press lowers to the bottom
- long press lowers until released
- OSS mode: long press tilts slats
RESET button
used to return to factory settings
Created: 27/06/2022
1/2
