Arteor
TM

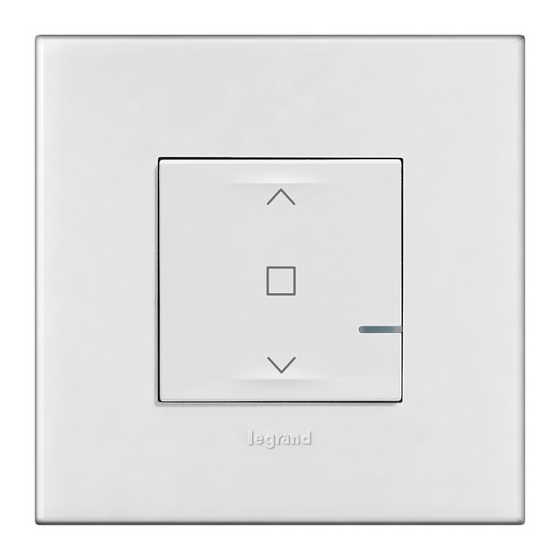

Connected wireless control for roller shutters/curtains
1. USE
Zone or centralised control for wired roller shutter/curtains switches.
• Fixes directly on the wall or screws onto a flush-mounting box.
• Fits on a piece of furniture (movable).
Can control up to 20 roller shutter/curtains switches.
2. RANGE
Connected wireless control for roller shutters/curtains.
Supplied with secable support frame, rocker plate and a battery.
Equipped with an LED indicator (configuration) and a RESET button (hidden) used
to return to factory settings.
Repositionable self-adhesive fixings (x 4 supplied).

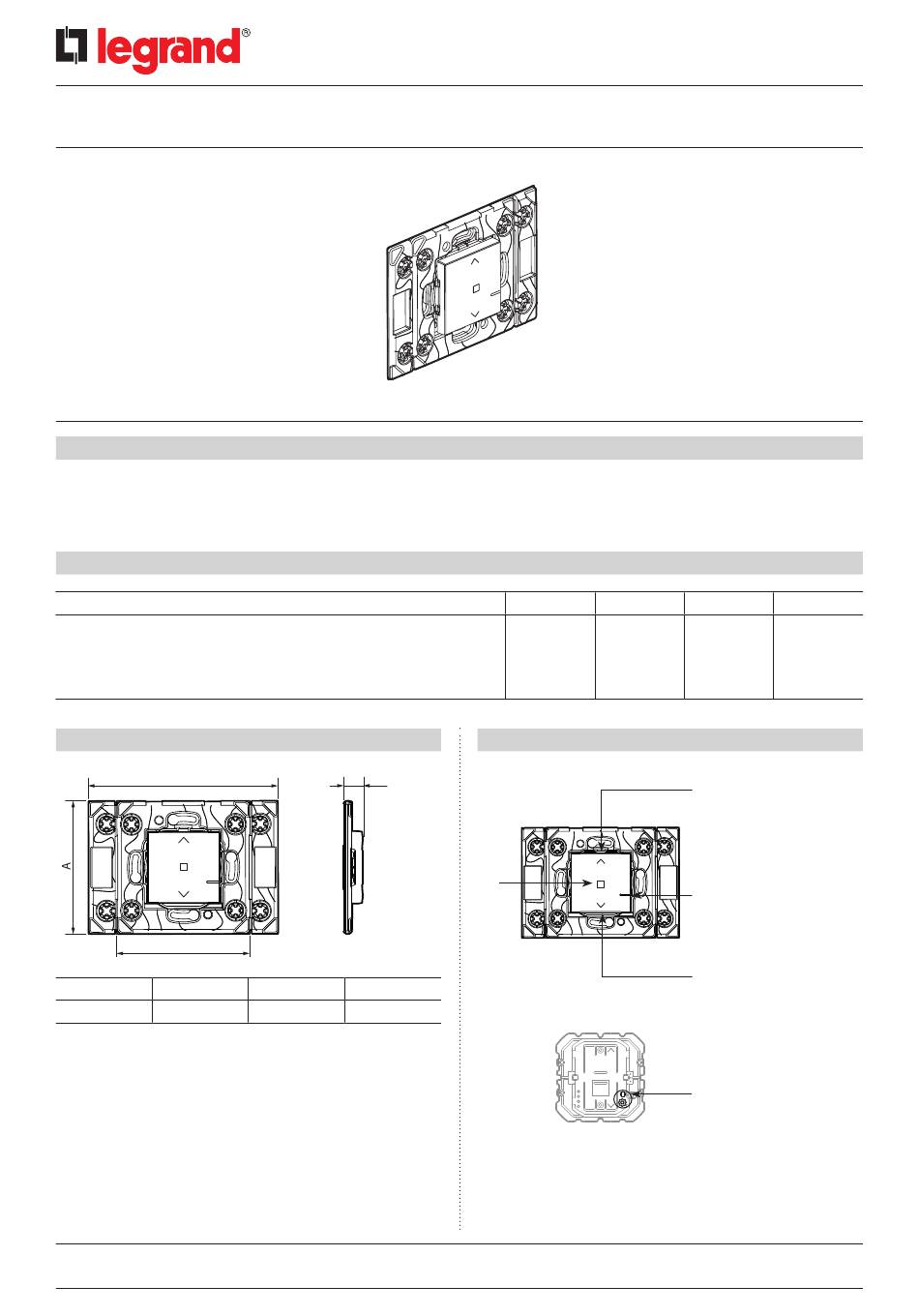

3. DIMENSIONS (mm)
B
B'
A B
82 116.5
Technical data sheet: F02623EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
Description
C
B' C
82 12
White Champagne
5 742 07
4. OPERATION
STOP
Updated:
Cat. Nos: 5 742 07/16/25/34
Magnesium
5 742 34 5 742 25
Up when pressed at the top:
- short press raises to the top
- long press raises until released
LED indicator:
- useful during installation
- when pressed, burst flashes red if the battery
power is low
Down when pressed at the bottom:
- short press lowers to the bottom
- long press lowers until released
RESET button
used to return to factory settings
Created: 17/04/2018
Soft Alu
5 742 16
1/2
