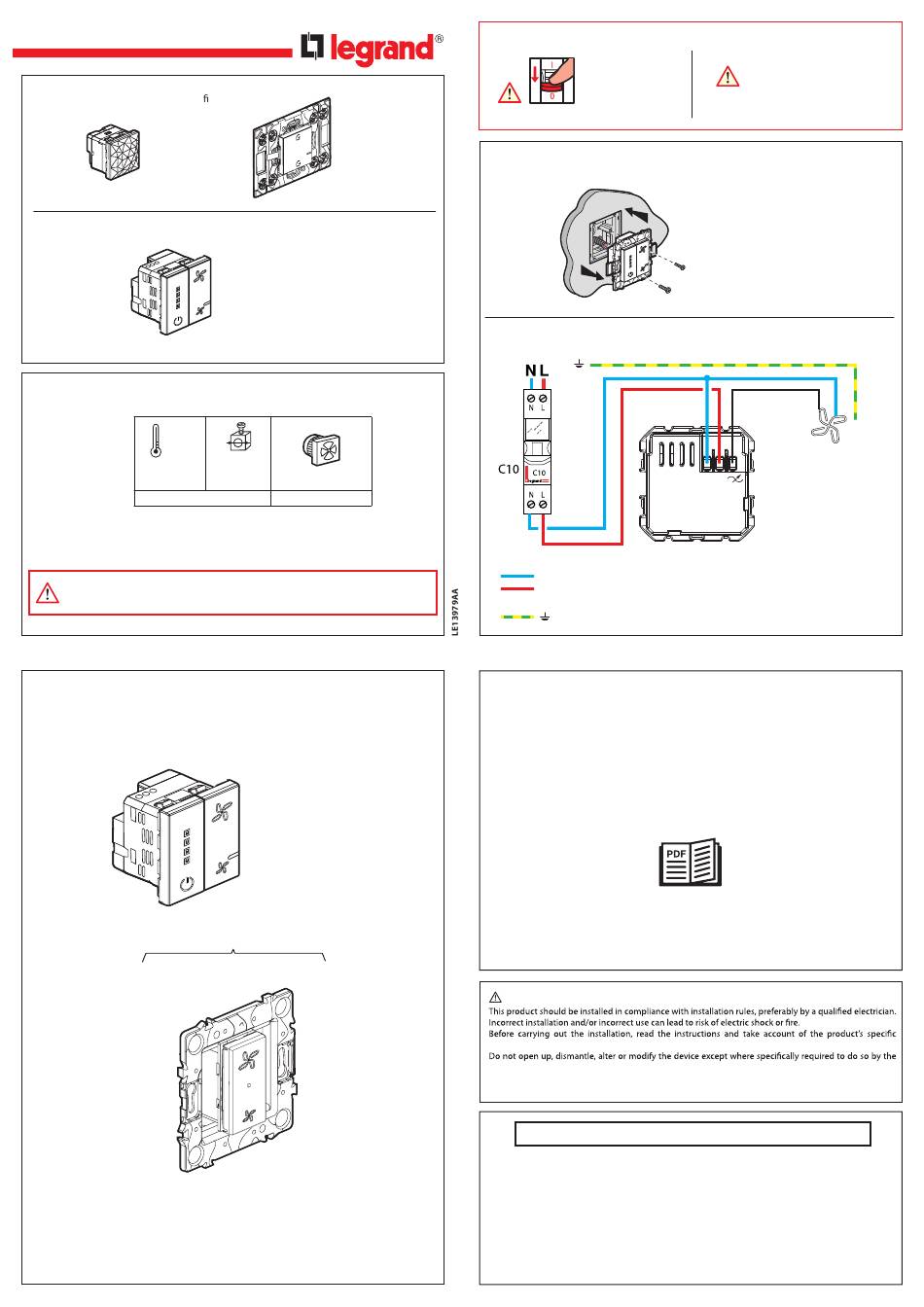

LEGRAND 5 742 48 Quick Start Manual

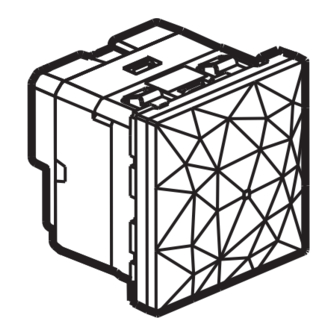

Connected fan controller 4 speeds
5 742 48/49/50/51
This product is a connected accessory which requires you to buy and install the Arteor
with Netatmo connected starter pack rst.
* Gateway
Pack contents:
Characteristics
+ 35° C
+ 5° C
240 VAC
50/60 Hz
240 VAC
Compatible with all asynchronous fan engines AC 240V~ 100 VA / 100 W max.
Not compatible with DC engines (brushless)
Before starting : wiring precautions
If you want to manage your fan controller with one or more additional controls,
use only the following products:
x 1
or several
Wireless fan control for all additional points of control (not included in this pack).
* Leave home/back
home general control
(* not included in this pack)
Connected fan controller
4 speeds
2 x 1.5 mm
2
1 x 2.5 mm
2
Max. 100 VA / 100 W
Connected fan controller
4 speeds
AND
3

Necessary safety precautions

Switch OFF the power
at the main circuit
breaker
OFF

Install the connected Fan controller



Wire the connected Fan controller
N (neutral) = blue
L (live) = any except blue
and green/yellow
(earth) = green/yellow

To add a connected product to your connected installation, you should
follow the instructions:
- in the Legrand Home + Control application (Settings/Add a new product section)
- or consult the user manual on legrand.com
www.legrand.com/reference/574248
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
Safety instructions
mounting location.
instructions. All Legrand products must be opened and repaired exclusively by personnel trained and
approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights
to replacement and guarantees. Use only Legrand brand accessories.
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
declares that the radio-electric equipment referred to in these
instructions complies with directive 2014/53/EU.
The full text of the EU declaration of conformity
is available on the following website :
www.legrandoc.com

Make sure that the power
is OFF before continuing
with the installation.
Remove the existing Fan switch
N L
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
2
Legrand
