LEGRAND 0 677 886L Quick Start Manual

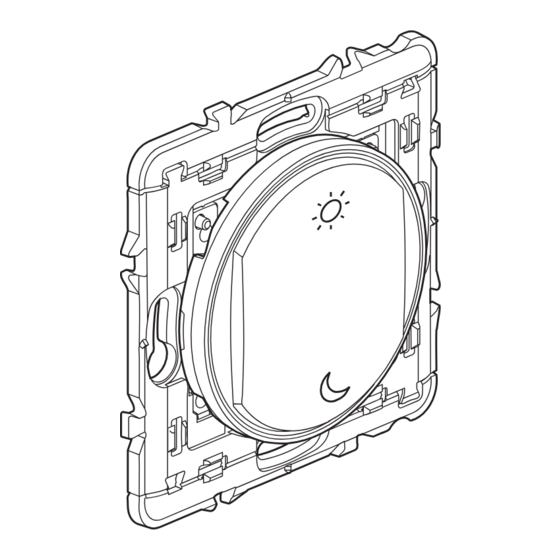

Wireless and batteryless Wake Up/Sleep control
1. USE
Wireless, batteryless control for lighting scenes fonction.
Controls the connected lighting micromodules, socket-outlets, dimmer-
switches and roler shutters.
• Can be fixed directly to a wall, screwed to an electric flush mounting
box or placed on a cabinet.
• Can be combined in multigangs with other wiring devices except in
Arteor.
• Can control up to 20 connected products
2. RANGE
Delivered without plate.
Equipped with a button used to configure the product.
Repositionable self-adhesive stickers (x2 supplied)
RANGE
CELIANE
CELIANE Titanium
CELIANE
Graphite
MOSAIC
DOOXIE
ARTEOR Aluminium
ARTEOR
ARTEOR Champagne
ARTEOR Magnesium
VALENA NEXT
VALENA NEXT
Aluminium
VALENA NEXT
Fiche technique : S000113317EN-00
SOMMAIRE
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88
www.legrand.com
COLOR CAT. NUMBER
White 0 648 84L
0 648 85L
0 677 86L
White 0 770 57L
White 6 000 91L
5 742 93
White 5 742 87
5 748 36
5 743 22
White 7 418 03L
7 418 33L
Black 7 418 63L
Catalogue number(s) : 0 648 84L/85L - 0 677 886L
3. DIMENSIONS (MM)
Mise à jour le :
0 770 57L - 6 000 91L
5 742 87/93 - 5 743 22 - 5 748 36
7 418 03L/33L/63L
ARTEOR
CELIANE
MOSAIC/VALENA NEXT
Créée le : 07/10/2020
1/3
