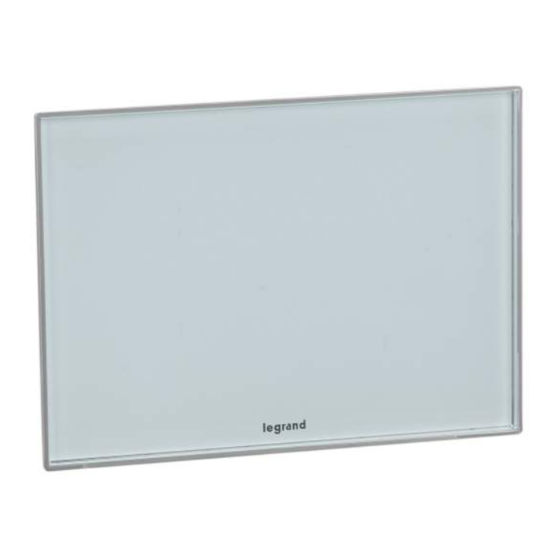

Touch control
Description
This control is a SCS control, which traditional pushbuttons are replaced by
capacitive sensors. Moving the finger close to a sensor is the same as pressing a
pushbutton.
The device can be used to perform the functions typical of a special SCS control by
simply moving a finger close to the surface. It is produced in the 3 module flush-
mounting version, 6 keys respectively. Each zone corresponding to a key is marked
at the centre by a light blue LED. When the user moves a finger close to the zone, its
intensity increases sensibly, and remains so until the finger is moved away again.
Therefore, the LEDs can have two different levels of light intensity. The brightness
level of the LEDs can be changed using the appropriate adjustment pushbutton.
The control may operate in four different modes: self-learning, scenarios, swivelling,
CEN.
- The self-learning mode (cyclic or non-cyclic) allows to associate to each key
most of the typical automation system, sound system, video door entry system
(staircase light, open-door, call to the floor, door lock, and cycling of cameras)
functions, in additional to auxiliary controls.
- The scenario mode can be used to recall, program and delete 6 scenarios of a
scenario module.
- The swivelling mode can be used to drive the 3 consecutive light points or rolling
shutters (or rooms or groups)
- The CEN mode enables using the control with the scenario programmer
(item 0035 65)
In order to clean the device, it is possible to temporarily disable the sensitive zones
by pressing two diagonally opposite zones at the same time. The LEDs will flash in
sequence. Normal operation is automatically reinstated after 10 seconds.
Technical data
Power supply:
BUS 18 – 27 Vdc
Max. consumption :
20 mA with configurator in INT= OFF,4
25 mA with configurator in INT= 0.2
35 mA with configurator in INT=1.3
Operating temperature:
0 – 40 °C
Depth:
18.3 mm

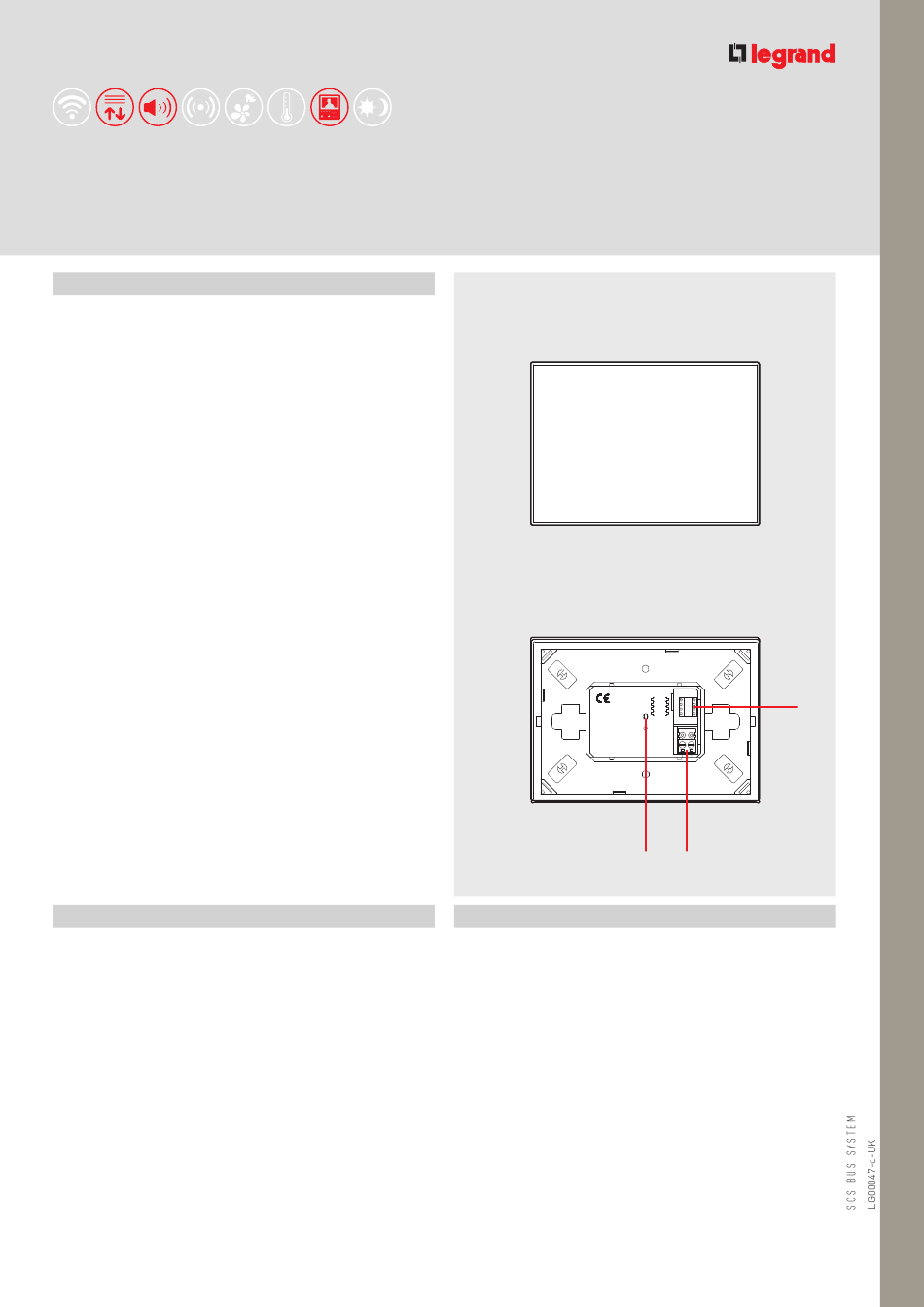

Legend
1. Configurator housing
2. BUS
3. LED intensity programming and adjustment pushbutton
T E C H N I C A L S H E E T
5739 12
5739 13
1
A
PL
M
INT
P
3
2
1
