THORLABS EXULUS-4K1 Instructions Manual page 9

Click to Enlarge

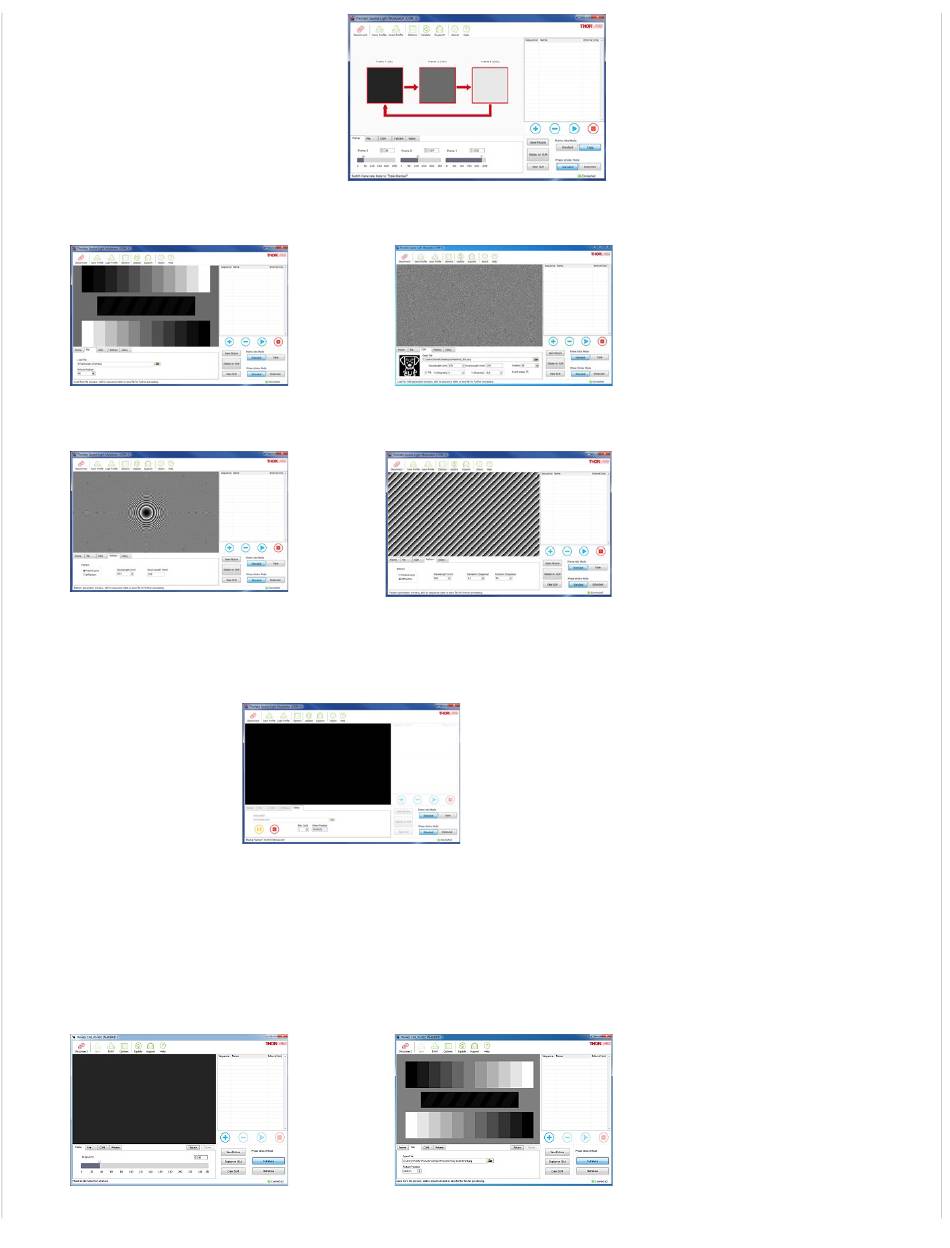

File Tab: Upload a user-defined pattern in PNG,
JPEG, or BMP format.
Click to Enlarge
Pattern Tab for Fresnel Lens Generation: Sets
the SLM panel to focus the reflected light at a
user-selected wavelength and focal length.
Video Tab: User-uploaded video can be played on
the SLM panel. In standard mode, grayscale video
can be played at a 60 Hz (EXULUS-HD1, EXULUS-
frame rate. In triple mode (EXULUS-HD1 only), a
"Thorlabs EXULUS" Software Package for EXULUS-HD2, EXULUS-HD3, EXULUS-HD4,
EXULUS-HD2HP, and EXULUS-HD3HP
Click to Enlarge
Frame Tab in Standard Frame Rate Mode:
Frame Tab in Triple Frame Rate Mode (EXULUS-HD1):
Each of three successive frames (at 180 fps) can have a
CGH Tab: Convert a user-defined image into a
holographic pattern. For more details, please see
Pattern Tab for Diffraction Grating Generation:
Sets the SLM panel to diffract the reflected light with
user-selected wavelength, deviation angle, and
grating rotation angle. For more infromation about
the diffraction efficiency of different patterns, please
Click to Enlarge
HD2, and EXULUS-HD4) or 30 Hz (EXULUS-4K1)
color video will play the R, G, B channels in
succession at a 180 Hz frame rate.
File Tab: Upload a user-defined pattern in PNG,
Click to Enlarge
different gray level.
Click to Enlarge
the App Note tab.
Click to Enlarge
see the Specs tab.
Click to Enlarge
