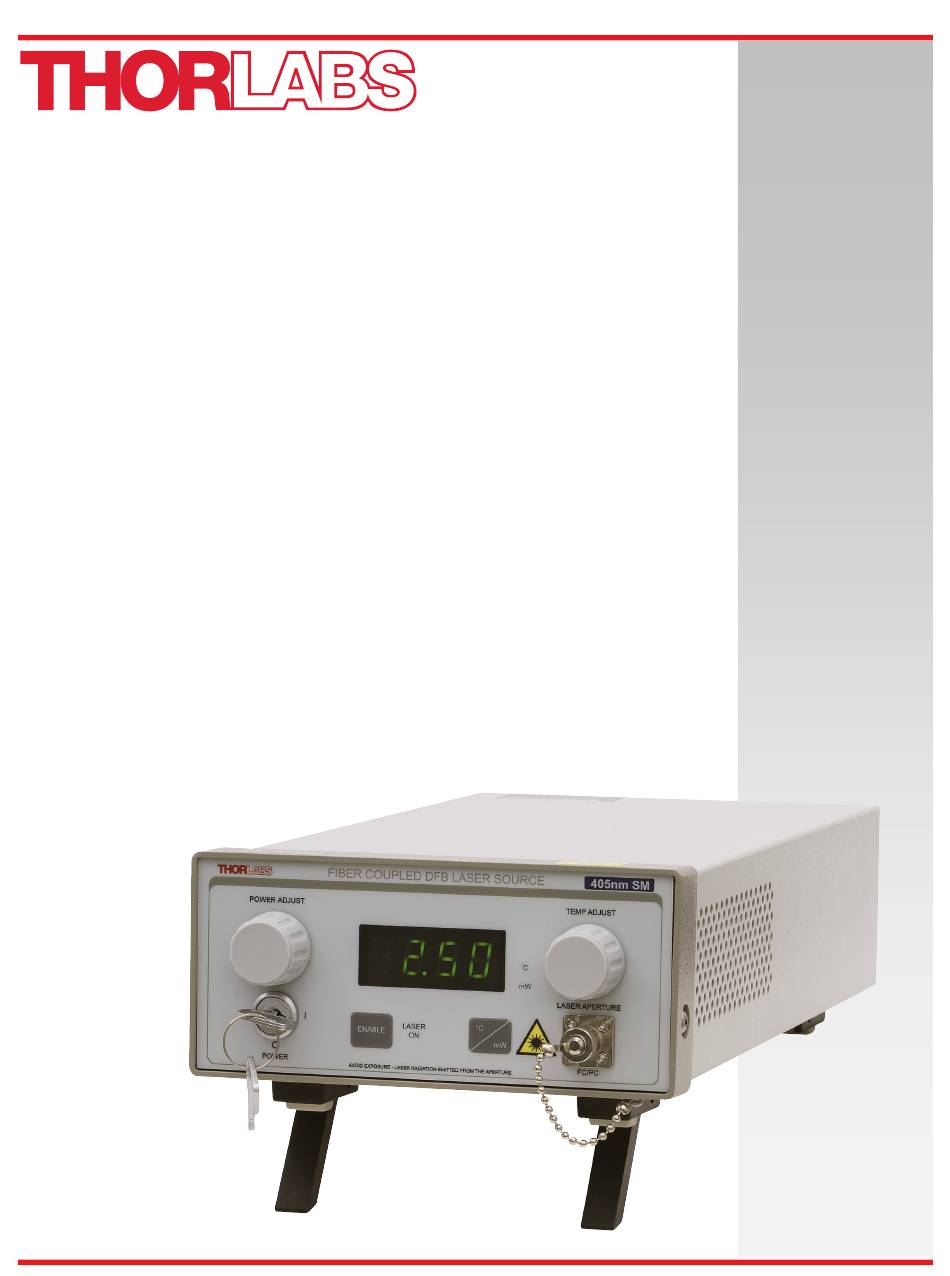

- Page 1 S3FC405, S3FC473, S3FC520 Fiber-Coupled Laser Source User Guide...
-
Page 2: Table Of Contents
Making the Safety Interlock Connections ................ 9 Chapter 7 General Maintenance ......................10 7.1. Cleaning ......................... 10 7.2. Connector Cleaning ...................... 10 Chapter 8 Specifications ........................11 Chapter 9 Mechanical Drawing ......................12 Chapter 10 FCC EMC Certifocate of Compliance ................13 Chapter 11 Regulatory ...........................14 Chapter 12 Thorlabs Worldwide Contacts ..................15 ... -
Page 3: Chapter 1 Warning Symbol Definitions
Fiber Coupled Laser Source Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal... -
Page 4: Chapter 2 Safety
This unit must not be operated in explosive environments. Thorlabs provides the proper power input cable for use in the United States. If using this unit anywhere else, the user will need to supply a properly grounded power cable to power the unit. -
Page 5: Chapter 3 Description
Chapter 3 Description The Thorlabs Fiber Coupled Laser Sources provide easy coupling and simple control of laser diode driven fiber optics. These laser sources are available in three versions: two temperature controlled and one non-temperature controlled. The Fabry-Perot temperature controlled version (S3FC series) comes equipped with a thermo-electric cooler to stabilize the output wavelength and comes in three wavelengths: 405 nm, 473 nm, and 520 nm. -
Page 6: Chapter 4 Setup
Setting the AC Line Voltage and Installing Fuses Your S3FC Series Laser Source has been shipped from Thorlabs configured for 115 VAC operation. If you are planning to operate your unit using a 220/230 VAC input, or need to replace an open fuse, you must perform the following procedure. -
Page 7: Initial Set-Up
Fiber Coupled Laser Source Chapter 4: Setup 4.2. Initial Set-up Perform the following steps for the initial set-up. 1. Determine the AC line voltage the unit will be connected to (either 115 VAC or 230 VAC) and set the AC Line Voltage Selector Switch to the appropriate position and install the proper fuse. -
Page 8: Chapter 5 Operation

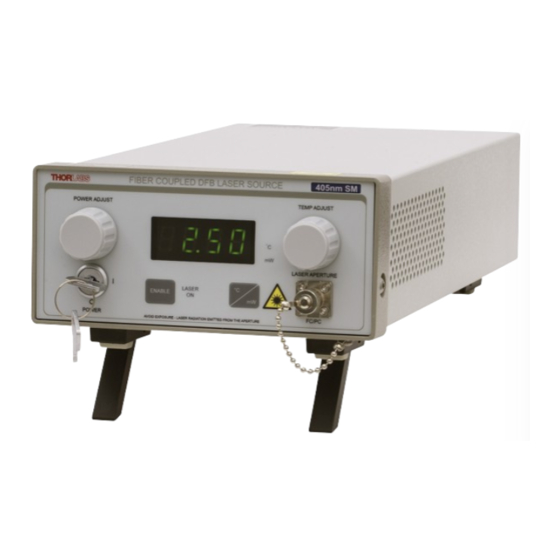

Fiber Coupled Laser Source Chapter 5: Operation Chapter 5 Operation 5.1. Front and Back Panel Overview Temperature Adjust Knob 3½ Digit Display Power Adjust Knob Laser Output FC/PC fiber optic Keylock Power connector Switch Turn on power to the unit. Key only removes when off Laser Output... -
Page 9: Turning On The Source
Fiber Coupled Laser Source Chapter 5: Operation 5.2. Turning On the Source SHOCK WARNING High voltage inside. To avoid electrical shock, before powering unit, make sure that the protective conductor of the 3-conductor power cord is correctly connected to the protective earth contact of the socket outlet. -
Page 10: Modulating The Laser Output
Fiber Coupled Laser Source Chapter 5: Operation 5.6. Modulating the Laser Output The MOD IN input can be used to modulate the laser output, or set the laser output remotely using a +5 V power source. The 5 V maximum input corresponds to the maximum calibrated power of the S3 Series Laser Sources, which operate using a constant current drive technique and causes the actual output power to be dependent on the set operating temperature. -
Page 11: Chapter 6 Making The Safety Interlock Connections
ENABLE switch. All units shipped from Thorlabs are configured with a shorting device installed in the Interlock connector. If you are not going to use this feature then you can leave the shorting device installed and the unit will operate normally as described in the procedures above. -
Page 12: Chapter 7 General Maintenance
Chapter 7 General Maintenance Aside from the AC Input fuse there are no user serviceable parts in this product. If you suspect something has failed on the unit, please contact Thorlabs for advice on returning the unit for evaluation. 7.1. Cleaning The unit can be cleaned using a soft, slightly damp cloth. -
Page 13: Chapter 8 Specifications
Fiber Coupled Laser Source Chapter 8: Specifications Chapter 8 Specifications Item # S3FC405 S3FC473 S3FC520 Wavelength 405 nm 473 nm 520 nm Min. 2.0 mW 5.0 mW 4.0 mW Full Output Power Typ. 6.0 mW 20.0 mW 8.0 mW 15 min: ±0.05 dB, 24 hr: ±0.1 dB Stability (After 1 hr Warm-up at 25 ±... -
Page 14: Chapter 9 Mechanical Drawing
Fiber Coupled Laser Source Chapter 9: Mechanical Drawing Chapter 9 Mechanical Drawing 5.76" (146.4 mm) 2.59" 3.06" (65.7 mm) (77.8 mm) 12.49" (317.3 mm) 11.43" (290.2 mm) Figure 6 Mechanical Drawing Page 12 19146-D02... -
Page 15: Chapter 10 Fcc Emc Certifocate Of Compliance
Fiber Coupled Laser Source Chapter 10: FCC EMC Certifocate of Compliance Chapter 10 FCC EMC Certifocate of Compliance Emissions comply with the Class A Limits of FCC Code of Federal Regulations 47, Part 15, Subpart B Using high-quality shielded interface cables. Rev L, June 5, 2017 Page 13... -
Page 16: Chapter 11 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 17: Chapter 12 Thorlabs Worldwide Contacts
Fiber Coupled Laser Source Chapter 12: Thorlabs Worldwide Contacts Chapter 12 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. - Page 18 www.thorlabs.com...
