Summary of Contents for THORLABS SL1325-P16

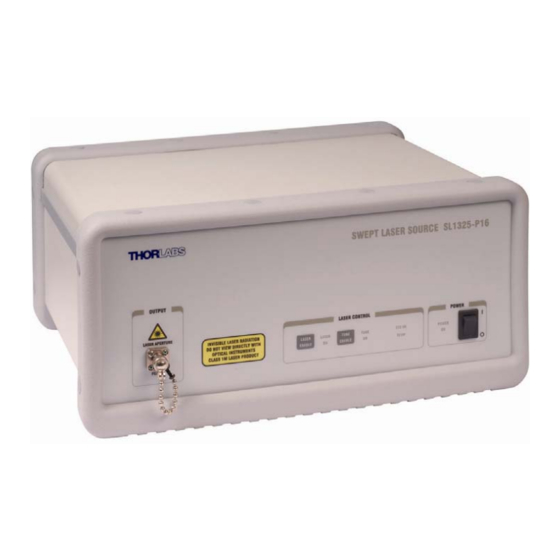

- Page 1 Swept Source Laser Operating Manual...
-
Page 2: Table Of Contents
Part 5. Certifications and Compliance ....................15 Part 6. Regulatory ..........................16 Part 7. Appendix .............................17 7.1. Setting the Line Select Switch ....................... 17 7.2. Changing the Input Fuses ........................17 Part 8. Thorlabs Worldwide Contacts ....................18 14138-D02 Rev F 04/17/09 Page 1 of 18... -
Page 3: Part 1. Introduction
There are no user serviceable parts in this product. Opening the device will void your warranty. Any modification or servicing of this system by unqualified personnel renders Thorlabs free of any liability. Attention This device can only be returned when packed into the complete original packaging, including all foam packing inserts. -
Page 4: Safety And Warnings
NOTE: Thorlabs provides the proper power input cable with each system for use in the United States. If using this unit anywhere else, the user will need to supply a properly grounded power cable to power the unit. - Page 5 Swept Source Laser WARNING Electrostatic Discharge (ESD) All types of electronic components, particularly integrated circuits, are sensitive to Electrostatic Discharge (ESD). ESD is a general reason for failure of electronic equipment. The total operating time can be reduced if precautions against ESD- damage are not taken.
-
Page 6: Care Of The Swept Source Laser
If the system is dropped from a height greater than 15”, it will be necessary for qualified Thorlabs’ personnel to perform an electrical security check. Please contact Thorlabs for more information. -
Page 7: Service
Though the system is easily adapted for custom interfaces, to achieve the listed specifications, this system should only be used with accessories provided by Thorlabs. Any modification or servicing by unqualified personnel renders the warranty null and void, leaving Thorlabs free of liability. Please contact Thorlabs for questions on customization. 14138-D02 Rev F 04/17/09... -
Page 8: Part 2. Laser Description
Laser Classification (per IEC 60825-1) Class 1M Physical Size 315 x 295 x 146 Does not have internal isolator Measured at laser output facet. Swept source has universal AC input. SL1325-P16 Parameters Minimum Typical Maximum Units Central Wavelength 1310 1325... -
Page 9: Components
OCT images, and a high sweep-speed is needed to obtain real-time 2D and 3D OCT imaging speeds. Thorlabs now offers a variety of frequency swept laser sources based on a tunable external cavity semiconductor laser, designed and optimized for SS-OCT and OFDR applications. - Page 10 Thorlabs’ swept source laser is ideal for this application. The laser features a built-in Mach-Zehnder Interferometer (MZI) with balanced detector output, which can be used as a frequency clock because the zero crossings of the interference fringe signal are equally spaced in optical frequency (k-space).
-
Page 11: Mechanical Interface
20 fps. Thorlabs' Swept Source Laser is specifically designed for SS-OCT applications. It sweeps across at least 100nm at a 16 kHz repetition rate, offers a coherence length of 6mm, and delivers more than 10mW of average optical power out of an SMF28 single mode fiber. -
Page 12: Switches And Indicators
Swept Source Laser Switches and Indicators 2.5. Switches and Indicators The SLXXXX-P16 is easily controlled using the three switches located on the front panel. The Power switch applies AC power to the entire unit when set to the | position. The “POWER ON” indicator will illuminate when power is applied. -
Page 13: Electrical Interfaces
Swept Source Laser 2.6. Electrical Interfaces The SLXXXX-P16 should only be connected to an external electrical power source that has the proper value as stated on the backside of the unit, see Figure 5. Figure 5: The AC input voltage must be 100-240 VAC and 50-60 Hz Electrical Outputs Figure 6: Rear View of the Swept Source OCT System... -
Page 14: Part 3. Operation
No power is supplied to the unit Connect the power supply System does not start Power cord is broken Change power cord Other reason Call Thorlabs for assistance Fiber not connected Connect fiber patch cable Poor performance/No signal Fiber tip is dirty Clean fiber tip... -
Page 15: Part 4. Warranty Information
Part 4. Warranty Information General Product Warranty Thorlabs warrants that all products sold will be free from defects in material and workmanship, and will conform to the published specifications under normal use, when correctly installed and maintained. Optomechanics Lifetime Warranty: Thorlabs offers a lifetime warranty on all optomechanical components. Thorlabs will repair or replace any optomechanical product which, after evaluation, has been shown to not meet specifications under the conditions listed above. -
Page 16: Part 5. Certifications And Compliance
Swept Source Laser Part 5. Certifications and Compliance Note: The SL1050-P16 and SL1325-P16 were tested as components of the OCS1050SS and OCS1300SS. 14138-D02 Rev F 04/17/09 Page 15 of 18... -
Page 17: Part 6. Regulatory
Waste treatment is your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 18: Part 7. Appendix
Swept Source Laser Part 7. Appendix 7.1. Setting the Line Select Switch The Swept Source will operate from AC line voltages ranging from 100-240 VAC at 50-60Hz. There is no need to configure the unit for specific line voltages. 7.2. Changing the Input Fuses If for some reason you need to replace an open fuse in the Swept Laser Source, you must perform the following procedure:... -
Page 19: Part 8. Thorlabs Worldwide Contacts
Swept Source Laser Part 8. Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com...
