5. Terminal Setup
The AVS-4210-24HP4X is equipped with a console interface for local switch
setup and maintenance. To configure the system, connect a serial cable to a
COM port on a PC or notebook computer and to the RJ45-type console port of
the Pro AV Switch.
PC / Workstation
with
Terminal Emulation Software

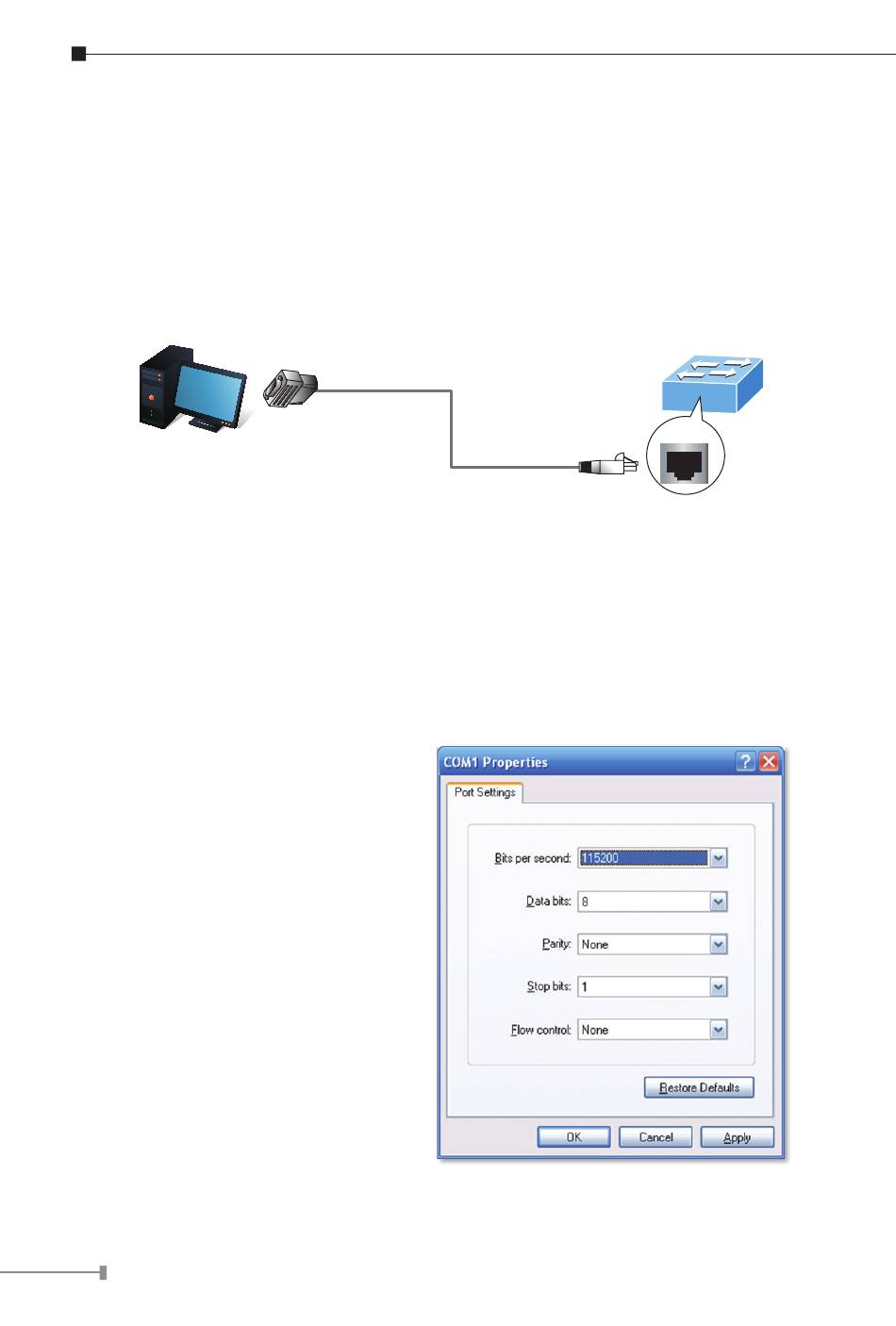

Figure 5-1: Console Connection to the Pro AV Switch
A terminal program is required to make the software connection to the Pro AV
Switch.
1. Launch a terminal program within the operating system.
2. Once the terminal screen appears, ensure the COM port is configured with
the following settings:
Baud rate: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
12
RS232 to RJ45 Cable
Serial Port
Figure 5-2: COM Port Configuration
Managed Switch
RJ45
Console Port
