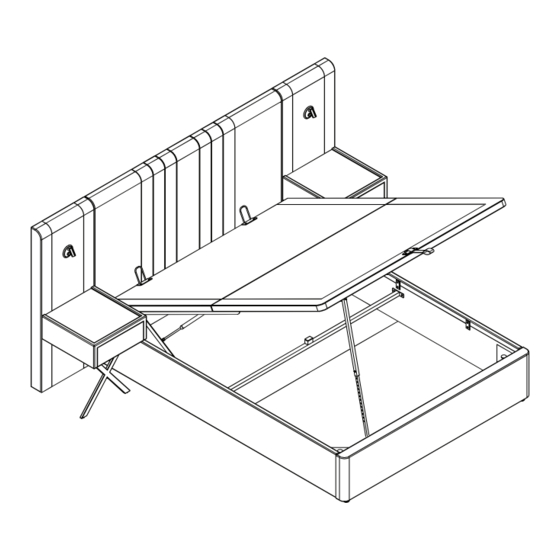

Madison Ottoman Bed

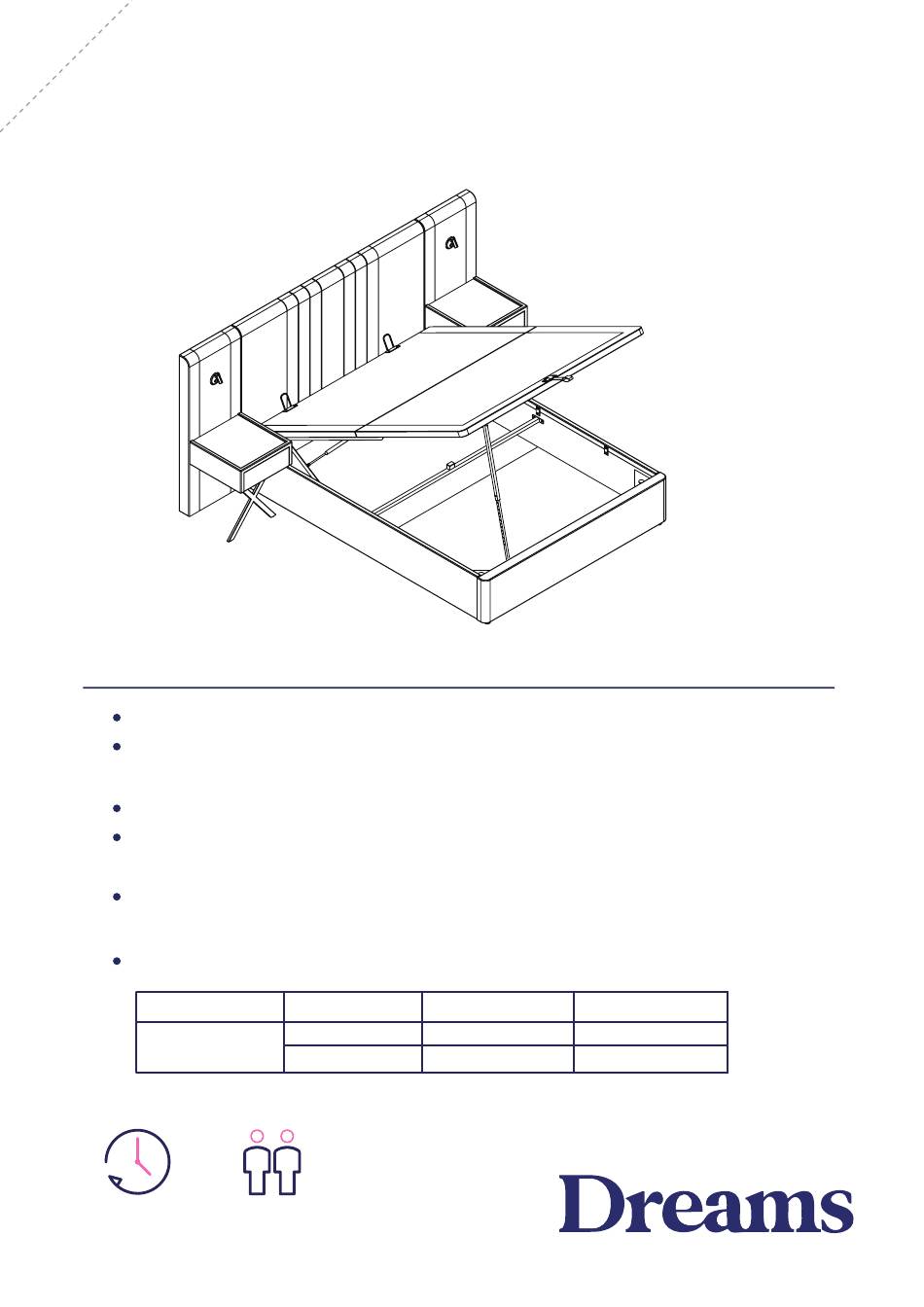

IMPORTANT OTTOMAN SAFETY WARNINGS
IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE
You must ensure that the mattress is on the bed frame before operating the
lift mechanism – Failure to do so could result in injury.
Keep hands clear of the mechanism when opening or closing the ottoman.
Beware of entrapment – Never reach in through the mechanism to access
the storage area.
Always ensure that the ottoman is FULLY opened before accessing the
storage area.
Do not exceed the maximum weight as specified in the table below:
Bed
Madison
1.5 hour approx
Two person
assembly time
assembly
MK1 230923
Bed Size
Min Weight (kg) Max Weight (kg)
Double
King
40
10
15
45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Madison and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DREAMS Madison

  • Page 1 Madison Ottoman Bed IMPORTANT OTTOMAN SAFETY WARNINGS IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE You must ensure that the mattress is on the bed frame before operating the lift mechanism – Failure to do so could result in injury.
  • Page 2 Maximum storage height is 305mm . WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW! Madison Ottoman Bed - Assembly guide - Page 2...
  • Page 3 Do not sit on the mattress whilst the platform is in motion or is in the raised position. o Users should only get in and out of bed when platform is in the flat (horizontal) position. Madison Ottoman Bed - Assembly guide - Page 3...
  • Page 4: Assembly Tips

    Thank You Dear Customer, Thank you for choosing to purchase your bed from Dreams - we hope it brings you your best ever night’s sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages.
  • Page 5: Parts List

    Storage Base Board Ottoman support bar pack (O.S.B.) Side Rail Cross Bar Ottoman support bar Fixed retaining bracket Mattress Base Board - Headend Parking bracket Mattress Base Board - Footend 0 10 1 Madison Ottoman Bed - Assembly guide - Page 5...
  • Page 6 Big Head Bolts (M8x20mm) for fitting metal plate (n) and Metal connection plate for mattress stoppers (J) to mattress base boards (H&I) Support Brackets mattress base boards (H&I) Madison Ottoman Bed - Assembly guide - Page 6...
  • Page 7: Tools Required

    Spring washer for M8 bolts Flat washer for M8 bolts Tools required Q x1 P x1 Fixed retaining bracket Parking bracket Tape measure Cross head screwdriver 10mm 10mm Madison Ottoman Bed - Assembly guide - Page 7...
  • Page 8 & Slide both storage base boards into place. Madison Ottoman Bed - Assembly guide - Page 8...
  • Page 9 & C & D Madison Ottoman Bed - Assembly guide - Page 9...
  • Page 10 & c x2 b x2 a x2 100% Fit the fabric hand strap as shown. k x2 Madison Ottoman Bed - Assembly guide - Page 10...
  • Page 11 100% Mattress Base Board Assembly. Madison Ottoman Bed - Assembly guide - Page 11...
  • Page 12 SMALL GAP Madison Ottoman Bed - Assembly guide - Page 12...
  • Page 13 100% Unpack the Ottoman Support Bar (O.S.B.) from SR carton, Pack 2. 100% iii) Madison Ottoman Bed - Assembly guide - Page 13...
  • Page 14 Set the inner stem to the correct length so the end just touches the retaining bracket - it needs to touch to hold it in position. 100% Adjust the retaining bracket (P) so the stem end scrapes the surface. Madison Ottoman Bed - Assembly guide - Page 14...
  • Page 15 Un-fold the headboard wings. Madison Ottoman Bed - Assembly guide - Page 15...
  • Page 16 This Step & fitting the hardware & legs is for x2 bedsides Assemble & install the bedsides. g x6 f x2 Madison Ottoman Bed - Assembly guide - Page 16...
  • Page 17 Carefully move the headboard into it's final position. As you move it, make sure the legs of the bedsides don't drag on the floor and twist. Madison Ottoman Bed - Assembly guide - Page 17...
  • Page 18: Care And Maintenance

    Metal tends to be more resilient to everyday wear and tear. We recommend to gently dust your metal furniture and keep it dry to maintain its look. Thank you for shopping with us - we hope you have a great night's sleep Care and maintenance guide Madison Ottoman Bed - - Page 18...
  • Page 19 Little dreamers Keep the little ones entertained while you assemble your new purchase.
