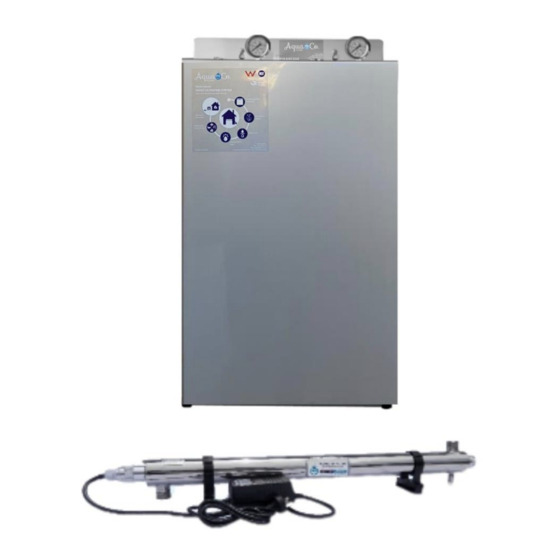

UV Extreme Whole House Water Filtration System
Product Code: SYS-202-UV-WAWF
WARNING: For correct operation & installation, it is essential to observe these instructions
UV EXTREME WHOLE HOUSE WATER FILTRATION SYSTEM
Important Notice: Please remember to document your service schedule on page 25 of this booklet for easy reference and
maintenance tracking. Your diligent record-keeping ensures timely and efficient maintenance, guaranteeing the longevity and
optimal performance of your filtration system.
Page 1 of 27
Advertisement
Table of Contents
Related Manuals for AquaCo SYS-202-UV-WAWF
Summary of Contents for AquaCo SYS-202-UV-WAWF
-

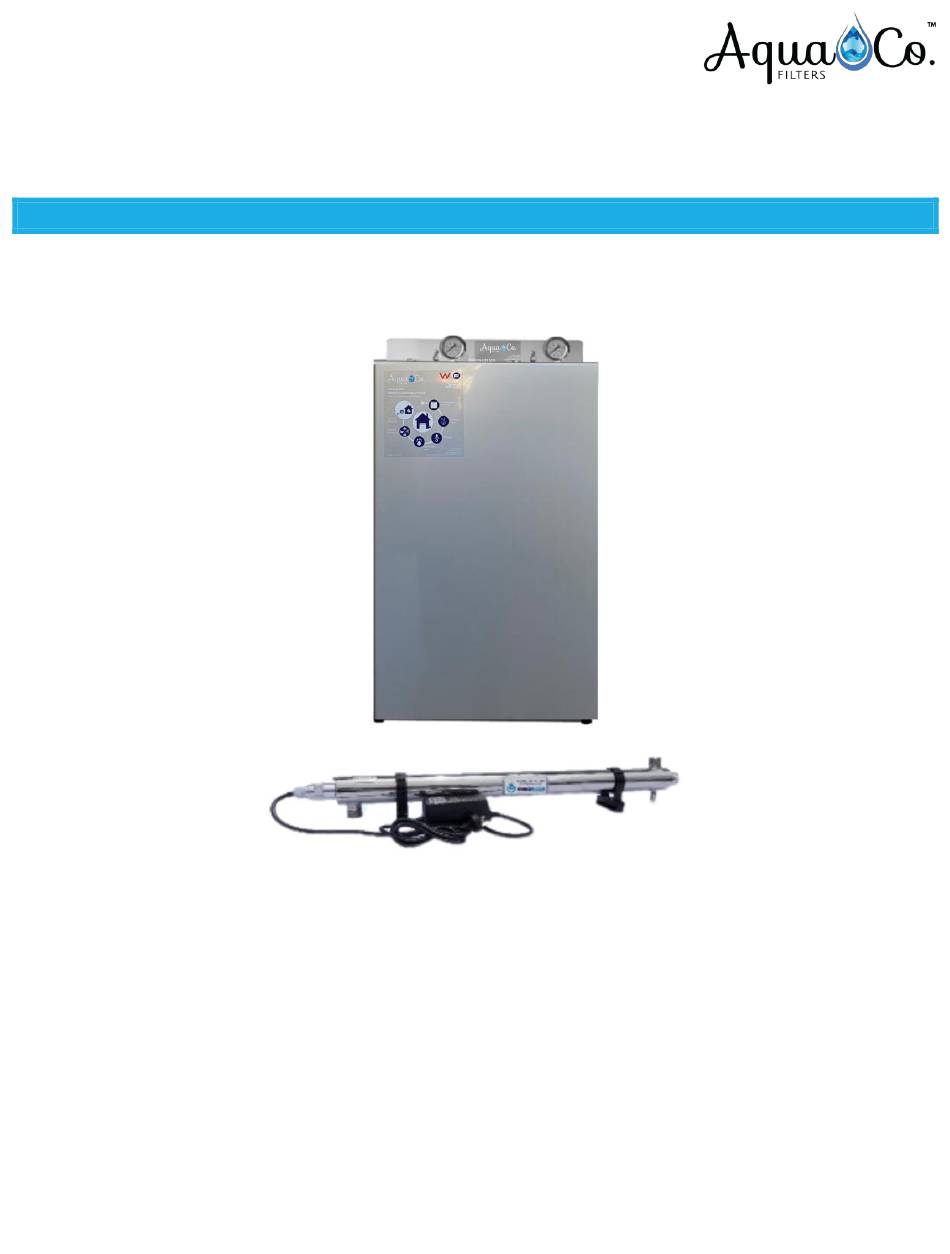

Page 1: Uv Extreme Whole House Water Filtration System
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF WARNING: For correct operation & installation, it is essential to observe these instructions UV EXTREME WHOLE HOUSE WATER FILTRATION SYSTEM Important Notice: Please remember to document your service schedule on page 25 of this booklet for easy reference and maintenance tracking. -
Page 2: Table Of Contents
Product Code: SYS-202-UV-WAWF CONTENTS UV Extreme Whole House Water Filtration System ..........................1 Installation and Operation Manual ................................3 AquaCo Customer Service ..................................3 Guidelines and Warnings ..................................3 Installation ......................................4 Before Installation ....................................4 UV Operational Requirements ................................4 Disinfection cleaning Information .............................. -
Page 3: Installation And Operation Manual
Caution: Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the system. The system is designed for mains (SYS-202-UV-WAWF) supply but can be used in other situations. For other types of water supply please contact your local AquaCo stockist or call our AquaCo Customer Service Helpline. -
Page 4: Installation
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF INSTALLATION BEFORE INSTALLATION PROFESSIONAL INSTALLATION REQUIRED Installation requires shutting water off to home, cutting home water supply pipe and using a welding torch to add piping and fittings. Specialized tools and skills are required. Not a do-it-yourself type of project. -
Page 5: Disinfection Cleaning Information
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF Notes: 1. Do not allow water in the filter system to freeze. 2. The system installation is to comply with all applicable Australian State and Local regulations. Installation by a licensed plumber is advised. -
Page 6: Typical Installation
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF TYPICAL INSTALLATION UV ASSEMBLY The two-piece aluminum nut shown below is for sealing the Quartz thimble and connecting the UV Lamp lead. The Lamp Lead is supplied with an Aluminium Earth Connection Plug and Gland. This is retained and sealed in the main sealing nut with an O-Ring and locking screw. - Page 7 UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF Note: Touching the lamp or thimble with bare hands will leave finger marks on the highly polished glass, (interfering with the lamp effectiveness), where possible use lint free cotton gloves or a clean micro fibre cloth during the installation of lamp &...
-
Page 8: Models Parts List
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF MODELS PARTS LIST SP-133H SP-165H Description Part No. Part No. UVA100901F UVA100901F Internal Earth Aluminium Nut (2 Piece) UVAT533HO (33 Watts High UVAT565HO (65 Watts High UV Lamp Output) Output) -
Page 9: Dimensions
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF DIMENSIONS SYSTEM DIMENSIONS UV LIGHT DIMENSIONS Page 9 of 27... - Page 10 UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF STANDARD WATER PROOF BALLAST OPERATION Standard waterproof ballast operation: When the ballast is plugged in and switched on, the LED indicates different Colours: 1. When the indicator light is green, it signifies that the lamp is powered and functioning properly.
- Page 11 UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF DIGITAL PANEL DISPLAY Digital Panel Display Before the operation of the ballast, make sure that the lamp is connected to the ballast and they both work normally. The digital display will show a green light: when in operation.
-
Page 12: Uv Maintenance
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF Set the lamp life time SET OPERATE TIME 9000 Hr. Press Up key to display Y then press and hold Mode button in for 5 seconds. DONE! Is displayed When the lamp life time expires, the ballast will sound an alarm and the LED light will turn red, the lamp is turned off... -
Page 13: Removing Uv Lamp
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF REMOVING UV LAMP Note: As advised earlier Do Not touch the lamp or sleeve with bare hands. Note: Avoid touching the sides of the lamp, handle by the ends only. -
Page 14: Cartridge Installation / Replacement
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF CARTRIDGE INSTALLATION / REPLACEMENT To change the filter cartridge(s) please adhere to the following procedure: Figure 1 Turn water supply off and relieve pressure by opening a downstream tap or pressing the red pressure relief button on the housing(s) (if fitted). -
Page 15: Replacement Guide
To maintain the high quality of the purified water the cartridge(s) need changing every 12-18 months (this is dependent on water quality and usage). You can obtain replacement cartridges from your local AquaCo stockist. To maintain performance and warranty use genuine AquaCo replacements. - Page 16 UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF REP-203PR-WAWF Page 16 of 27...
-
Page 17: Replacement Parts And Components
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF REPLACEMENT PARTS AND COMPONENTS Premium Replacement Filters Set of replacement filter cartridges for the 1 and 3 stage of the whole house water filtration system. ✓ Sediments ✓ Chlorine ✓... - Page 18 UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF Filter Casing/Housing Sump 20” x 4.5” high virgin polypropylene filter housing with ABS caps and reinforced brass ports for maximum durability. *WORK FOR HIGH WATER PRESSURES. Maintenance: Filter housings are recommended to be changed every 10 years. However, replacement frequency can vary if filter housings have been dropped or are directly/indirectly exposed to the sun.
-
Page 19: Performance Data Sheet
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF PERFORMANCE DATA SHEET PRODUCT CODE: PP-2045-5-WAWF SEDIMENT FILTER Micron Rating Triple Gradient: 20 μm (outer), 10 μm (middle), 5 μm (inner) Filter Dimensions 20” x 4.5” Media Type 100% Polypropylene NOTES: THIS CARTRIDGE IS TESTED AND CERTIFIED BY NSF INTERNATIONAL UNDER NSF/ANSI STANDARD 42 FOR MATERIAL REQUIREMENTS ONLY. - Page 20 UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF PRODUCT CODE: ARA-2045-WAWF ARAGON FILTER Micron Rating >99.999% @2 μm Filter Dimensions 20” x 4.5” Suspended impurities (rust, sand, algae, other particles) over 100% 5 µm Heavy and radioactive metals (lead, cadmium, copper, >99%...
-
Page 21: Notes
WARRANTY Any contract of sale, order, or quotation made or accepted by or on behalf of Water Filters Pty Ltd (trading as AquaCo Filters) is subject to these terms and conditions of sale. - Page 22 A failure by the Buyer to submit the said Statement within 28 days, after such request is made by AquaCo Filters, will automatically void the Warranty. • A failure to answer truthfully or to answer in a way that is misleading, entitles AquaCo Filters to void the Warranty and to notify the police in the event of suspected fraudulent conduct. RISK •...
-
Page 23: Price
• In the case of the Buyer being a natural person, the Buyer commits an act of bankruptcy; then AquaCo Filters may at its option exercise all or any of the following rights (notwithstanding any prior failure to exercise such rights): demand payment of the whole of the monies owing from the Buyer to AquaCo Filters and the Buyer agrees to pay the same immediately. -
Page 24: Warranty/Australia
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF JURISDICTION AquaCo Filters and the buyer agree that this agreement and its provisions shall be construed in accordance with the laws of the State of Western Australia and be resolved by a Western Australian Court. WARRANTY/AUSTRALIA This warranty is given by Water Filters Pty Ltd, ABN 68618671677, telephone no. -
Page 25: Service Schedule
UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF SERVICE SCHEDULE Filters are recommended to be changed every 12-18 months. However, replacement frequency also depends on your water quality and usage. DATE ITEM SERVICED COMMENTS Page 25 of 27... - Page 26 UV Extreme Whole House Water Filtration System Product Code: SYS-202-UV-WAWF NOTES Page 26 of 27...
