Page 1: Two Stage Whole House Filtration System

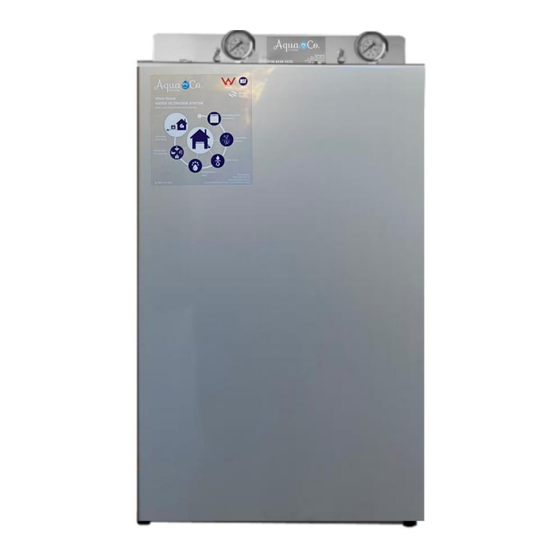

Whole House Water Filtration System Product Code: SYS-202-WAWF WARNING: For correct operation & installation, it is essential to observe these instructions TWO STAGE WHOLE HOUSE FILTRATION SYSTEM Page 1 of 16... -
Page 2: Table Of Contents
Product Code: SYS-202-WAWF CONTENTS Two stage Whole House Filtration System ............................1 Installation and Operation Manual ..............................3 AquaCo Customer Service ................................3 Guidelines and Warnings ................................3 Positioning Your Filter ..................................4 Installation Procedure ..................................4 Typical Installation ..................................5 Installation Images .................................. -
Page 3: Installation And Operation Manual
Caution: Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the system. The system is designed for mains (SYS-202-WAWF) supply but can be used in other situations. For other types of water supply please contact your local AquaCo stockist or call our AquaCo Customer Service Helpline. -
Page 4: Positioning Your Filter
Whole House Water Filtration System Product Code: SYS-202-WAWF POSITIONING YOUR FILTER Choose a location where any water spillage will not cause damage. Make sure mounting position is solid so that the filter housing stays in position when changing filters. An isolation valve may be installed immediately prior to the filter to isolate the filter for changing the cartridge. -
Page 5: Typical Installation
Whole House Water Filtration System Product Code: SYS-202-WAWF TYPICAL INSTALLATION Figure 1 1. Inlet and Connecting Pipework (Not included) 2. Equal Tee (Not included) 3. Isolation Valve (Not included) 4. Backflow Prevention Valve (Not included) 5. 90 Degree Elbow (Not included) 6. -
Page 6: Installation Images
Whole House Water Filtration System Product Code: SYS-202-WAWF INSTALLATION IMAGES CARTRIDGE INSTALLATION / REPLACEMENT To change the filter cartridge(s) please adhere to the following procedure: Figure 2 1. Turn water supply off and relieve pressure by opening a downstream tap or pressing the red pressure relief button on the housing(s) (if fitted). -
Page 7: Replacement Guide
Whole House Water Filtration System Product Code: SYS-202-WAWF REPLACEMENT GUIDE You can obtain replacements from your local AquaCo dealer. To maintain performance, warranty and standards use genuine AquaCo replacements. Figure 4 – Classic Replacement Filters For Two Stage Filtration System... - Page 8 To maintain the high quality of the purified water the cartridge(s) need changing every 12-18 months (this is dependent on water quality and usage). You can obtain replacement cartridges from your local AquaCo stockist. To maintain performance and warranty use genuine AquaCo replacements.
-
Page 9: Replacement Parts And Components
Whole House Water Filtration System Product Code: SYS-202-WAWF REPLACEMENT PARTS AND COMPONENTS Figure 6 – Replacement Parts and Components Page 9 of 16... - Page 10 Whole House Water Filtration System Product Code: SYS-202-WAWF Premium Replacement Filters Set of replacement filter cartridges for the 1 stage of the whole house water filtration system. ✓ Sediments ✓ Chlorine ✓ Pesticides & Herbicides ✓ VOCs (Acetone, Alcohol, Ethanol, Acetic Acid…) ✓...
- Page 11 Whole House Water Filtration System Product Code: SYS-202-WAWF Classic Replacement Filters Set of replacement filter cartridges for the 1 stage of the whole house water filtration system. ✓ Sediments ✓ Chlorine ✓ Pesticides & Herbicides ✓ VOCs (Acetone, Alcohol, Ethanol, Acetic Acid…) ✓...
- Page 12 Whole House Water Filtration System Product Code: SYS-202-WAWF Stainless Steel/Glass Pressure Gauges Read the water pressure of the outgoing and incoming water for easy monitoring. Version Price Stainless Steel/Glass Pressure Gauge *Prices are valid from the 01/11/2021 to 01/12/2022. Water Filters Pty Ltd reserves the right to change pricing at any time without notice.
- Page 13 Whole House Water Filtration System Product Code: SYS-202-WAWF Pressure Relief Button Set of 2 pressure relief buttons. Provide pressure relief for easier changing of cartridges. Version Price Pressure Relief Button Set *Prices are valid from the 01/11/2021 to 01/12/2022. Water Filters Pty Ltd reserves the right to change pricing at any time without notice.
-
Page 14: Performance Data Sheet
Whole House Water Filtration System Product Code: SYS-202-WAWF PERFORMANCE DATA SHEET PRODUCT CODE: PP-2045-5-WAWF SEDIMENT FILTER Micron Rating Triple Gradient: 20 μm (outer), 10 μm (middle), 5 μm (inner) Filter Dimensions 20” x 4.5” Media Type 100% Polypropylene NOTES: THIS CARTRIDGE IS TESTED AND CERTIFIED BY NSF INTERNATIONAL UNDER NSF/ANSI STANDARD 42 FOR MATERIAL REQUIREMENTS ONLY. - Page 15 Whole House Water Filtration System Product Code: SYS-202-WAWF PRODUCT CODE: ARA-2045-WAWF ARAGON FILTER Micron Rating >99.999% @2 μm Filter Dimensions 20” x 4.5” Suspended impurities (rust, sand, algae, other particles) over 100% 5 µm Heavy and radioactive metals (lead, cadmium, copper, >99%...
-
Page 16: Notes
Applicable to all above, is that the Warranties need to be approved by AquaCo to ensure product was not incorrectly used, installed or claimed.
