Page 1: Triple Undersink Water Filtration System

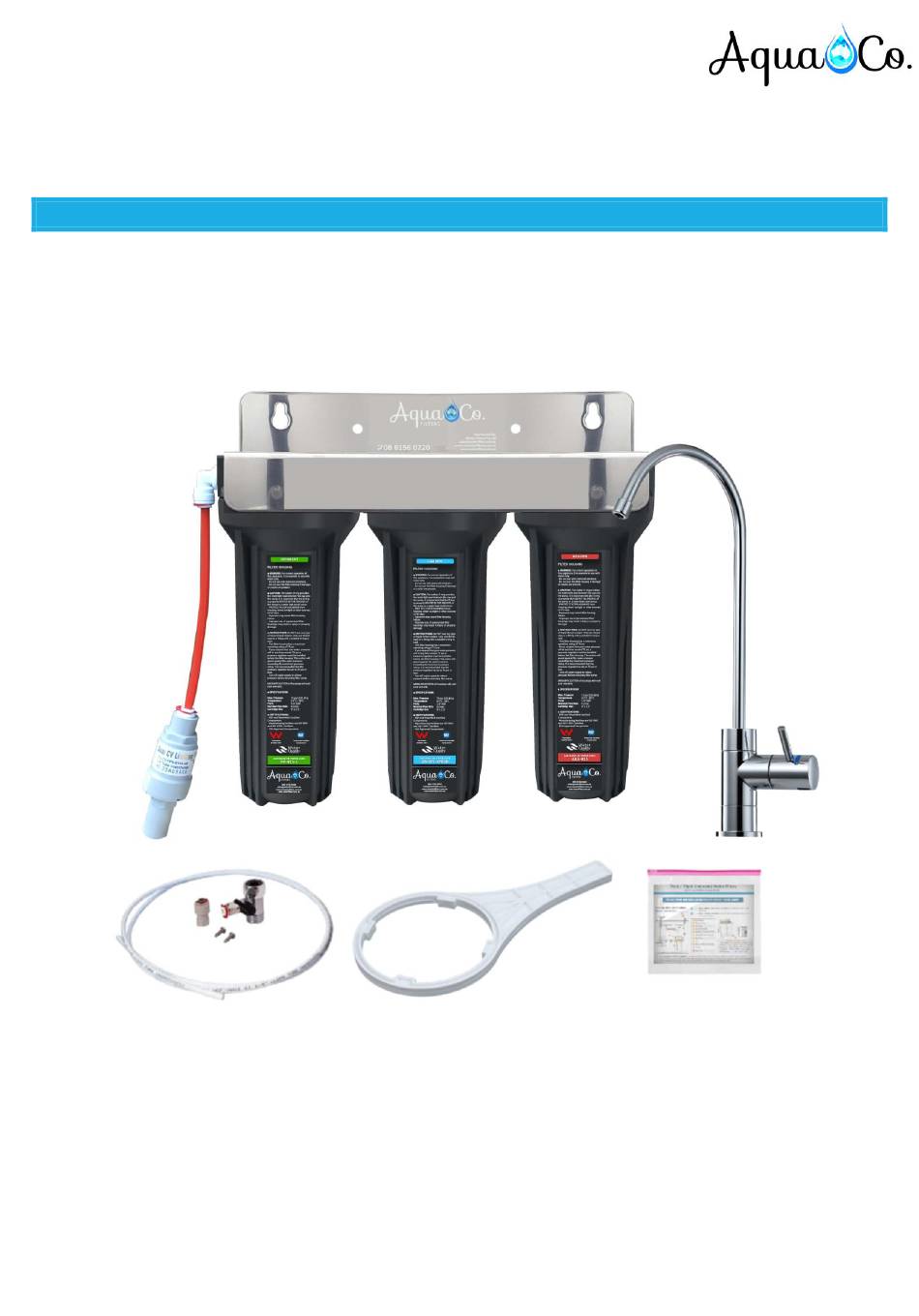

Triple Undersink Water Filtration System Installation Product Code: SYS-925-3 WARNING: For correct operation & installation, it is essential to observe these instructions TRIPLE UNDERSINK WATER FILTRATION SYSTEM Page 1 of 11... -
Page 2: Table Of Contents
Triple Undersink Water Filtration System Installation Product Code: SYS-925-3 CONTENTS Triple Undersink Water Filtration System ............................ 1 Installation and Operation Manual .............................. 3 AquaCo Customer Service ............................... 3 Operation ....................................3 Installation ....................................4 Installation requirements ..............................4 Typical Installation .................................. 4 Installation Procedure ................................. -
Page 3: Installation And Operation Manual
AQUACO CUSTOMER SERVICE Thank you for purchasing an AquaCo undersink water filter system. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly. -
Page 4: Installation
Triple Undersink Water Filtration System Installation Product Code: SYS-925-3 INSTALLATION This system comes complete with an installation kit enabling it to be connected to 15mm (½”) copper pipe (cold supply only - hot water should be filtered prior to heating). Included is a control valve incorporating backflow prevention, anti hammer, flow control and pressure limiting capabilities in full compliance with the relevant laws. -
Page 5: Installation Procedure
Triple Undersink Water Filtration System Installation Product Code: SYS-925-3 INSTALLATION PROCEDURE 1. Select suitable location that is close to the point of filtered water delivery (eg. sink). Remember to allow access room for changing filters and a suitable place where water spillage will not cause damage. Location should not be in direct sunlight. -
Page 6: Cartridge Installation/Maintenance
Triple Undersink Water Filtration System Installation Product Code: SYS-925-3 CARTRIDGE INSTALLATION/MAINTENANCE To change the filter cartridges, adhere to the following procedure. Figure 4 1. Close 1/2" Tee with 1/4" Push-In Tube Connector (Mains Connector or Shut Off Valve) to prevent water flow. -
Page 7: Faucet Installation Procedure
Triple Undersink Water Filtration System Installation Product Code: SYS-925-3 Figure 8 – Faucet Installation Diagram Important note: Battery must be replaced when changing cartridges. FAUCET INSTALLATION PROCEDURE 1. Remove the black battery seat from the faucet lever handle (see Figure 9). -
Page 8: Guide To Use Push-In Tube Connectors
Triple Undersink Water Filtration System Installation Product Code: SYS-925-3 GUIDE TO USE PUSH-IN TUBE CONNECTORS Figure 12 USE GUIDELINES • Minimum operating pressure 200 kPa. • Maximum operating pressure 520 kPa. • Do not allow exposure to temperatures below 0°C. -
Page 9: Cartridge Replacement Guide
Product Code: SYS-925-3 CARTRIDGE REPLACEMENT GUIDE You can obtain replacements from your local AquaCo dealer. To maintain performance, warranty and standards use genuine AquaCo replacements. TO MAINTAIN THE HIGH QUALITY OF THE PURIFIED WATER THE CARTRIDGE(S) NEED CHANGING EVERY 6-18 MONTHS (THIS IS DEPENDENT ON WATER QUALITY AND USAGE). - Page 10 Triple Undersink Water Filtration System Installation Product Code: SYS-925-3 PRODUCT CODE: ARA-925 ARAGON FILTER Micron Rating >100% @5 μm Filter Dimensions 9” x 2.5” Suspended impurities (rust, sand, algae, other particles) 100% over 5 µm Heavy and radioactive metals (lead, cadmium, copper, >99%...
-
Page 11: Notes
Applicable to all above, is that the Warranties need to be approved by AquaCo to ensure product was not incorrectly used, installed or claimed.
