Page 1: Single Undersink Water Filtration System

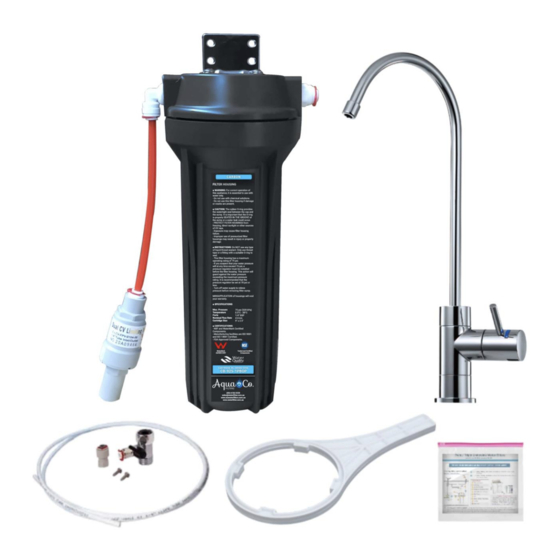

Single Undersink Water Filtration System Installation Product Code: SYS-US925 WARNING: For correct operation & installation, it is essential to observe these instructions SINGLE UNDERSINK WATER FILTRATION SYSTEM Page 1 of 15... -
Page 2: Table Of Contents
Single Undersink Water Filtration System Installation Product Code: SYS-US925 CONTENTS Single Undersink Water Filtration System ............................1 Installation and Operation Manual ..............................3 AquaCo Customer Service ................................3 Operation ......................................3 Installation ...................................... 4 Installation requirements ................................4 Typical Installation ..................................4 Accessories and Components List ............................... -
Page 3: Installation And Operation Manual
AQUACO CUSTOMER SERVICE Thank you for purchasing an AquaCo undersink water filter system. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly. -
Page 4: Installation
Single Undersink Water Filtration System Installation Product Code: SYS-US925 INSTALLATION This system comes complete with an installation kit enabling it to be connected to 15mm (½”) copper pipe (cold supply only - hot water should be filtered prior to heating). Included is a control valve incorporating backflow prevention, anti hammer, flow control and pressure limiting capabilities in full compliance with the relevant laws. -
Page 5: Installation Procedure
Single Undersink Water Filtration System Installation Product Code: SYS-US925 INSTALLATION PROCEDURE Select suitable location that is close to the point of filtered water delivery Figure 2 (eg. sink). Remember to allow access room for changing filters and a suitable place where water spillage will not cause damage. Location should not be in direct sunlight. -
Page 6: Cartridge Installation/Maintenance
Single Undersink Water Filtration System Installation Product Code: SYS-US925 CARTRIDGE INSTALLATION/MAINTENANCE To change the filter cartridges, adhere to the following procedure. Close 1/2" Tee with 1/4" Push-In Tube Connector (Mains Connector or Shut Off Valve) to prevent water flow. Relieve water pressure by operating faucet lever. -
Page 7: Faucet Installation Procedure
Single Undersink Water Filtration System Installation Product Code: SYS-US925 Figure 3 – Faucet Installation Diagram Important note: Battery must be replaced when changing cartridges. FAUCET INSTALLATION PROCEDURE 1. Remove the black battery seat from the faucet lever handle (see Figure 9). -
Page 8: Guide To Use Push-In Tube Connectors
Single Undersink Water Filtration System Installation Product Code: SYS-US925 GUIDE TO USE PUSH -IN TUBE CONNECTORS Figure 10 USE GUIDELINES • Minimum operating pressure 200 kPa. • Maximum operating pressure 520 kPa. • Do not allow exposure to temperatures below 0°C. -
Page 9: Cartridge Replacement Guide
Single Undersink Water Filtration System Installation Product Code: SYS-US925 CARTRIDGE REPLACEMENT GUIDE You can obtain replacements from your local AquaCo dealer. To maintain performance, reduction rates, warranty and standards use genuine AquaCo replacements. REPLACEMENT PARTS AND COMPONENTS Omnipure Carbon Block Replacement Filter Cartridge ✓... -
Page 10: Performance Data Sheet
Single Undersink Water Filtration System Installation Product Code: SYS-US925 PERFORMANCE DATA SHEET PRODUCT CODE: CB-925-1POP CARBON FILTER Micron Rating >99% @ 1 μm Filter Dimensions 9” x 2.5” Chlorine Reduction >95% 30,000 L @ 0.75 gpm Lead Reduction >90% 11,300 L @ 0.75 gpm Cyst, Cryptosporidium, Giardia Reduction >99.95%... - Page 11 Single Undersink Water Filtration System Installation Product Code: SYS-US925 PRODUCT CODE: ARA-925 ARAGON FILTER Micron Rating >100% @0.5 μm Filter Dimensions 9” x 2.5” Suspended impurities (rust, sand, algae, other particles) 100% over 0.5 µm Heavy and radioactive metals (lead, cadmium, copper, >99%...
-
Page 12: Notes
WARRANTY Any contract of sale, order, or quotation made or accepted by or on behalf of Water Filters Pty Ltd (trading as AquaCo Filters) is subject to these terms and conditions of sale. - Page 13 The date and time AquaCo Filters was first notified of the Product malfunction. • A failure by the Buyer to submit the said Statement within 28 days, after such request is made by AquaCo Filters, will automatically void the Warranty.
-
Page 14: Price
• In the case of the Buyer being a natural person, the Buyer commits an act of bankruptcy; then AquaCo Filters may at its option exercise all or any of the following rights (notwithstanding any prior failure to exercise such rights): demand payment of the whole of the monies owing from the Buyer to AquaCo Filters and the Buyer agrees to pay the same immediately. -
Page 15: Warranty/Australia
Single Undersink Water Filtration System Installation Product Code: SYS-US925 JURISDICTION AquaCo Filters and the buyer agree that this agreement and its provisions shall be construed in accordance with the laws of the State of Western Australia and be resolved by a Western Australian Court. WARRANTY/AUSTRALIA This warranty is given by Water Filters Pty Ltd, ABN 68618671677, telephone no.
