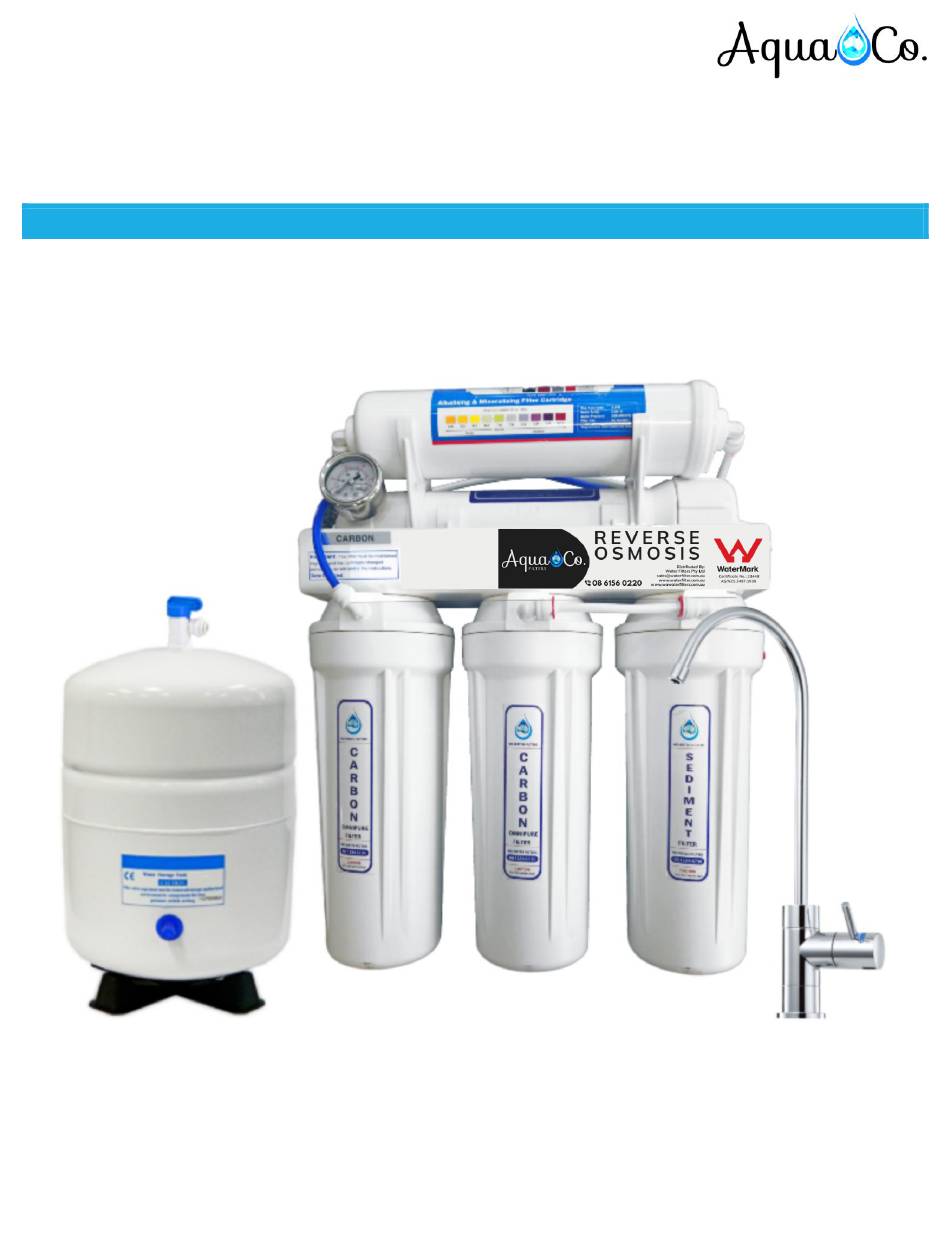

Page 1: Usa Reverse Osmosis Water Filtration System
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 WARNING: For correct operation & installation, it is essential to observe these instructions USA REVERSE OSMOSIS WATER FILTRATION SYSTEM Page 1 of 15... -
Page 2: Table Of Contents
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 CONTENTS USA Reverse Osmosis Water Filtration System ............................1 Installation and Operation Manual ................................3 AquaCo Customer Service ..................................3 Operation ....................................... 3 Installation ......................................4 Installation requirements .................................. 4 Typical Installation ....................................5 Installation Procedure .................................. -
Page 3: Installation And Operation Manual
AQUACO CUSTOMER SERVICE Thank you for purchasing an AquaCo reverse osmosis drinking water system. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly. -
Page 4: Installation
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 INSTALLATION This system comes complete with an installation kit enabling it to be connected to 15mm (½”) copper pipe (cold supply only - hot water should be filtered prior to heating). Included is a control valve incorporating backflow prevention, anti hammer, flow control and pressure limiting capabilities in full compliance with the relevant laws. -
Page 5: Typical Installation
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 TYPICAL INSTALLATION Figure 1 • • Angle Stop Valve (Not included) Membrane Housing with 3 Stage Filter (75GPD RO • Membrane) 1/2" Tee with 1/4" Push-In Tube Connector • • Flow Restrictor 1/2"... -
Page 6: Installation Procedure
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 INSTALLATION PROCEDURE Important Note: Do not cut the BLACK tube when installing this system. Find a convenient location: The System dimensions are 360W x 430 H x 320 D (mm), and the tank dimensions are 244 D x 366 H (mm). - Page 7 18. The sediment and chemical removal filters should be replaced every 12 months. The membrane should be replaced when water quality deteriorates or every 36 - 48 months, depending on incoming water quality. Use only genuine AquaCo replacement cartridges and cartridges that are suitable for this appliance.
-
Page 8: Cartridge Installation/Maintenance
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 CARTRIDGE INSTALLATION/MAINTENANCE To change the filter cartridges, adhere to the following procedure. Close 1/2" Tee with 1/4" Push-In Tube Connector (Mains Connector or Shut Off Valve) to prevent water flow. Relieve water pressure by operating faucet lever. -
Page 9: Membrane Service/Maintenance
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 MEMBRANE SERVICE/MAINTENANCE Figure 10 Disengage tubings from the membrane housing cap. Disengage the housing and locate your membrane spanner and open the Membrane Housing. Membrane housing cap can be unscrewed by hand. -
Page 10: Faucet Installation Procedure
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 FAUCET INSTALLATION PROCEDURE Figure 11 – Faucet Installation Diagram Important note: Battery must be replaced when changing cartridges. FAUCET INSTALLATION PROCEDURE 1. Remove the black battery seat from the faucet lever handle (see Figure 13). -
Page 11: Guide To Use Push-In Tube Connectors
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 Red light flashes indicates your cartridges are due to be changed (usage has exceeded 3,000 minutes or 12 months). Please change the battery when changing the cartridges. GUIDE TO USE PUSH -IN TUBE CONNECTORS... -
Page 12: Cartridge Replacement Guide
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 CARTRIDGE REPLACEMENT GUIDE You can obtain replacements from your local AquaCo dealer. To maintain performance, warranty and standards use genuine AquaCo replacements. Figure 16 • Stage: Sediment Filter: PP-925-1 TO MAINTAIN THE HIGH QUALITY OF THE PURIFIED •... -
Page 13: Performance Data Sheet
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 PERFORMANCE DATA SHEET PRODUCT CODE: PP-925-1 SEDIMENT FILTER Micron Rating Triple Gradient: 10 μm (outer), 5 μm (middle), 1 μm (inner) Filter Dimensions 9” x 2.5” Media Type 100% Polypropylene NOTES: THIS CARTRIDGE IS TESTED AND CERTIFIED BY NSF INTERNATIONAL UNDER NSF/ANSI STANDARD 42 FOR MATERIAL REQUIREMENTS ONLY. -
Page 14: Notes
Applicable to all above, is that the Warranties need to be approved by AquaCo to ensure product was not incorrectly used, installed or claimed. -
Page 15: Warranty/Australia
USA Reverse Osmosis Water Filtration System Product Code: SYS-RO925USA5 Use PTFE thread seal tape on all connections. Use of liquid pipe sealant/dope will void warranty. Warranty/Australia This warranty is given by Water Filters Pty Ltd, ABN 68618671677, telephone no. 08 6156 0220 and email at sales@waterfilter.com.au.
