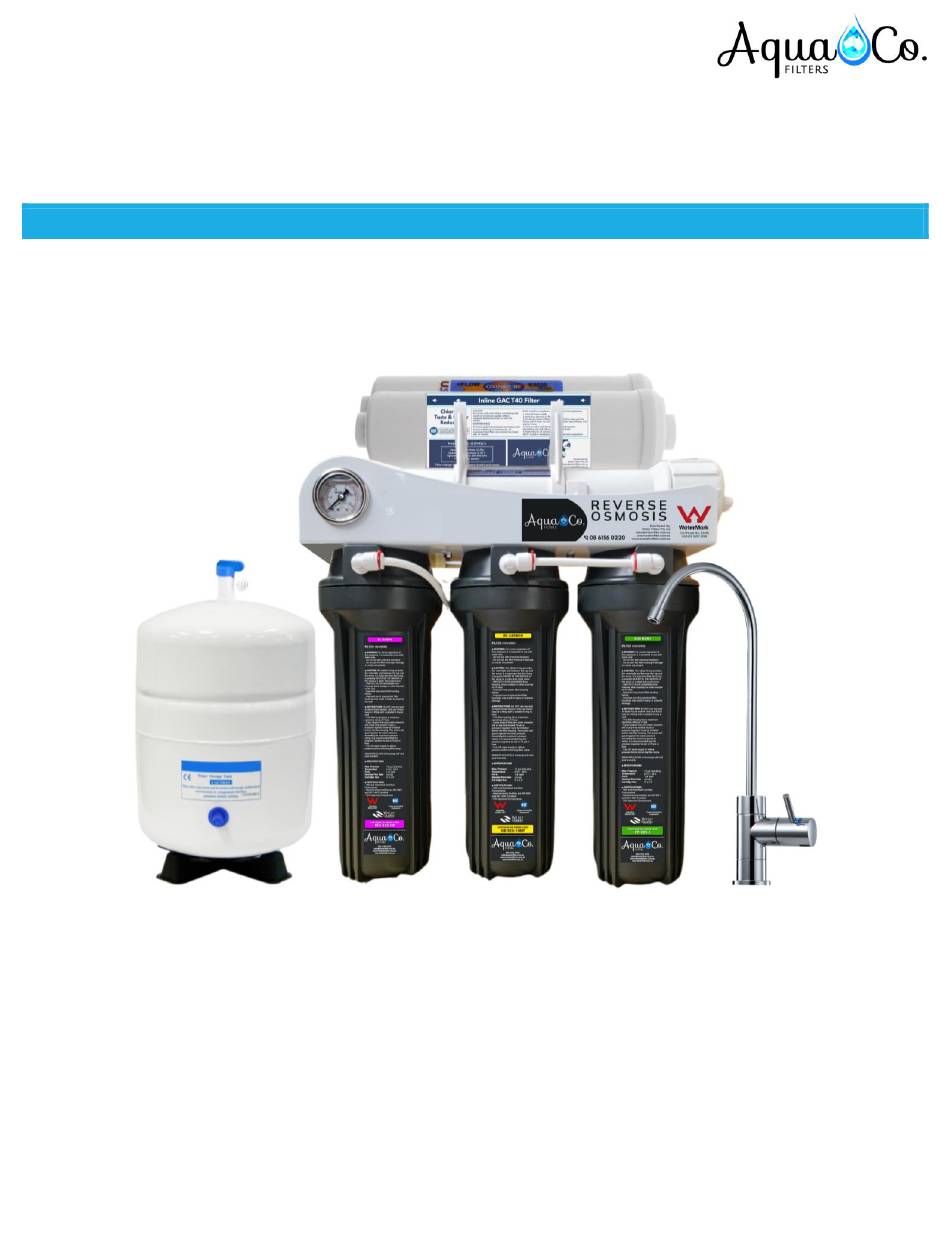

AquaCo Zero TDS Reverse Osmosis Water Filtration System
Product Code:
SYS-RO925TM5-DI
WARNING: For correct operation & installation, it is essential to observe these instructions.

AQUACO ZERO TDS REVERSE OSMOSIS WATER FILTRATION SYSTEM FOR AUTOCLAVE STERILIZERS

Page 1 of 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zero TDS and is the answer not in the manual?

Questions and answers

Related Manuals for AquaCo Zero TDS

Summary of Contents for AquaCo Zero TDS

  • Page 1: Aquaco Zero Tds Reverse Osmosis Water Filtration System For Autoclave Sterilizers

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI WARNING: For correct operation & installation, it is essential to observe these instructions. AQUACO ZERO TDS REVERSE OSMOSIS WATER FILTRATION SYSTEM FOR AUTOCLAVE STERILIZERS Page 1 of 19...

  • Page 2: Table Of Contents

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI CONTENTS AquaCO Zero TDS Reverse Osmosis Water Filtration System For Autoclave Sterilizers ................1 Installation and Operation Manual ................................3 AquaCo Customer Service ..................................3 Operation ....................................... 3 Installation ......................................4 Installation requirements ..................................

  • Page 3: Installation And Operation Manual

    AQUACO CUSTOMER SERVICE Thank you for purchasing an AquaCo reverse osmosis water filter system. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly.

  • Page 4: Installation

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI INSTALLATION This system comes complete with an installation kit enabling it to be connected to ½” copper pipe (cold supply only - hot water should be filtered prior to heating). Included is a control valve incorporating backflow prevention, anti hammer, flow control and pressure limiting capabilities in full compliance with the relevant laws.

  • Page 5: Typical Installation

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI TYPICAL INSTALLATION Figure 1 COMPONENTS • Membrane Housing with 4 Stage Filter (75GPD RO • Angle Stop Valve (Not included) Membrane) • 1/2" Tee with 1/4" Push-In Tube Connector •...

  • Page 6: Installation Images

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI INSTALLATION IMAGES Page 6 of 19...

  • Page 7: Installation Procedure

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI INSTALLATION PROCEDURE Important Note: Do not cut the BLACK tube when installing this system. Find a convenient location: The System dimensions are 480 H x 360 W x 200 D (mm), and the tank dimensions are 279 D x 368 H (mm).
  • Page 8 18. The sediment and chemical removal filters should be replaced every 12 months. The membrane should be replaced when water quality deteriorates or every 36 - 48 months, depending on incoming water quality. Use only genuine AquaCo replacement cartridges and cartridges that are suitable for this appliance.

  • Page 9: Cartridge Installation/Maintenance

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI CARTRIDGE INSTALLATION/MAINTENANCE To change the filter cartridges, adhere to the following procedure. Close 1/2" Tee with 1/4" Push-In Tube Connector (Mains Connector or Shut Off Valve) to prevent water flow.

  • Page 10: Membrane Service/Maintenance

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI MEMBRANE SERVICE/MAINTENANCE Figure 10 Disengage tubings from the membrane housing cap. Disengage the housing and locate your membrane spanner and open the Membrane Housing. Membrane housing cap can be unscrewed by hand.

  • Page 11: Faucet Installation Procedure

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI FAUCET INSTALLATION PROCEDURE Figure 11 – Faucet Installation Diagram Important note: Battery must be replaced when changing cartridges. FAUCET INSTALLATION PROCEDURE 1. Remove the black battery seat from the faucet lever handle (see Figure 13).

  • Page 12: Guide To Use Push-In Tube Connectors

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI GUIDE TO USE PUSH -IN TUBE CONNECTORS Figure 15 USE GUIDELINES • Minimum operating pressure 240 kPa (35 psi) • Maximum operating pressure 600 kPa (85 psi) • Do not allow exposure to temperatures below 0°C.

  • Page 13: Cartridge Replacement Guide

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI CARTRIDGE REPLACEMENT GUIDE You can obtain replacements from your local AquaCo dealer. To maintain performance, warranty and standards use genuine AquaCo replacement filters. Figure 16 AquaCo ZERO TDS Reverse Osmosis Replacement Filters...

  • Page 14: Performance Data Sheet

    AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI PERFORMANCE DATA SHEET PRODUCT CODE: PP-925-1 SEDIMENT FILTER Micron Rating Triple Gradient: 10 μm (outer), 5 μm (middle), 1 μm (inner) Filter Dimensions 9” x 2.5” Media Type 100% Polypropylene NOTES: THIS CARTRIDGE IS TESTED AND CERTIFIED BY NSF INTERNATIONAL UNDER NSF/ANSI STANDARD 42 FOR MATERIAL REQUIREMENTS ONLY.
  • Page 15 AquaCo Zero TDS Reverse Osmosis Water Filtration System Product Code: SYS-RO925TM5-DI PRODUCT CODE: MEM-75GPD REVERSE OSMOSIS MEMBRANE Reverse Osmosis Applied Pressure Permeate Flow Rate Typical Stabilized Element Salt Rejection (%) (psig) (bar) (GPD) (L/h) TW-1812-75NTH 1. PERMEATE FLOW AND SALT REJECTION BASED ON THE FOLLOWING TEST CONDITIONS: 500 PPM NAHCO3 , 77°F (25°C), PH 8.0, 15% RECOVERY AND THE SPECIFIED APPLIED PRESSURE.

  • Page 16: Notes

    WARRANTY Any contract of sale, order, or quotation made or accepted by or on behalf of Water Filters Pty Ltd (trading as AquaCo Filters) is subject to these terms and conditions of sale.
  • Page 17 A failure by the Buyer to submit the said Statement within 28 days, after such request is made by AquaCo Filters, will automatically void the Warranty. • A failure to answer truthfully or to answer in a way that is misleading, entitles AquaCo Filters to void the Warranty and to notify the police in the event of suspected fraudulent conduct. RISK •...

  • Page 18: Price

    • In the case of the Buyer being a natural person, the Buyer commits an act of bankruptcy; then AquaCo Filters may at its option exercise all or any of the following rights (notwithstanding any prior failure to exercise such rights): demand payment of the whole of the monies owing from the Buyer to AquaCo Filters and the Buyer agrees to pay the same immediately.

  • Page 19: Warranty/Australia

    Product Code: SYS-RO925TM5-DI JURISDICTION AquaCo Filters and the buyer agree that this agreement and its provisions shall be construed in accordance with the laws of the State of Western Australia and be resolved by a Western Australian Court. WARRANTY/AUSTRALIA This warranty is given by Water Filters Pty Ltd, ABN 68618671677, telephone no. 08 6156 0220 and email at sales@waterfilter.com.au.
