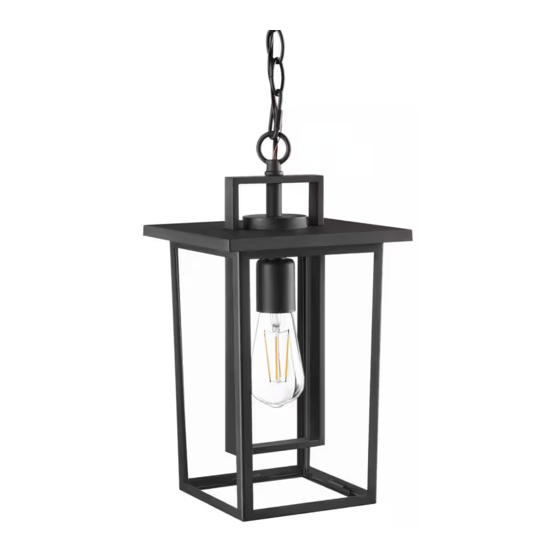

THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this light fixture. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
Table of Contents Table of Contents ............2 Hardware Included ..............3 Safety Information ............2 Package Contents ..............4 Warranty ................. 2 Installation ..............5 Three (3) Year Warranty ............. 2 Care and Cleaning ............9 What is Covered ............... 2 Troubleshooting .............
Pre-Installation PLANNING INSTALLATION □ Read all instructions before installing. □ To avoid damaging this product, place it on a soft, non-abrasive surface, such as carpet or cardboard. IMPORTANT: Inspect the wire insulation for any cuts, NOTE: This product requires one 60W maximum abrasions, or exposed copper that may have occurred medium base (E26) type "A"...
Installation Installing the crossbar assembly Preparing the fixture body □ Unscrew the two mounting screws (3) from the fixture body (B). □ Secure the crossbar assembly (AA) to the outlet box (not □ Remove the cage (2) and the EPE (1) from the fixture body (B) and included) with the outlet box screws (BB).
Page 6
Installation (continued) Installing the fixture chain □ Choose desired hanging length for the light fixture. Suggested mounting height over a table or island is 30 inches from the table/island top to the bottom of the fixture. □ Adjust the fixture chain (FF) to the desired length, removing links if needed.
Page 7
Installation (continued) Supply wire Trimming excess fixture wire and ground wire □ Unthread the canopy lock ring. □ Slide the canopy lock ring and the ceiling canopy (EE) down the quick link (DD). □ Push all slack fixture wire through canopy chain loop and into the outlet box.
Page 8
Installation (continued) Installing the ceiling canopy □ Attach the ceiling canopy (EE) back over the canopy chain loop. Canopy chain loop □ Secure with the canopy lock ring. Canopy lock ring Installing the light bulb □ Install the correct bulb (not included) referring to fixture markings and/or labels for maximum wattage. □...
Check the wire connections. □ Contact a qualified electrician or call the Customer Care Service Team at 1-855-HD-HAMPTON. Service Parts MODEL: DSHD5979E Part Description Crossbar assembly Outlet box screw Wire connector Quick link...
Page 10
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
Page 11
GRACIAS POR TU COMPRA. Apreciamos la confianza que has depositado en Hampton Bay al comprar esta lámpara. Nos esforzamos para continuamente crear productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles para las...
ÍNDICE Índice................2 Aditamentos incluidos..............3 Información de seguridad..........2 Contenido del paquete..............4 Garantía................2 Instalación..............5 Tres (3) años de garantía............. 2 Cuidado y limpieza............9 Lo que está cubierto..............2 Solución de problemas..........9 ¿Qué no está cubierto?..............2 Piezas de recambio............
Antes de la instalación Planificación de la instalación □ Lea todas las instrucciones antes de realizar la instalación. □ Coloque este producto sobre una superficie suave y no abrasiva, como una alfombra o una base de cartón, para evitar dañarlo. IMPORTANTE : Revisa que el aislamiento de los NOTA: Este producto necesita uno bombilla cables no haya sufrido ningún corte, abrasión ni tenga...
Instalación Instalación del Ensamble de la barra Preparación del cuerpo de la lámpara transversal □ Desenrosque los dos tornillos de montaje (3) del cuerpo de la □ Fije la barra transversal (AA) a la caja de salida (no incluida) lámpara (B). con los tornillos para la caja de salida (BB).
Page 16
Instalación (continuación) Instalación del Cadena de la lámpara □ Escoja el largo deseado del soporte para la lámpara. La altura sugerida para colgar el producto sobre una mesa o isla es 76,2 cm desde la parte superior de la mesa o isla hasta la parte inferior de la lámpara.
Page 17
Instalación (continuación) Corte el exceso de cable de la lámpara Conductor de suministro y conductor de tierra □ Desenrosque el anillo de bloqueo de la cubierta. □ Deslice el anillo de bloqueo de la cubierta y la cubierta para techo (EE) por el eslabón de conexión rápida (DD). □...
Page 18
Instalación (continuación) Instalación del Cubierta para techo Enganche de la cadena de la cubierta □ Vuelva a fijar la cubierta del techo (EE) en el enganche de la cadena. □ Asegure con el anillo de bloqueo de la cubierta. Anillo de bloqueo de la cubierta Instalación de la bombilla □...
Contacte a un electricista calificado o llame al equipo de Servicio al Cliente al 1-855-HD-HAMPTON. Piezas de recambio Modelo: DSHD5979E Pieza Descripción Ensamble de la barra transversal Tornillo para la caja de salida Conector de cables Eslabón de conexión rápida...
Page 20
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda, llama al Servicio al Cliente de Hampton Bay, de 8 a.m. a 7 p.m., hora estándar del Este, de Lunes a Viernes, y de 9 a.m. a 6 p.m., hora estándar del Este, Sábados.
