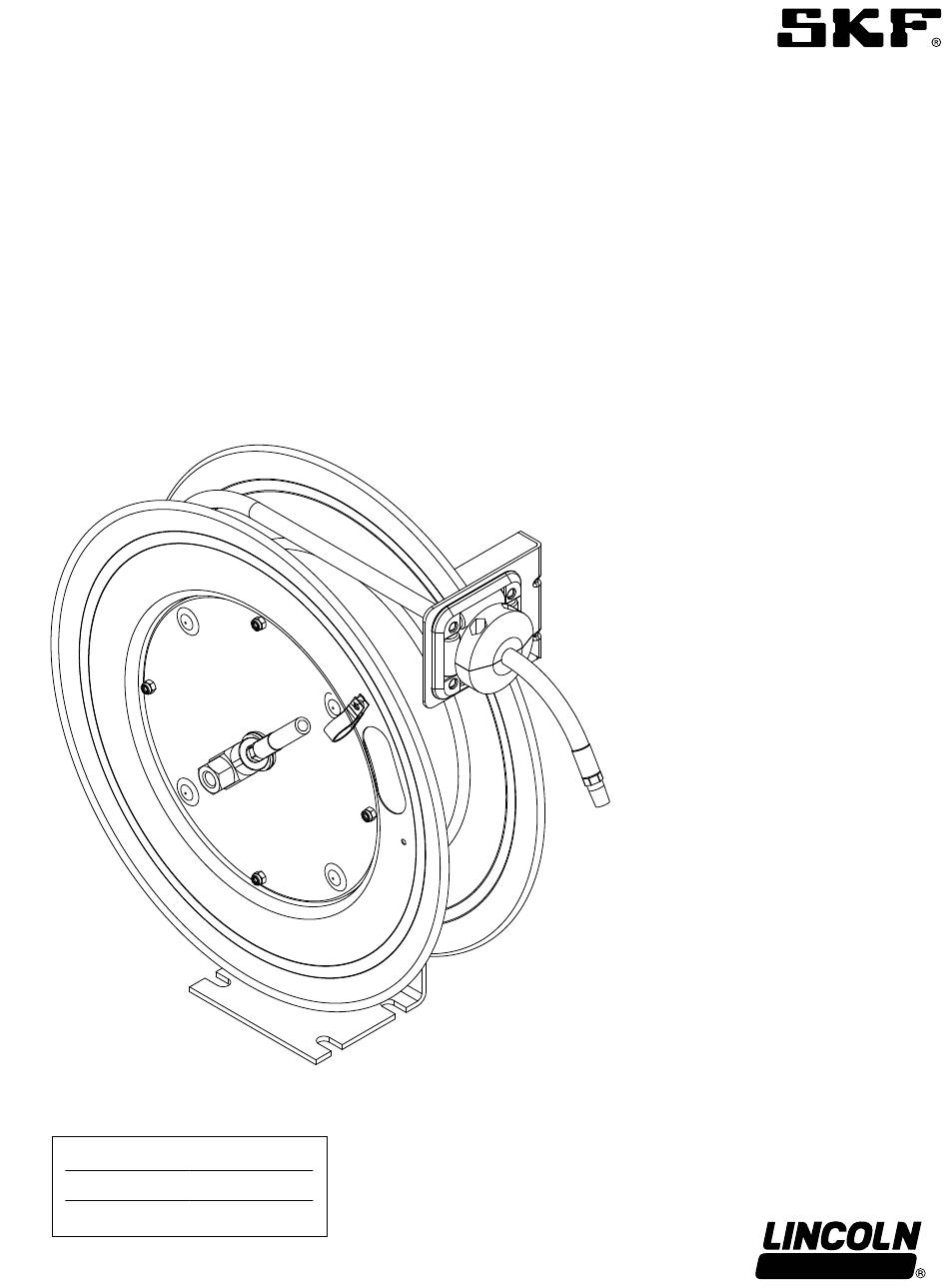

- Page 1 User and maintenance instructions Air and water reels Models 83753 and 83754, series “C” * Date of issue January 2023 Form number 404665 Version Indicates change...
-
Page 2: Table Of Contents
Contents Safety * Explanation of safety signals Dimensions Specifications Mount hose reel Install connecting hose Adjust hose bumper Remove guide arm Position guide arm Replace latch pawl Replace hose Remove hose Install hose Replace swivel Illustrated parts breakdown Warranty Indicates change... -
Page 3: Safety
Safety * Explanation of signal CAUTION Do not operate equipment without words for safety wearing personal protective gear The assembly must be installed, maintained Wear eye protection Protective and repaired exclusively by persons familiar equipment such as dust mask, non-skid with the instructions safety shoes, hard hat, or hearing pro- NOTE... -
Page 4: Dimensions
Fig. 1 Dimensions 20 51 in (520,9 mm) 19 30 in (490.2 mm) 4 72 in (119,8 mm) 2 99 in (75,9 mm) 8 13 in (206,5 mm) Specifications Model Maximum Delivery Weight Delivery hose outlet Connecting hose inlet Maximum operating pressure hose external threads... -
Page 5: Mount Hose Reel
Mount hose reel Fig. 2 Fig. 3 Mounting applications – floor 1 Prior to mounting hose reel, ensure supply line pressure does not exceed maximum working pressure of hose reel 2 Do not exceed maximum installation height of 16 ft (4,8 m) 3 Unpack and inspect reel for damage Turn spool by hand to check for smooth operation... -
Page 6: Adjust Hose Bumper
Adjust hose bumper Fig. 7 Fig. 10 1 Pull out hose until latch pawl engages 2 Loosen slotted screws († fig. 7) 3 Slide bumper to desired position 4 Tighten screws 5 Pull hose to disengage latch pawl 6 Allow hose to retract into reel Remove guide arm 1 Pull out hose until latch pawl is engaged 2 Remove slotted screws holding bumper in... -
Page 7: Replace Hose
Replace hose Fig. 11 NOTE Do not use rigid plumbing Use flexible hose connection at input Remove hose Do not exceed recommended torque 1 Pull out hose leaving of 70 ft lf (94 Nm) 2 to 3 ft (0,6 to 0,9 m) on spool Model 83753 swivel assembly has 2 Engage latch pawl in NPTF internal threads and... -
Page 8: Illustrated Parts Breakdown
Fig. IPB 1 Service parts Model 83753 Model 83754 Item in x 50 ft in x 50 ft Description Quantity (0,37 mm x 15,24 m) (12,7 mm x 15,24 m) Swivel assembly 279135 279136 Nut M6 Snap ring 19 Washer 18 Adjust washer Spring case cover Drive spring assembly... - Page 9 Fig. IPB 2 Service parts continued Model 83753 Model 83754 Item in x 50 ft in x 50 ft number Description Quantity (0,37 mm x 15,24 m) (12,7 mm x 15,24 m) Ratchet and spacer assembly N/A * N/A * Step nut Main shaft spacer Main shaft...
- Page 10 This page intentionally left blank...
- Page 11 This page intentionally left blank...
-
Page 12: Warranty
| lincolnindustrial.com ® SKF and Lincoln are registered trademarks of the SKF Group © SKF Group 2023 The contents of this publication are the copyright of the publisher and may not be reproduced (even...
