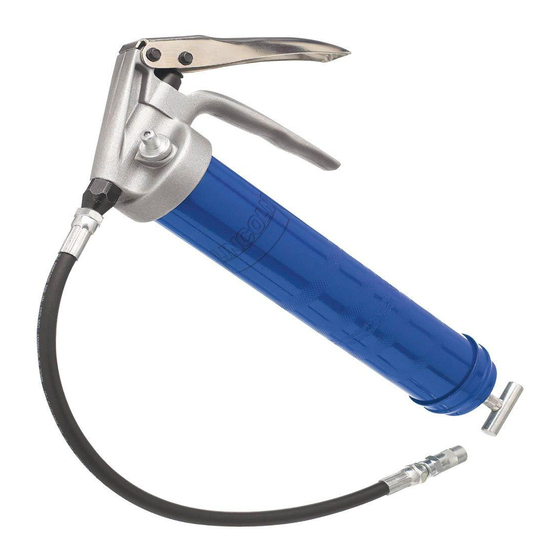

Pistol grip grease gun

Advertisement

Quick Links

Pistol grip grease gun
Model 1134
October 2014
Date of issue
Form number
403681D
Section
D7
Page
60D
D A N G E R
Read manual prior to installation or use
of this product. Keep manual nearby for
future reference. Failure to follow
instructions and safety precautions may
result in death or serious injury.
Installation and maintenance guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINCOLN 1134 and is the answer not in the manual?

Questions and answers

Summary of Contents for SKF LINCOLN 1134

  • Page 1 Installation and maintenance guide Pistol grip grease gun Model 1134 October 2014 Date of issue D A N G E R Form number 403681D Read manual prior to installation or use Section of this product. Keep manual nearby for Page future reference.
  • Page 2 To install a lubricant To convert lever gun to Bulk Capacity - 16 oz. (473 cm³) cartridge Cartridge Capacity - 14 1/2 oz. (429 cm³) allow filling from bulk container or filler 1 Remove head and plunger assembly from container tube. pump 2 To remove an empty cartridge pull back W A R N I N G...
  • Page 3 To expel air pockets To fill lever gun from To fill lever gun with a bulk lubricant filler pump Normally there is no need to bleed air container Engage the plunger rod with the plunger by through the Filler/ Bleeder Valve. The gun rotating the T-handle.
  • Page 4 Steel ball Spring Filler/bleeder O-ring Steel ball valve Check valve Piston Outlet ball spring body O-ring spring Retainer O-ring screw Outlet valve Rivet body Piston Spring keeper Cylinder screw roller Circular clip Piston sleeve Rivet Handle Plunger washer Support washer Rubber plunger Follower boss Plunger spring...
  • Page 5 Troubleshooting Problem Cause Remedy Gun pumps little or no grease. Air lock -- plunger stuck in cartridge. 1) Check condition of cartridge Replace if damaged. 2) ‘Lock” plunger to rod and push plunger into cartridge. Air lock -- Grease too thick or cold. 1) Consult grease supplier.
  • Page 6 Lincoln industrial Special limited 5 year warranty This warranty gives you specific legal limited oil meters, limited fluid control standard warranty rights. You may also have other rights that valves, aod (air-operated diaphragm vary by jurisdiction. pumps) Customers not located in the Western Standard limited warranty Hemisphere or East Asia: Please contact Lincoln warrants the 712 series control...
  • Page 7 This page left intentionally blank.
  • Page 8 Every care has been taken to ensure the accuracy of the information contained in this publication but no liability can be accepted for any loss or damage whether direct, indirect or consequential arising out of the use of the information contained herein. SKF PUB LS/I4 00000 EN.R1 · October 2014 · Form 403681D lincolnindustrial.com...
