- Page 1 User and maintenance instructions (Original) PowerLuber grease gun (lithium ion) 1882E, series “A” Date of issue August 2021 Form number 404666 Version...
-
Page 2: Table Of Contents
Contents Declaration of Conformity* Explanation of signal words for safety Intended use Safety instruction General power tool safety warnings Safety of others Specific safety Residual risks Vibration Labels on battery charger Maintenance Protect environment Safety instructions for battery and charger Save instructions Read all instructions Batteries... -
Page 3: Declaration Of Conformity
The person empowered to assemble the technical documentation on behalf of the manufacturer is the head of standardization; see EC-representative‘s address EC-Representative Manufacturer SKF Lubrication Systems Germany GmbH Lincoln Industrial, 5148 North Hanley Road Heinrich-Hertz-Str 2-8 St Louis, MO 63134 USA... -
Page 4: Explanation Of Signal Words For Safety
Explanation of signal words for safety NOTE Emphasizes useful hints and recommendations as well as information for efficient and trouble- free operation CAUTION Indicates a dangerous situation that can lead to light personal injury or property damage if precautionary measures are ignored WARNING ... -
Page 5: Intended Use
Intended use* 2 Electrical safety 3 Personal safety 2.1 Power tool plugs must match the 3.1 Stay alert, watch what you are PowerLuber is exclusively designed to pump outlet. Never modify plug in any doing and use common sense when and dispense lubricant using 20 V battery way. -
Page 6: Safety Of Others
4 Power tool use and care 5 Battery tool use and care 6 Service 4.1 Do not force the power tool. Use 5.1 Recharge only with the battery 6.1 Have your power tool serviced by a correct power tool for your charger specified by the qualified repair person using only application. -
Page 7: Specific Safety
WARNING be used in a preliminary assessment of Do not use any hose that has not been approved by SKF Extreme pressure may exposure cause nozzle extension or whip hose to burst When assessing vibration exposure to Replace hose at first sign of wear, kinks, or... -
Page 8: Maintenance
Protect environment Maintenance PowerLuber has been designed to operate Do not dispose of Lincoln product with over a long period of time with minimum household waste Make product available maintenance Continuous satisfactory for separate collection operation depends upon proper tool care Local regulations may provide for and regular cleaning separate collection of electrical products... -
Page 9: Safety Instructions For Battery And Charger
Safety instructions NOTE for battery and Do not charge damaged battery Replace immediately charger Save these instructions This manual contains important safety and operating instruction for Lincoln model 1870E battery charger NOTE* Do not expose battery to water or other liquids This may cause premature cell failure ... -
Page 10: Charger
• Do not short across the terminals of the DANGER* battery pack Extremely high temperatures Do not charge SKF model 1871 battery packs with any other charger • Before using a battery charger, read all could cause personal injury or fire... -
Page 11: Electrical Safety
Electrical safety If supply cord is damaged, it must be replaced by manufacturer or authorized Lincoln service center in order to avoid hazard Tool use and care • Do not continue to hold down trigger if grease gun is stalled This could damage motor or cause fire •... -
Page 12: General Description

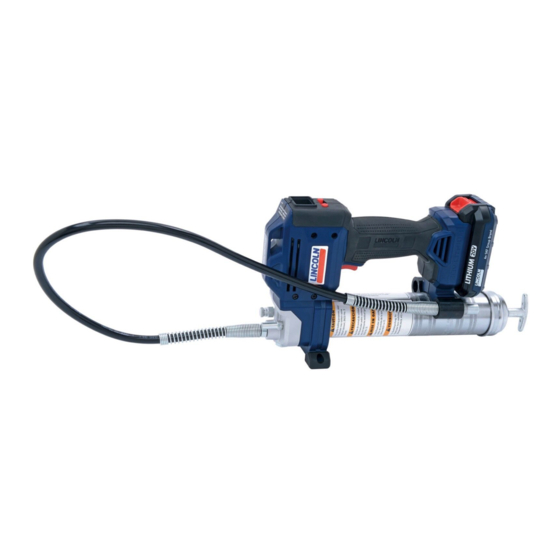

Description Specifications Basic PowerLuber model 1880 Lincoln PowerLuber is a lithium-ion battery operated grease gun Gun was developed for Operating power 14 5 to 20 V DC manual lubrication of grease points and Maximum operating pressure Low output 6 000 psi (413 bar) includes light emitting diode (LED) and High output 6 000 psi (413 bar) -
Page 13: Inspection
Inspection Fig. 1 1880 Grease gun Visually inspect for damaged, loose or missing parts If equipment is worn or damaged, remove from service Contact an authorized service center for damage assessment or repair Operation Speed selection Pressing button 2 switches the tool between high and low pump speed The letter “L”... -
Page 14: Grease Flow Monitoring
Grease flow Fig. 3 NOTE monitoring Air pockets in cartridge lubricant will cause gun to lose prime causing grease output measurements and cartridge • LCD shows output of grease delivered in level readings to be inaccurate ounces or grams • Change unit of measure to ounces or grams by holding button “1”... -
Page 15: Filling Gun From Bulk Container
Filling gun with filler pump Filling gun from bulk NOTE container Remove air pocket! Air pocket at grease 1 Engage follower rod with follower by inlet will prevent grease from 1 Remove pump assembly from grease rotating follower handle being pumped Unscrew the vent valve tube assembly 2 Insert gun bulk fill valve into filler three to four turns to remove small air... -
Page 16: Charger Operation
Charger operation Fig. 4 Indicator light operation Charging battery Pack charging....pack Fully charged....Replace pack....Problem power line..Hot/cold pack delay..Before using PowerLuber first time, battery pack should be fully charged If battery pack is installed in PowerLuber, remove and follow charging procedure Lincoln chargers are designed to charge NOTE... - Page 17 Important charging WARNING notices Do not allow any liquid to get inside charger Electric shock may result To facilitate cooling of battery pack Longest life and best performance can be after use, avoid placing charger or obtained if the battery is charged when the battery pack in a warm environment air temperature is between 65 and 75 °F such as a metal shed or an non-...
-
Page 18: Exploded View
Fig. IPB 1... - Page 19 Fig. IPB 2 7 16 - 28 Positive (red) wire must be connected to the positive terminal on the motor Small plastic dot identifies the positive terminal...
-
Page 20: Service Parts List
Service parts list Item Description Part number Flexible hose 36 in(914 mm) with gasket 1236 Coupler 5852 Coupler (European) 251-10124-7S* Packing 34793 Follower assembly kit 272072 Grease tube assembly 271882 Gasket kit (hose) 260322* Coupler cap kit 286419 Electrical components kit 280095 Decal kit 280068... -
Page 21: Troubleshooting
Troubleshooting Condition Possible cause Corrective action PowerLuber fails to dispense grease Grease tube assembly is out of grease Check that grease tube assembly has grease Loss of prime Repeat priming operation Ball check (14) is not functioning Remove ball check (14), clean and inspect ball seat area Clogged whip hose Clean or replace whip hose... - Page 22 This page left intentionally blank...
- Page 23 This page left intentionally blank...
-
Page 24: Warranty
| lincolnindustrial.com ® SKF and Lincoln are registered trademarks of the SKF Group © SKF Group 2021 The contents of this publication are the copyright of the publisher and may not be reproduced (even...
