Summary of Contents for Bertazzoni REF24PR

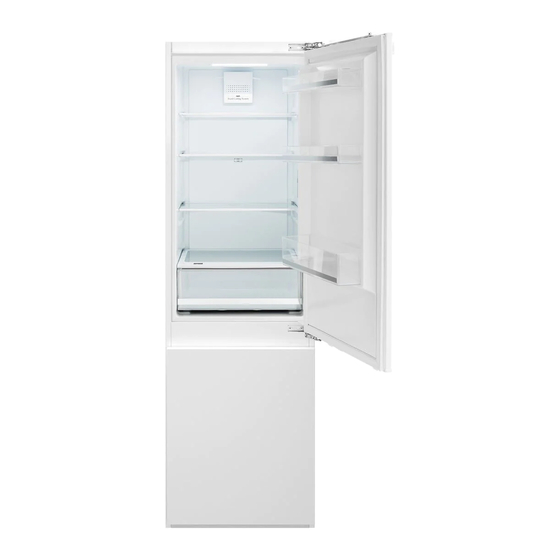

  • Page 1 Built-in Refrigerator REF24PR...

  • Page 2: Table Of Contents

    C O N T E N T S 1 Safety warnings Warning·············· ·························· 1.2 Meanings of safety warning symbols· · · · · · · · · · · · · · · · · · · · · · · · · ·2 1.3 Electricity related warnings·...

  • Page 3: Safety Warnings

    1 S a f e t y w a r n i n g s 1 . 1 W a r n i n g Warning : risk of fire / flammable materials RECOMMENDATIONS： This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments;...

  • Page 4: Meanings Of Safety Warning Symbols

    Meaning of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;...

  • Page 5: Warnings For Using

    1.4 War nings for using Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

  • Page 6: Warnings For Disposal

    Do not store beer, beverage or other fluid contained in bottles or Freezing chamber enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 War nings for energy 1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.

  • Page 7: Placement

    2 Proper use of refrigerators 2.1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
  • Page 8 9 in 42 in 80 in 7 in 7 in 27 in 22 in 31 sq.in Push the refrigerator into the cabinet and adjust it to make sure the edgefold of top baffle completely touch the top edge of the cabinet, and the Stopper bracket of supporting leg completely touch the bottom edge of the cabinet.
  • Page 9 Fix the top baffle to the top of the cabinet inner with screws, then install the screw caps. Screw Screw cap Open the lower door of cabinet the maximum angle, and open the lower door of the refrigerator to the corresponding position.

  • Page 10: Door Right-Left Change

    Door Right-Left Change List of tools to be provided by the user Putty knife Cross screwdriver thin-blade screwdriver ″ 5/16 Masking tape socket and ratchet 1)Power off the refrigerator, and remove all objects from the door trays. 2)Remove the upper hinge and hole caps of refrigerator door. upper hinge hole caps 3)Remove the refrigerator door, the middle hinge and the hole cover.
  • Page 11 3)Exchange the R:bottom hinge and R:upper hinge ,then install them according to below steps, and install the top hole caps. Remove the two fixed blocks and rotate them for 180°， of refrigerator door and install them on other side of refrigerator door hole caps R:upper hinge...
  • Page 12 7)Exchange the F:bottom hinge and F:upper hinge ,then install them according to below steps, and install the top hole cover and lower hole caps. Remove the two fixed blocks of freezer door and rotate them for 180°， and install them on other side of freezer door hole cover bottom hinge...

  • Page 13: Changing The Light

    Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. 2.4 Starting Before initial start, keep the refrigerator still for half an hour before connecting it to power supply. Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

  • Page 14: Key Components

    3.1 Key components LED lighting Door tray Shelf Temperature- control panel Fruits and vegetables box Storage box Drawer （The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor） Refrigerating chamber The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed...

  • Page 15: Functions

    3.2 Functions ① ② ③ ④ （The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor） 1)Key A.Temperature setting button of refrigerator compartment 2)Display screen ①setting 1：46 ②setting 2：43 ③setting 3：39 ④setting 4：36 3)Display...
  • Page 16 6)Power off function ① entry mode: In the unlocking state, set the key SET for 10S (when the display and control of the refrigerator are all off, the SET button will take effect when the key is released). After 30S, the refrigerator will enter the power off function mode, all loads are turned off, and the display and control of the refrigerator will be all off in the power off mode.

  • Page 17: Maintenance And Care Of The Refrigerator

    4. Maintenance a nd care of the refrigerator 4.1 Overall cleaning Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning.

  • Page 18: Trouble Shooting

    5 Trouble shooting 5.1You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Check whether the appliance is connected to power or whether the plug is in well contact Failed operation Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped...

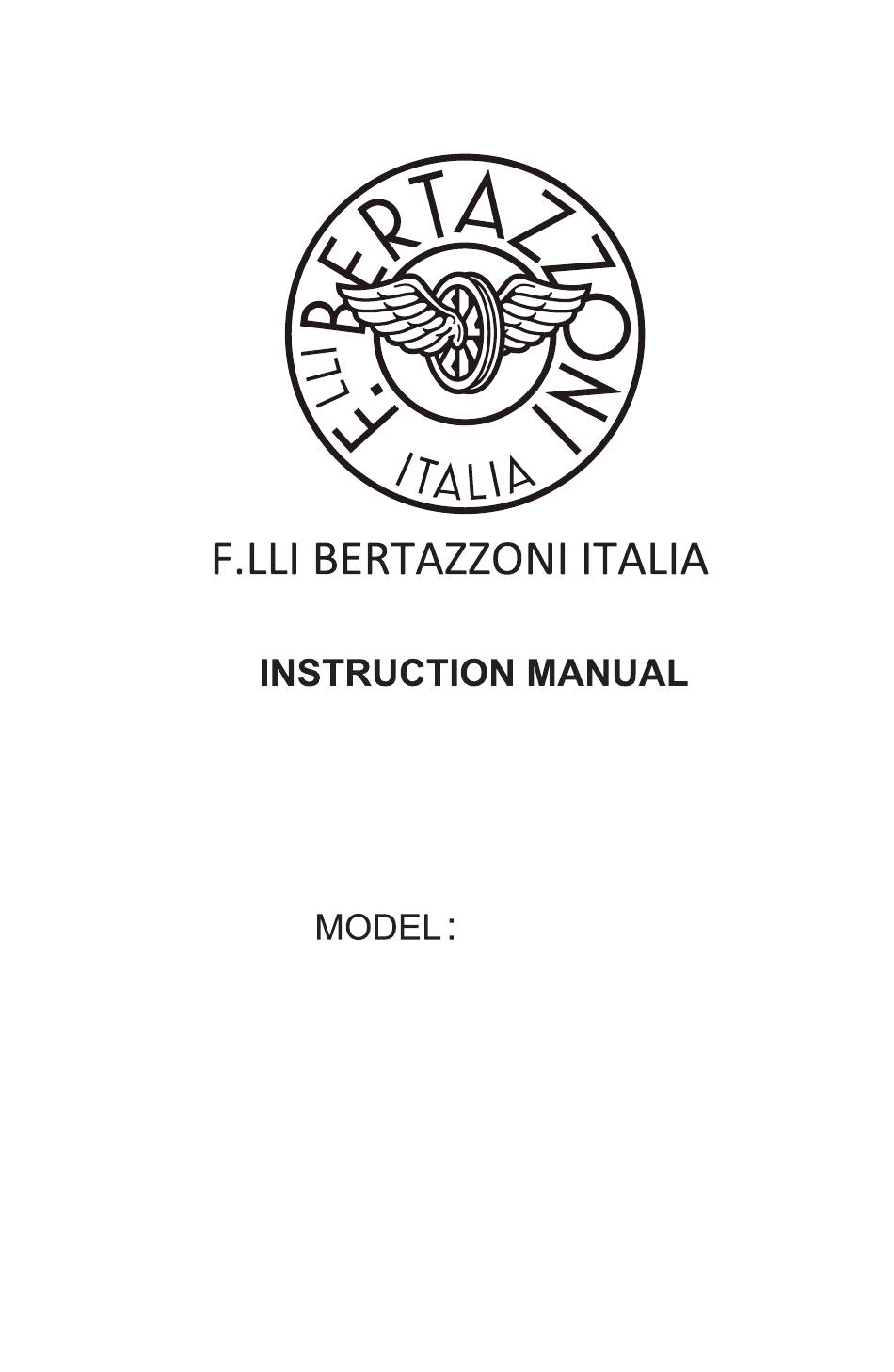

  • Page 19 F.LLI BERTAZZONI ITALIE MANUEL D'INSTRUCTIONS Réfrigérateur encastrable MODÈLE: REF24PR...
  • Page 23 1.4 Avertissements pour l'utilisation • Ne pas désassembler ou reconstruire arbitrairement le ré frigé rateur, ni endommager le circuit de ré frigé rant; l'entretien de l'appareil doit ê tre fait par un spé cialiste • Le câble d'alimentation endommagé doit être remplacé par le fabricant, son service de maintenance ou ses professionnels associé...
  • Page 25 180°...
  • Page 26 9 in 42 in 80 in 7 in 7 in 27 in 22 in 31 sq.in...
  • Page 27  Fixer le déflecteur du haut vers le haut de l’armoire intérieure avec vis, puis installez les cache-vis. Bouchon à vis  Ouvrez la porte inférieure de l’armoire l’angle maximal et ouvrez la porte inférieure du réfrigérateur à la position correspondante. Le patin pour rendre le bord intérieur bien sûr s’aligner sur le bord infé...
  • Page 28 2.3 Changement du Porte droite-gauche Liste des outils né cessaires pour ces travaux Tournevis à lame fine Tournevis en croix un couteau à mastic 5/16 ″ Ruban adhé sif de Cliquet masquage Mise hors tension du ré frigé rateur et retirez tous les objets dans les plateaux de la porte. Retirez la porte du ré...
  • Page 29 3) Echanger la charniè re de la R: charniè re infé rieure et la R: charniè re supé rieure, puis installez-les selon procé dure ci-dessous et installez les capuchons de trou supé rieur. 4) Retirez les deux blocs fixes de porte du ré frigé rateur et les tourner de 180° et installez-les sur l’autre côté...
  • Page 30 7) Echanger la charniè re de la F: charniè re infé rieure et la F: charniè re supé rieure, puis installez-les selon é tapes ci-dessous et installez le cache de l’orifice supérieur et inférieur. 8) Retirez les deux blocs fixes de porte du congé lateur et faire pivoter de 180° et les installer sur l’autre côté...
  • Page 32 3Dé signation et fonctions 3.1 Composants clé s LED clignotant Balconnet de porte Clayette Panneau de contrô le de la tempé rature Boî te à fruits et lé gumes Boî te de rangement Tiroir (L'image ci-dessus est seulement pour indication. La configuration ré elle dé pendra du produit physique ou de la dé...
  • Page 33 ① ② ③ ④...
  • Page 34 6) Contrôleur des fonction d'attente ①mode d'entrée : Dans la l'état déverrouillé, définir la clé de SET à 10S (lorsque l'affichage et la commande du réfrigérateur tout, le bouton de veille fonctionnera lorsque le bouton est relâché). Après 30S, le réfrigérateur vient de la manière de soin et de l'affichage fonction et la commande du réfrigérateur seront tous hors de la mode d'attente.
