VersaTables FBC Assembly Instructions Manual page 8

Assembly
Step 7

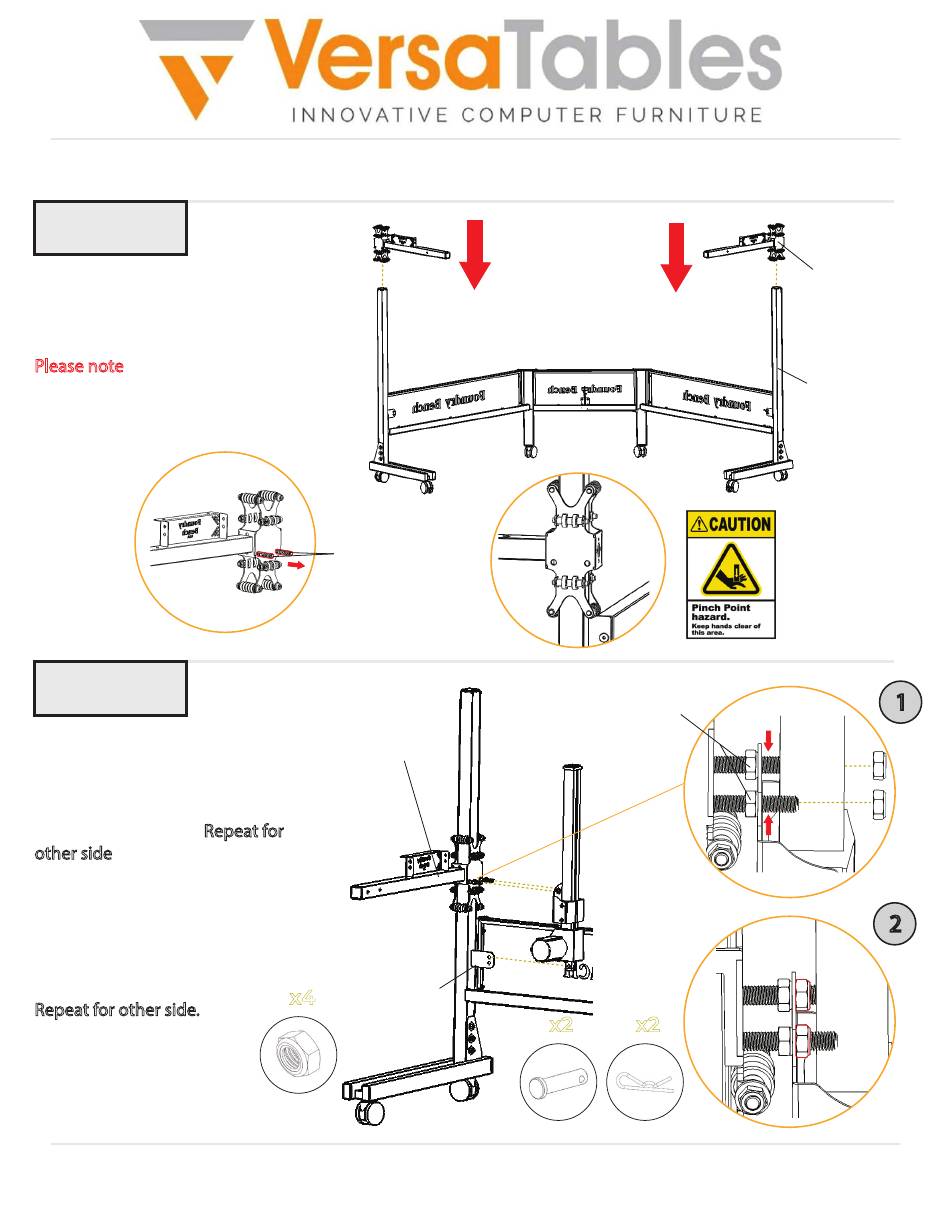

Slide (2) Moving Beams down the Leg
Uprights until the beams touch
the Back Panel as shown.
Please note: Make sure the pre-
installed bolts are pointing
inward towards the center of the
bench.
Step 8
Align the Actuator with both the
Moving Beam and Leg Upright
as shown. First , you will place (2) Hex
Nuts through the pre-installed bolts
on the Moving Beam. Repeat for
other side.
Then, you will attach the bottom
of the Actuator to the mounting
bracket on the Leg Upright.
To do this, you will use (1) Clevis
Pin and (1) Cotter Pin as shown.
Repeat for other side.
Reference on Step 9.
