Assembly

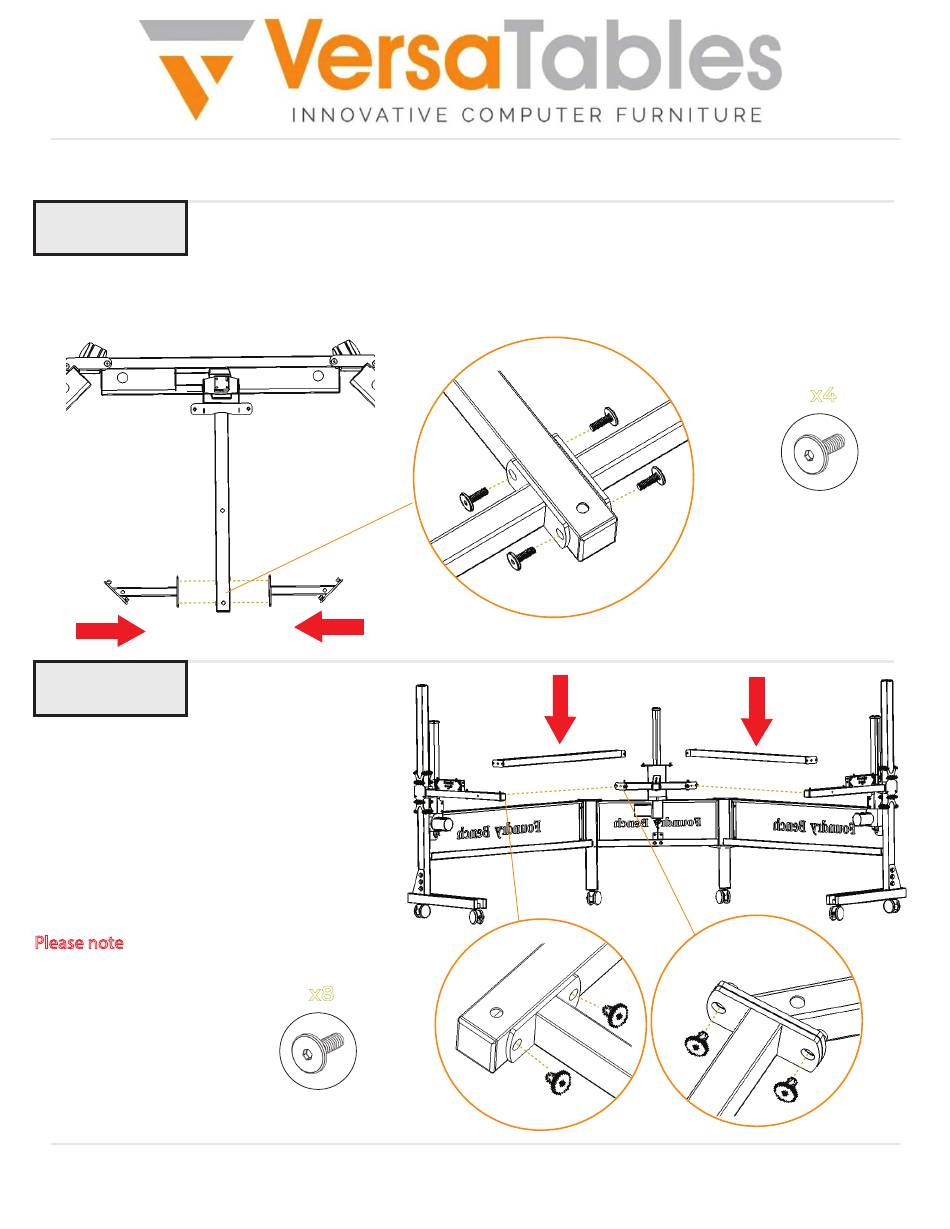

Step 11
Attach (2) Short Cross Supports to the end of the Center Beam using
(4) 20mm Furniture Bolts as shown.
Step 12
Place (2) Long Cross Supports
in between the Moving Beams
and Short Cross Supports as
shown.
code-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202
Then, use (8) 20mm Furniture
Bolts to fasten all of the cross
supports together.
Please
note: Do NOT fully tighten
these screws until the entire
frame is set up.
