Assembly

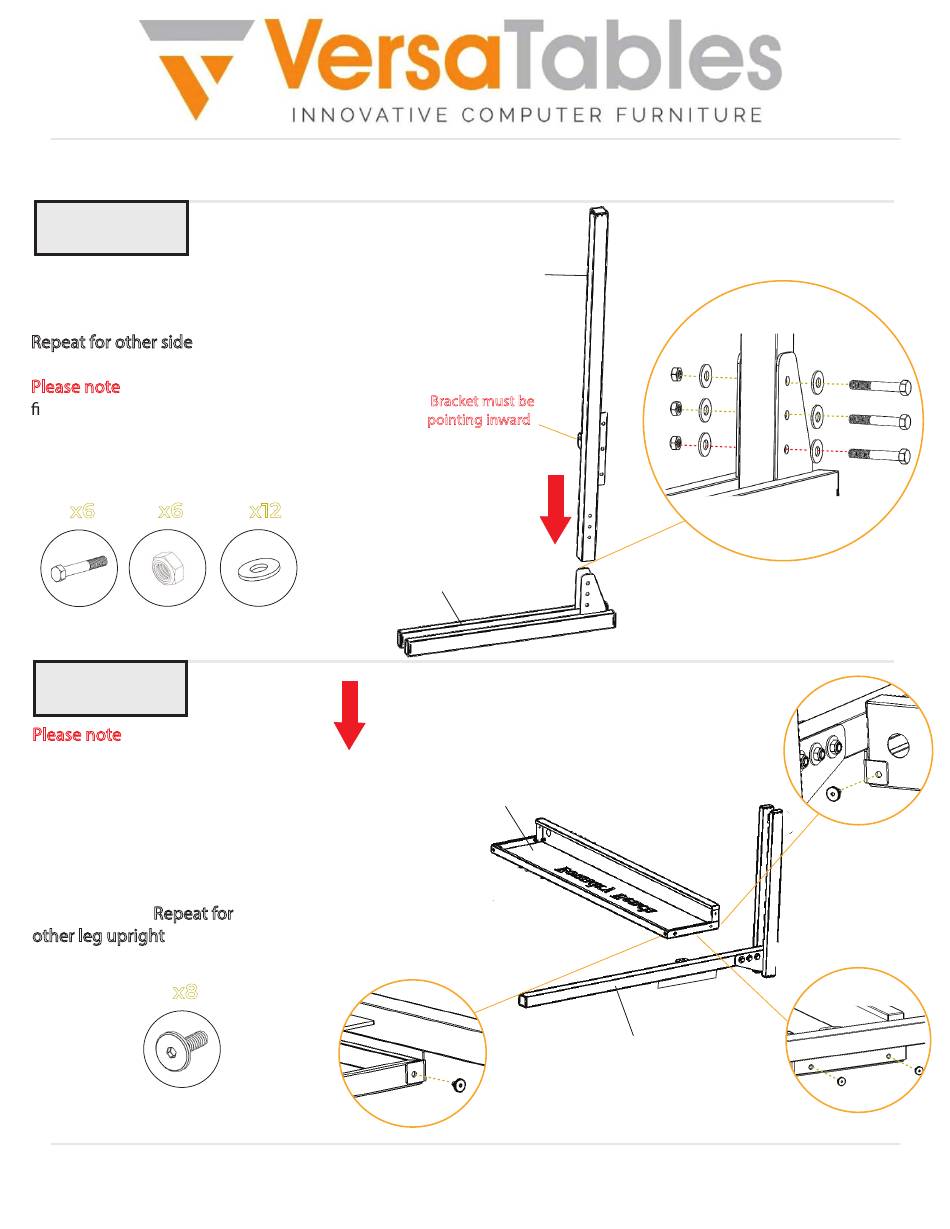

Step 1
Attach the Leg Upright to the Foot using
(3) 3/8-16 x 2 1/2 Hex Bolts, (3) 3/8-16 Washers
and (3) 3/8-16 Hex Nuts as shown.
Repeat for other side.
Please
note: Insert the bottom Hex Bolt
rst and secure it with the nut. Then,
move your way up and tighten all bolts
at the end.
x6
x6
3/8-16 x 2 1/2
3/8-16 Hex
Hex Bolt
Nut
Step 2
Please
note: We highly recommend
that you place a cardboard or soft
material beneath the parts in this
step to avoid damage from scraping.
ps://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=How%
#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barco
o%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in
0Zenstores.
the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores.
.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=How%20to%20con gure%
https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-lab
Place the Leg Upright on the ground
as shown. Then, attach the Back Panel
to the upright using (4) 12mm
Furniture Bolts. Repeat for
other leg upright.
x8
12mm Furniture Bolt
14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109
Leg Uprights
x12
3/8-16 Washer
Back Panels
https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-r
Leg Upright
Bracket must be
pointing inward
Foot
Back Panel
www.Versatables.com
Leg Upright
