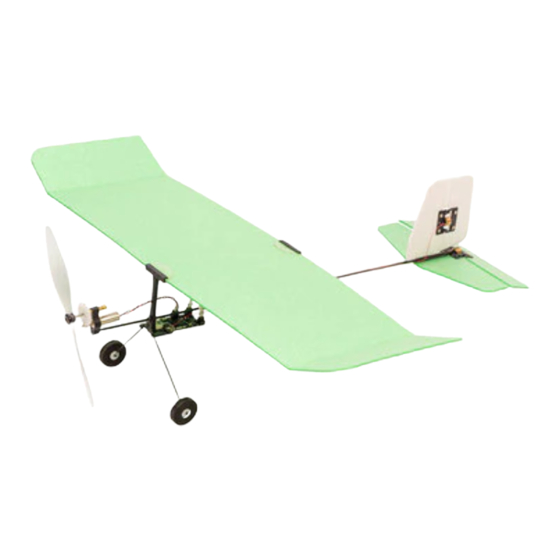

Dancing Wings Hobby ICECREAM E23 Instruction Manual

ICECREAM
Mini Indoor Airplane
配件图仅做参考用，您收到的实物可能因为修改/优化的原因导致与图片有略有不同。
散件编号 KIT Number
Photos shown here just for reference, the product you received maybe slightly
differ from the photos due to continuous improvement on products.
A1
A1
C

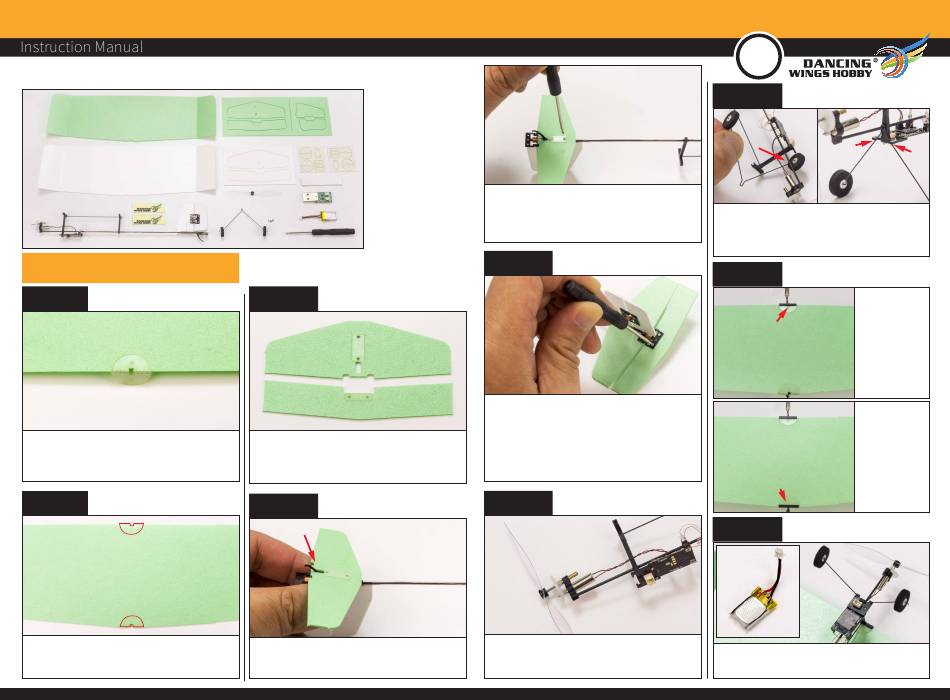

拼装步骤 How to Assemble
Step 1
A1
从B上撕下上图加强片，对齐机翼槽口粘贴加强片。
Remove the above reinforcement sheet from the
B,and align the wing slot with the reinforcement
sheet.
Step 2
机翼上下均粘贴加强片。
Paste the reinforcement sheet onto the upper and
lower wing.
A3
A1：机翼 Wing
A2
A2-A3：尾翼 Tail
B：背胶加强片
Adhesive Reinforcement Sheet
C：机身 Fuselage
B
A2
D：桨叶 Propeller
E：魔术贴 Magic Sticker
F：起落架 Landing Gear
E
G：螺丝 Screw
I
D
H：螺丝刀 Screwdriver
F
I：充电器 Charger
J
G
J：电池（选配）
Battery (Optional)
H
Step 3
A2
从A2上取下水平尾翼，对齐空位粘贴加强片，加强片从B
上取下。
Remove the horizontal tail from the A2, align the
vacant space with the reinforcement sheet, and
remove the reinforcement sheet from the B.
Step 4
把尾翼穿入C机身尾部滑橇，注意加强片朝向。
Insert the tail into the tail of the C fuselage, pay
attention to the orientation of the reinforcement.
然后用G 1X3螺丝锁定尾翼，螺丝拧入时锁定即可，请勿
过度拧入挤压，导致板材变形。
Lock the tail with the G 1X3 screws,It can be easily
locked when screwed in,Do not over-tighten the
screw, resulting in deformation of the plate.
Step 5
把机身翻转到另一面，用G 1x3螺丝固定升降舵与舵机摇
臂（此处升降舵粘贴的加强片在背面），请勿过度拧入螺
丝，导致板材变形。
Turn the fuselage to the other side, and fix the
elevator and servo arm by the G 1x3 screw(here the
reinforcement sheet for elevator is on the back). Do
not over-tighten the screw, resulting in deformation
of the plate.
Step 6
D
在机身头部插入桨叶。
Install the propeller at the head of the fuselage.
E23
Step 7
穿过
卡入
F
安装起落架，先一端穿过马达线，然后卡入底座卡槽。
如上图。
Install the landing gear with the one end through
the motor cable and then snap into the base slot as
shown above.
Step 8
安装机翼到机身， 先
固定一端， 槽口对准
翼台卡槽卡入。
Install the wing
onto the fuselage,
firstly fix one end,
then the notch is
aligned with the
wing card slot.
然后轻捏机翼中段，
使翼面向上凸起， 另
一端槽口对准翼台卡
入。
Then gently pinch
the middle of the
wing so that the
wing is convex
upwards,and the
other end is
aligned with the
wing.
Step 9
裁剪合适的魔术胶贴，一面粘在底座，一面粘在电池上。
Cut the appropriate magic sticker, one side sticks to
the base and the other side sticks to the battery.
