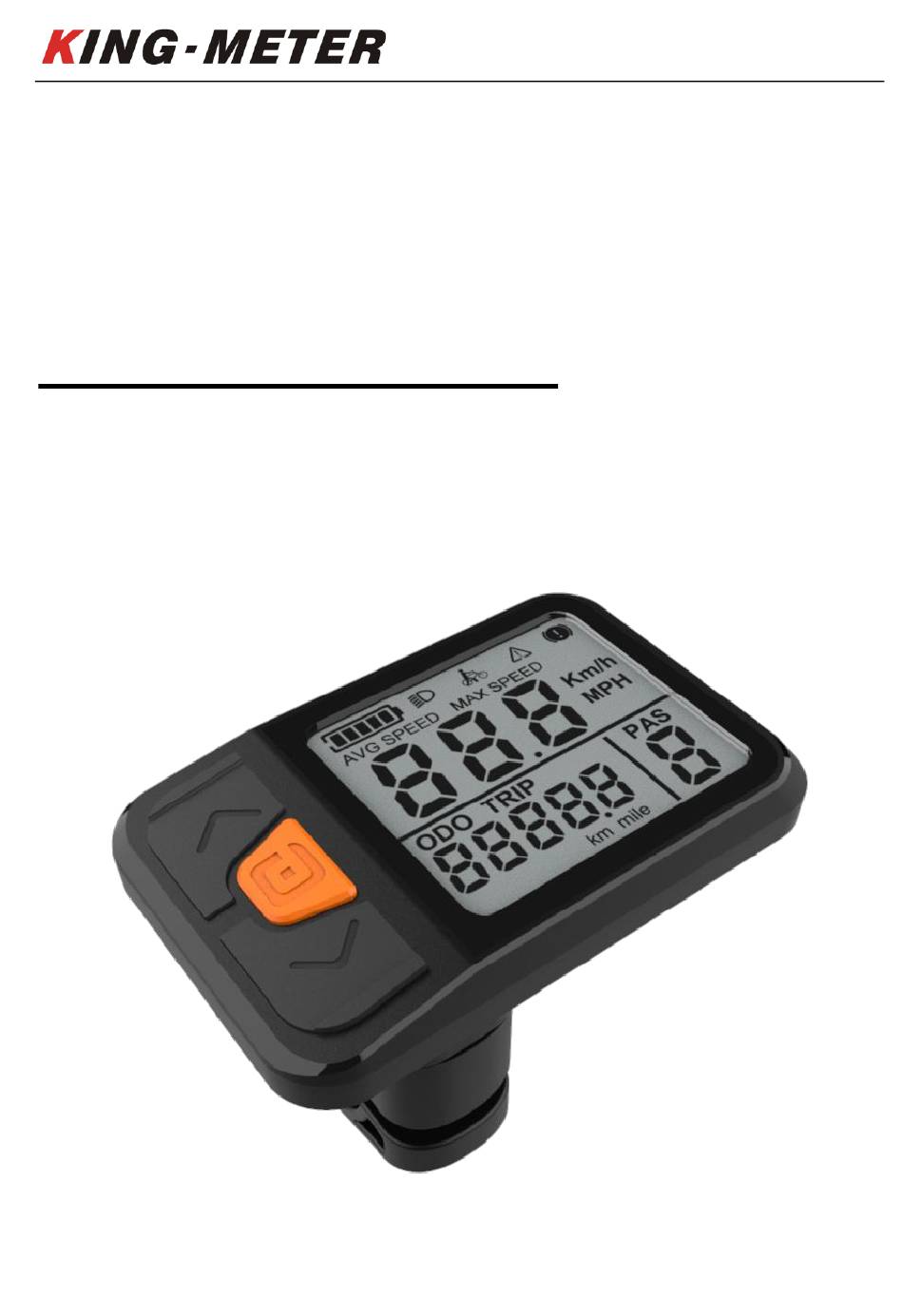

- Page 1 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 USERS GUIDE K5317 LCD...
-
Page 2: Table Of Contents
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Preface................................. - 4 - 1. Appearance and Dimensions ........................- 5 - 1.1 Material and Color ..........................- 5 - 2. Function and Button Definition ....................... - 6 - 2.1 Function description ......................... - Page 3 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 6.8 Assisted drive mode setting ......................- 15 - 6.9 Power Assistance sensitivity setting ....................- 16 - 6.10 Start power strength setting ......................- 16 - 6.11 Magnetic steel number of disc setting ..................
-
Page 4: Preface
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Preface Dear user, to ensure better performance of your e-bike, please read through the K5317 product introduction carefully before using. We will use the most concise words to inform you of all the details (including the hardware installation, setting and normal operation use of the display) when using our display. -
Page 5: Appearance And Dimensions
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 1. Appearance and Dimensions 1.1 Material and Color K5317 products are made of black and white PC. Under the temperature of -20 to 60℃, the shell material can ensure normal usage and good mechanical performance. -
Page 6: Function And Button Definition
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 2. Function and Button Definition 2.1 Function description K5317 provides you with a variety of function modes, to meet your riding needs. -
Page 7: Note For Users
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 3.Note for Users Be care of the safety use. Don’t attempt to release the connector when battery is on power. Try to avoid hitting. -
Page 8: Normal Display Interface
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 If the e-bike is not used for more than 10 minutes, the display will automatically shut down. 5.2 Normal display interface Normal display interface 5.3 Walk Assist Mode... -
Page 9: Pas Level Selection
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Walk assist mode interface Walk Assist function can only be used as pushing the E-bike by hands. Please don’t use this function when riding. -
Page 10: Speed/Single Trip Distance/Odo
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Undervoltage Indicator Full power Indicator 5.6 Headlight On/Off Press and hold “UP” button for 2 seconds to turn on the backlight of the display, and the controller will be informed to turn on the headlight. -
Page 11: Real-Time Speed,Trip Interface
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.7.2 Real-time speed, Trip interface Short press 【MODE】button, the display switch to show the Real-time speed and Trip. Real-time speed,Trip interface 5.7.3 Average speed, Max speed interface... -
Page 12: Normal Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Error indicator Only after the fault is eliminated, the error code interface can be cleared, the E-bike will not be able to ride when error code occurs. -
Page 13: Display Unit Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Backlight brightness setting interface 6.2 Display Unit Setting Short press “MODE” button to enter the setting option. The setting parameters are Km/h and Mile/h. -
Page 14: Wheel Size Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Automatic power-off time setting interface 6.4 Wheel size setting Settable values from 16-28 inch (increase or decrease by 0.5). Select the wheel size by press UP and DOWN to ensure the accuracy of the speed display and mileage display. -
Page 15: Speed Sensor Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 6.6 Speed Sensor Setting Speed Sensor Setting, The setting parameters can be selected from 1to6. The default speed magnet number is 1. The number of magnets can be selected by pressing the UP and DOWN buttons. Long press “MODE”... -
Page 16: Power Assistance Sensitivity Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Assisted drive mode interface 6.9 Power Assistance sensitivity setting Power Assistance sensitivity setting, The default value is 3.It can be selected from 1 to 24 by pressing the UP key and the DOWM button. -
Page 17: Magnetic Steel Number Of Disc Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Start power strength setting interface 6.11 Magnetic steel number of disc setting The default 8 means that the number of magnetic steels on the disk is 8, It can be selected 5, 8 or 12 by pressing the [UP] and [DOWM] button. -
Page 18: Pas Level Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Current limit setting interface 6.13 PAS Level Setting PAS level setting interface, the default 0-5 means that the minimum PAS level is 0 and the maximum is 5, by pressing the UP and DOWM button, it can select 0-3, 1-3, 0-5, 1-5, 0-7, 1-7, 0-9, 1-9. -
Page 19: Preparation Before Startup
9.Quality Assurance and Warranty Scope I, Warranty Information: 1, King-Meter will be responsible for all faults arising during normal operation that are caused by a quality defect. 2, The warranty time is 24 months from the day the display leaves the factory. - Page 20 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 2, Connector damaged. 3, After display out of factory, the shell is scratched or damaged. 4, Lead wire of display scratch or break.
-
Page 21: Appendix 1： Error Code Definition
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Appendix 1： Error Code Definition Error Code Definition Current Abnormal Throttle Abnormal Motor phase problem Motor Hall defect Brake Failed Abnormal Communication... - Page 22 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134, CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 KING-METER - 22 -...
